- Page 1 Signamax™ Connectivity Systems 100BaseTX/FX to 100BaseFX Converter Series ’...
- Page 3 Signamax™ Connectivity Systems 100BaseTX/FX to 100BaseFX Converter Series User’s Guide...
-
Page 4: Fcc Warning
Product names mentioned in this manual may be trademarks or registered trademarks of those products and are hereby acknowledged. Ethernet is a trademark of Xerox Corporation. Microsoft Windows is a trademark of Microsoft Corporation. Signamax™ is a trademark of Advanced Electronic Support Products, Inc. User’s Manual... -
Page 5: Preface
™ Signamax 10/100TX to 100FX Media Converter Preface This manual describes how to install and use the Signamax™ Ethernet Media Converter. The Signamax™ Ethernet Media Converter introduced here provides one channel media conversion between 10/100BaseTX and 100BaseFX. The Signamax™ Ethernet Media Converter fully complies with IEEE802.3 10BaseT and IEEE802.3u 100BaseTX/FX... -
Page 6: Table Of Contents
™ Signamax 10/100TX to 100FX Media Converter Table of Contents FCC W ............. 1 ARNING CE M ............ 1 ARNING ............... 1 RADEMARKS ............... 2 REFACE ............ 3 ABLE OF ONTENTS ............. 4 NTRODUCTION ..........4 RODUCT VERVIEW ..........5 RODUCT EATURES ............5... -
Page 7: Introduction
™ Signamax 10/100TX to 100FX Media Converter Introduction The media converter provides one channel for media conversion between 10/100BaseTX and 100BaseFX. It can be used as a stand-alone device or with a standard 19” chassis as shown below. Product Overview <NOTE>... -
Page 8: Product Features
™ Signamax 10/100TX to 100FX Media Converter Product Features One-channel media conversion between 10/100BaseTX and 100BaseFX Fiber media allows: Multi-mode fiber using SC, ST, VF-45, MT-RJ or LC connector Single-mode fiber using SC or ST connector WDM single-fiber (bi-direction) transceiver: Single-mode WDM fiber uses... -

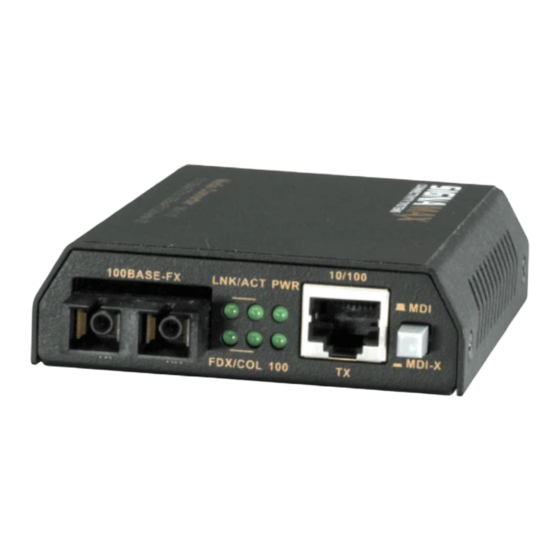

Page 9: One-Channel Media Converter
™ Signamax 10/100TX to 100FX Media Converter One-Channel Media Converter Ports The Converter provides one TX port and one FX port. For the FX port, it provides options of multi-mode fiber using SC, ST, VF-45, MT-RJ or LC connector, single-mode fiber using SC or ST connector, and WDM single-fiber (bi-direction) transceiver using SC connector. -
Page 10: Front Panel & Leds
™ Signamax 10/100TX to 100FX Media Converter Toggle down Pin 3 to force the TX port at the speed of 100Mbps. Or toggle up Pin 3 for 10Mbps speed. Toggle down Pin 4 to force the TX port at full duplex mode. Or toggle up Pin 4 for half duplex mode. -
Page 11: Installation
™ Signamax 10/100TX to 100FX Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 12: Installing In A Chassis
™ Signamax 10/100TX to 100FX Media Converter Installing in a Chassis The Converter can be fit into any of the expansion slots on a special designed chassis. First, install the converter onto a carrier supplied with the chassis: Step 1- Unscrew the carrier from the desired expansion slot on the chassis. -
Page 13: Contact Information
™ Signamax 10/100TX to 100FX Media Converter Contact Information SIGNAMAX™ CONNECTIVITY SYSTEMS An AESP Company 1810 N.E. 144th Street. North Miami, Florida 33181, U.S.A. Phone: 305-944-7710 Fax: 305-652-8489 Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201 Http://www.signamax.com E-mail: info@signamax.com EUROPE AESP Ukraine. (UKRAINE) AESP Russia.
