INSTALLATION AND REFERENCE GUIDE

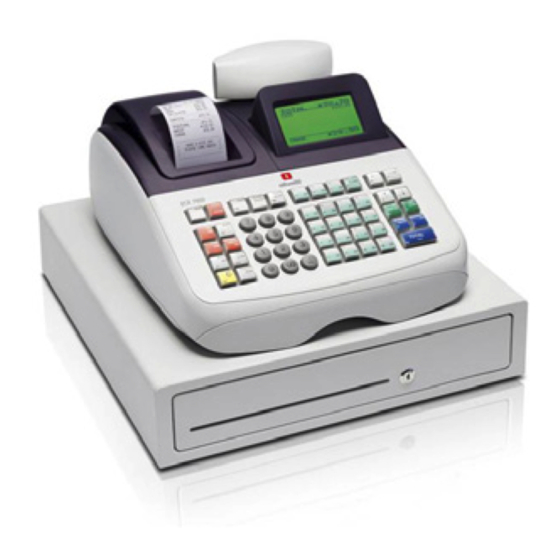

ECR8200
PROGRAMMING UTILITY
GB
Code: 569800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECR8200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Olivetti ECR8200

Summary of Contents for Olivetti ECR8200

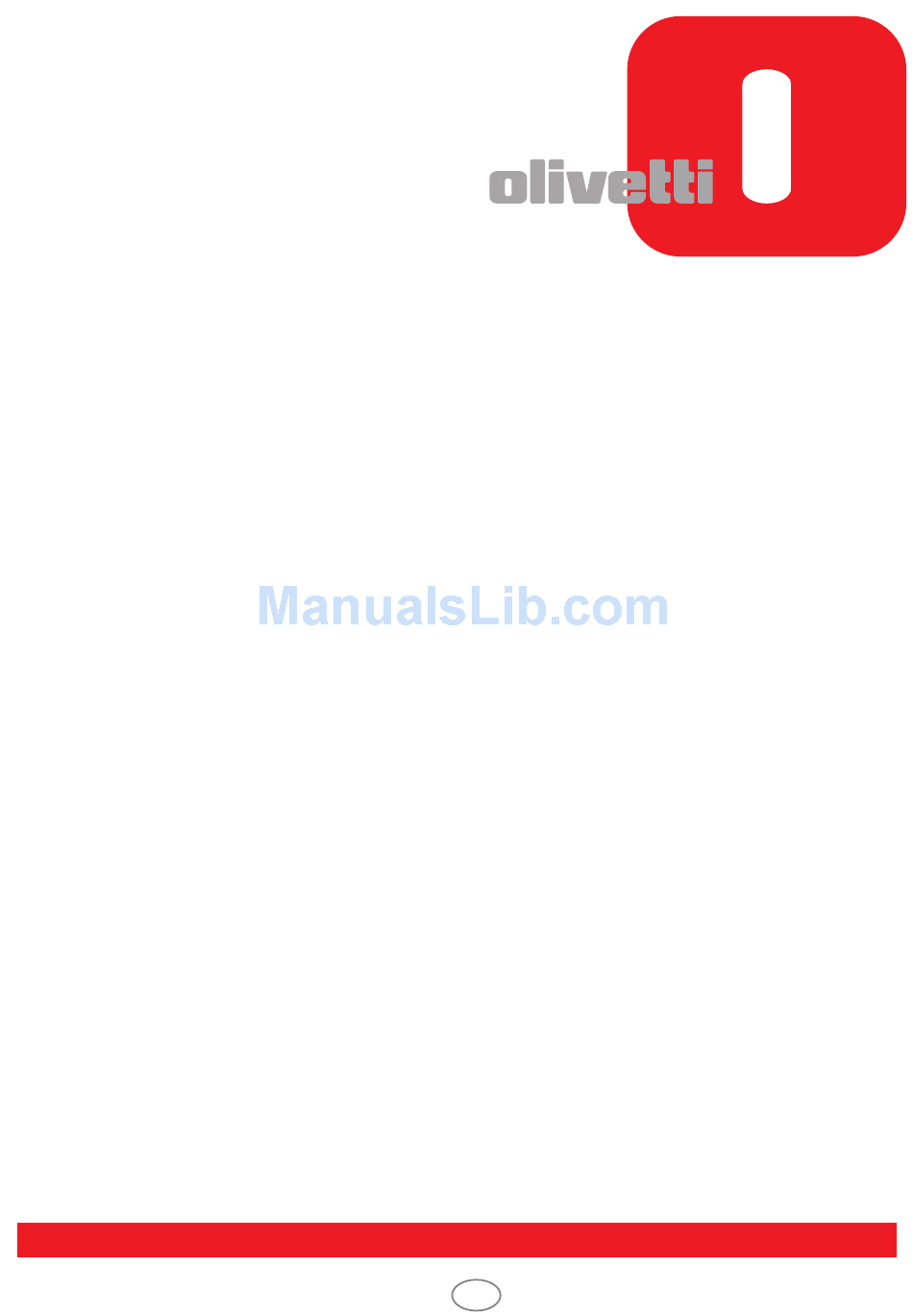

  • Page 1 INSTALLATION AND REFERENCE GUIDE ECR8200 PROGRAMMING UTILITY Code: 569800...
  • Page 2 PUBLICATION ISSUED BY: Olivetti S.p.A. www.olivetti.com Copyright © 2011, Olivetti All rights reserved Your attention is drawn to the following actions that could compromise the functionality of the product: • incorrect power supply; • incorrect installation; incorrect or improper use, or, in any case, not in accordance with the warnings given in the User Manual supplied with the product;...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PREREQUISITES ......................4 INSTALLING THE ECR PROGRAMMING UTILITY SOFTWARE ......... 5 CONFIGURING THE ECR PROGRAMMING UTILITY FOR WINDOWS XP ......7 CONFIGURING THE ECR PROGRAMMING UTILITY FOR WINDOWS VISTA OR WINDOWS 7......................12 USING THE ECR PROGRAMMING UTILITY SOFTWARE ..........17 ECR SOFTWARE UTILITY - PROGRAM A NEW CASH REGISTER ............

  • Page 4: Prerequisites

    To install the ECR Programming Utility software, you need: • ECR Programming Utility software, Version Ecr_82xx_software_5.xx.zip • Desktop or laptop computer with a USB port, standard 1.1 or later • A USB printer cable. The USB cable has to be order separately. • ECR8200 cash register. Ecr_82xx_software_5.xx.zip...

  • Page 5: Installing The Ecr Programming Utility Software

    32 bit and 64 bit operating systems: Win2000 and XP (32 bit), Vista and Windows 7 (32/64bit). To install the OLIVETTI ECR Programming Utility on Windows, follow the instructions below: Download the zip-format file with the name “Ecr_82xx_software_5.xx.zip” or higher version (from the Customer Care Cash Register area on the Olivetti site: http://www.olivetti.com).
  • Page 6 Click Next to continue with installing the program. Follow the instructions provided on the screen to complete installation. Click to Install. Wait until installation terminates. At the end, the message “Installation of ECR Programming Utility complete” is displayed to indicate that the setup procedure has been completed successfully. Click Finish.

  • Page 7: Configuring The Ecr Programming Utility For Windows Xp

    CONFIGURING THE ECR PROGRAMMING UTILITY FOR WINDOWS XP 1. Connect the cash register to a 220V electricity outlet. 2. Select Main menu, use the arrow keys to select OFF MODE, then confirm with the TOTAL key. 3. Connect the computer to the cash register using the USB cable.
  • Page 8 4. Wait until the computer detects the presence of the new USB peripheral device - displaying the message “Found New Hardware Wizard” - and then searches for the drivers necessary. 5. Select "Yes, this time only" as shown above and click "Next". 6.
  • Page 9 7. Select " Include this location in the search " and enter the file path in the text box (the default location on your PC is C:\OLIVETTI_ECR_Utility_82xx\Driver\w2k_Xp), or browse to it by clicking the “Browse” button and then select the folder. Once the file path is entered in the box, click “OK” to proceed.
  • Page 10 10. The following screen is displayed as Windows copies the driver files required. 11. Windows then displays a message indicating that installation has been successful: 12. Click "Finish" to complete the installation.
  • Page 11 Panel and double click on System. Select Hardware>Device Manager and open the item Ports to see the result, that will resemble the following screen. The “Olivetti ECR Programming Utility” is now configured on your computer. 14. To run the program, double-click the icon present on the desktop, or select it from the menu Start>Programs>Olivetti Ecr Utility 82xx.

  • Page 12: Configuring The Ecr Programming Utility For Windows Vista Or Windows 7

    CONFIGURING THE ECR PROGRAMMING UTILITY FOR WINDOWS VISTA OR WINDOWS 7 1. Connect the cash register to a 220V electrical outlet. 2. Select Main menu, use the arrow keys to select OFF MODE, then confirm with the TOTAL key. Connect the computer to the cash register using the USB cable.
  • Page 13 4. Wait until the computer detects the presence of a new USB peripheral device and upgrade the peripherals in the system. 5. Go to the Computer Management following the screen instructions. 6. Click "Manage". The screen below appears.
  • Page 14 7. Select "Other devices". 8. With “Other devices” selected, click the right mouse button and select Properties. 9. Click "Update Driver".
  • Page 15 10. Select “Browse my computer for driver software”. OLIVETTI_ECR_UTILITY_82xx C:\OLIVETTI_ECR_UTILITY_82xx Vista_7_X64 11. Browse for folder and enter the file path in the text box, the default location on your PC is C:\OLIVETTI_ECR_Utility_82xx\Driver\Vista (32 bit) or Vista_7_X64 (64 bit), and select the folder. Once the file path is entered in the box, click “OK”...
  • Page 16 12. Select “Install this driver software anyway”. 13. Click "Close" to complete the installation. The “Olivetti ECR Programming Utility” is now configured on your computer. 14. To run the program, double-click the icon present on the desktop, or select it from the menu...

  • Page 17: Using The Ecr Programming Utility Software

    To change the interface language , press the Language Selection button. To start programming, depending on your cash register model, click on either the ECR8200 icon in the main window. The main user screen is displayed.

  • Page 18: Ecr Software Utility - Program A New Cash Register

    Reports - to generate reports and save them on your PC. • Reset – reset the Olivetti Cash Register. Note: In order for any changes made in the programming screens to be actually applied, press the Save button followed by Send to ECR to save the changes on the cash register.

  • Page 19: Ecr Software Utility - Update Cash Register Programming

    Reports - to generate reports and save them on your PC. • Reset – reset the Olivetti Cash Register. Note: In order for any changes made in the programming screens to be actually applied, press the Save button followed by Send to ECR to save the changes on the cash register.

  • Page 20: Ecr Software Utility - Set Up A Logo

    ECR SOFTWARE UTILITY - SET UP A LOGO To be able to send a logo to the cash register, an image must be created using the computer with the following features: Graphic logo features Some restrictions apply as to the type of Logo: •...

  • Page 21: Ecr Software Utility - Help

    • On Windows 2000, select Start > Settings > Control Panel > Add/Remove Programs (depending on your operating system), then select OLIVETTI ECR Programming Utility to remove the related software. •...

  • Page 22: Barcode Reader Interface

    BARCODE READER INTERFACE A barcode reader can be connected to the cash register using the 9-pin serial port. Pin assignments for D-sub 9-pin (Barcode reader side): Pin No. Function RS232C communications parameters A barcode reader with either of the following configurations can be used: Baud Rate Data Length Parity...
