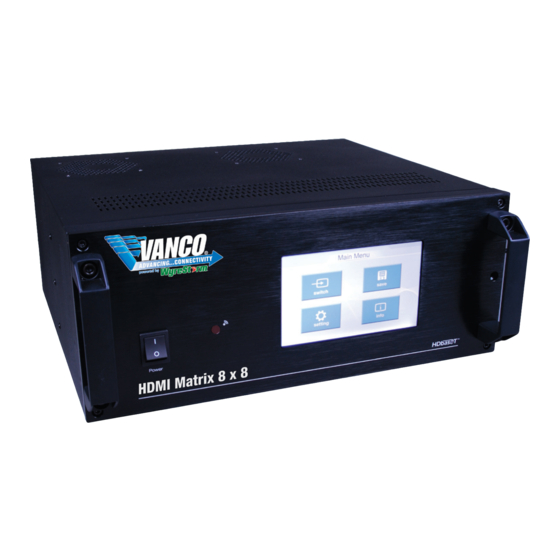

Vanco 280759 Instruction Manual

Hdmi 8 x 8 hdbaset matrix selector switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDMI®
MATRIX
SELECTOR SWITCH
HDMI
8 x 8
®
HDBaseT Matrix
Selector Switch
Vanco Part Number
280759
www.vanco1.com • 888.769.4156

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 280759 and is the answer not in the manual?

Questions and answers

Related Manuals for Vanco 280759

Summary of Contents for Vanco 280759

  • Page 1 HDMI® MATRIX SELECTOR SWITCH HDMI 8 x 8 ® HDBaseT Matrix Selector Switch Vanco Part Number 280759 www.vanco1.com • 888.769.4156...
  • Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
  • Page 3 FEATURES VPW-280759 HDMI 8x8 HDBaseT Matrix Switch has HDMI inputs and UTP outputs to individual receivers. This Matrix Switch allows any of the eight HDMI inputs to be routed to any of the eight UTP outputs simultaneously, without consideration as to whether the source is HDCP or not. Users can choose seven different ways to control the matrix: by using the infrared extension receiver, RS-232, RS-485, Ethernet LAN, touch screen, panel buttons or the supplied remote control.

  • Page 4: Package Contents

    • Remote. (One for main unit, others for IR calls • 100~240V AC Power cable. back control from UTP receiver). • Operating Instructions for Vanco 280759. • 1 IR RX (IR receiver cable). • Mounting ears. • 8 IR TX (IR emitter cable).

  • Page 5: Back Panel

    UTP and connected to the router or 8. HDMI IN. switcher via direct UTP. 9. IR RX, works with Vanco 280791 Receiver. CONNECT AND OPERATE 1. Connect the HDMI input source (such as HD- 6. Power on the input source you want to show.

  • Page 6: Main Menu

    OPERATION ON THE TOUCH PANEL MAIN MENU SWITCH MENU TYPE A: Step A.1: Select an output port or ‘A’, and press “OK”, Step A.2: Select an input source, and press “OK”. TYPE B: Step B.1: Select a model, and press “OK”. NOTE: ‘C’...
  • Page 7 SETTING MENU - There are 5 Sub Menus here: EDID/LC/IR/EQ/RST The 280759 only uses the EDID/IR/RST menu 1. EDID menu There are 6 modes provided. When selecting a different mode and pressing “OK”, the following warning box will pop up: The mode selected will be effective after next power-on.
  • Page 8 EDID Mode Details: INDEX EDID MODE DETAILS REMARKS Full Copy Copy HDMI output’s edid to Note 1 the specified input port Limited Copy Limited copy HDMI output’s Note 2 edid to the specified input port Fixed 1080P-2CH Fix EDID—1080p stereo Note 3 Fixed 1080P-6CH Fix EDID—1080p 5.1Audio...
  • Page 9 2. IR menu IIR call-back from remote locations to control the 8x8 HDMI Matrix. You can use the Matrix’s remote through the IR RX of the Receiver to change the input channel for the UTP out of 8x8 Matrix, just changing this UTP output. This function can be set on or off: INDEX IR CALL BACK...
  • Page 10 INFO MENU NOTE: Red dot indicates that the corresponding RJ45 output port is in single output mode. Details please see the attached CD-ROM about RJ45 output mode switch instructions. Press “MS”- View the current status of matrix Press “M1” - View the pre-existing state of matrix (Model 1) Press “M2”...

  • Page 11: Control Via Rs232

    CONTROL VIA IR REMOTE NOTE: if the IR remote does not work, please press thee ”system code switch key”, but please do not put the remote against the Matrix unit. CONTROL VIA RS232 1. The Interface of the 8x8 Matrix control 888.769.4156...
  • Page 12 2. The Message Window 2.1 Receive Window The “receive window” will show the message received from Matrix. When you click the Control Buttons) or send Control Command to the 8x8 Matrix, it will send out the message about “operation results” as below: 2.2 Status Button Click this button to read the status of Matrix.
  • Page 13 2.4 Setting Button Click this button to enter Setting menu, 8x8 Matrix and only use Switch/IR Back/EDID Setting/Copy EDID Setting. 2.5 Set IP Button Click this button to set IP address for nettle. 888.769.4156...
  • Page 14 2.6 IR Set button Click this button to set IR code for remote control. The device will enter ire set mode. You can edit your ire code in this mode. Step: 1. Read the ire code first by pressing “Read Code” button. 2.
  • Page 15 ” (hex: 63 69 72 20 33 39 0D 0A), when the MX0808 received this command, it will change the Outport4 status to the next input port. ( “c”-0x63,”I”-0x69,”r”-0x72,” “-0x20,”3”-0x33,”9”-0x39, ‘ -0x0d0a) 5. Control code (280759) Outport1 <“08” >“09” 1“00”...

  • Page 16: Read Status Command

    Outport5 <“48” >“49” 1“40” 2“41” 3“42” 4“43” 5“44” 6“45” 7“46” 8“47” Outport6 < “58” > “59” 1 “50” 2 “51” 3“52” 4 “53” 5“54” 6“55” 7“56” 8“57” Outport7 < “68” > “69” 1 “60” 2 “61” 3“62” 4 “63” 5“64” 6“65”...

  • Page 17: Lan Control

    LAN CONTROL Note: Use the direct UTP cable to connect with PC, or use cross cable to connect to the Ethernet switcher A.When NETCTL run on PC at the first time, it will create a file ‘NETCTL.TXT’. This file is for device information’s backup.
  • Page 18 The right area is for device controlling. Click these buttons to control the device. It is the same as using the remote controller. The left area shows which input ports are being chosen by the output ports. C. When ‘Assign IP’ is displayed, it means that the device has not been assigned IP automatically. Double click this item.
  • Page 19 Click OK after assign the new IP and to return to the previous dialog. Click Search and Read Device. The device can be displayed correctly. ATTENTION: here assign IP is different from Set IP in COMCTL. Set IP in COMCTL is save the IP address in flash, when the mx0808 power on, it will read the IP from flash and set it as static IP.

  • Page 20: Specifications

    SPECIFICATIONS Operating Temperature Range ........-5 to +35°C (-41 to +95 °F) Operating Humidity Range .......... 5 to 90 % RH (no condensation) Input Video Signal ............0.5-1.0 volts p-p Input DDC Signal ............5 volts p-p (TTL) Maximum Single Link Range ........1080p Deep Color Video Format Supported ..........
  • Page 21 HDBaseT™ Receiver - Part Number 280791 The Vanco 280791 HDMI Receiver uses HD Base T technology to transport a HDMI signal from the Vanco 280799 HDMI 16x16 Matrix Switch and from the Vanco 280759 HDMI 8x8 Matrix Switch. This allows the HDMI signal to be transported a maximum distance of 100 meters (328 ft) while using a single Cat-5e or Cat 6 UTP cable as the transmission media.
  • Page 22 CONNECT AND OPERATE 1. The 280791 Receiver works in conjunction with a HDMI Extender Transmitter or Matrix Switch employing HD Base T technology. 2. Connect a single Cat 5e or Cat 6 cable assembly from the UTP output of a Extender Transmitter or Matrix switch to the UTP input of the 280791 Receiver.
  • Page 23 7. A second stage of verifying the content of the EEPROM follows, also with a progress percentage report NOTE: For RS-232 control signal transmission, just connect two RS-232 cables to both RS-232 ports of Extender Transmitter or Matrix Switch and the Receiver, they work like an RS-232 extension cable. SPECIFICATIONS Operating Temperature Range ........
  • Page 24 IR HEX CODES - 280759 OUTPUT 1: Left: 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f...
  • Page 25 OUTPUT 3: Left: 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0016 05d5 Right:...
  • Page 26 OUTPUT 5: Left: 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0016 05d5 Right:...
  • Page 27 OUTPUT 7: Left: 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0016 05d5 Right:...
  • Page 28 The connection between 280759 Matrix and remote controller with RS-232 modem cable. Pins definition of modem cable 280759 Remote Controller Definition Definition * RS-232 transmission format: Baud Rate : 9600 bps Data Bit : 8 bits Parity : None Stop Bit : 1 bit...
  • Page 29 Output 3 cir 20 Output 3 select Input1 cir 65 Output 7 select Input6 cir 21 Output 3 select Input2 cir 66 Output 7 select Input7 cir 22 Output 3 select Input3 cir 67 Output 7 select Input8 cir 23 Output 3 select Input4 <...

  • Page 30: Troubleshooting

    TROUBLE-SHOOTING 1. Best results are usually achieved when the source and display resolutions are the same. If resolutions differ, the splitters will try to adjust the signal to match the resolution of the HD TV with the lowest resolution. This will result in a picture with a lower resolution on the other HD TV sets. 2.

  • Page 31: Limited Warranty

    Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended.
  • Page 32 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 888.769.4156 fax: 630.879.9189 visit: www.vanco1.com...
