Summary of Contents for Vanco HDSW4K31
- Page 1 HDMI® 3x1 Switch with HDR and CEC Vanco Part Number: HDSW4K31 Technical Support www.vanco1.com • techsupport@vanco1.com • 800-626-6445...
-
Page 2: Dear Customer

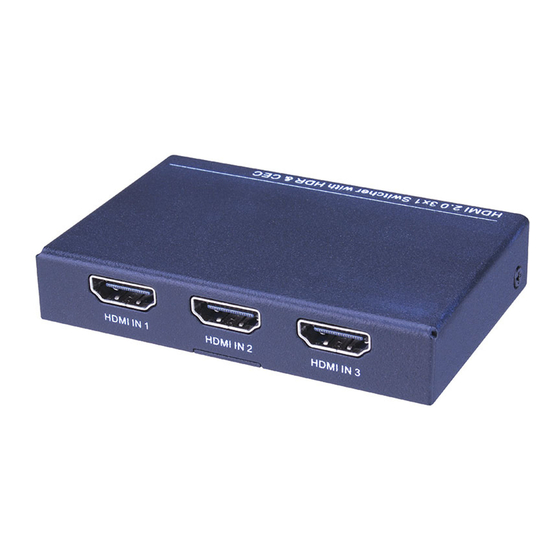

DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters. - Page 3 FEATURES The HDSW4K31 is an ultra-thin HDMI 2.0a Switcher with three HDMI video inputs and one HDMI output. The switcher supports HDMI video resolution up to 4K@60Hz 4:4:4 along with HDR10 and Dolby Vision capability. There is manual control option on the front panel is designed to switch any one of the inputs to output but also supports CEC (consumer electronic control) for instantly switching to the newest available source.
-
Page 4: Specifications
Relative humidity ............20~90 % RH (no condensation) PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • HDSW4K31 Switch • Velcro Tape • Product Manual www.vanco1.com... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS 1. SOURCE: Press the button to switch to the next input 2. HDMI OUT: Type-A female HDMI output port to connect HDMI display 3. INPUT LED: The LED illuminates blue when there is HDMI input on the corresponding channel 4. -
Page 6: Troubleshooting
SAFETY AND NOTICE The HDSW4K31 has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the HD4KCLK should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 7: Limited Warranty
If repairs are needed during the warranty period the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement. - Page 8 Vanco® International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
