- Page 1 4x1 4K2K HDMI® SELECTOR SWITCH Vanco Part Number EVSW1041 HDMI® 4x1 4K2K Selector Switch www.vanco1.com • 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
- Page 3 FEATURES INTRODUCTION The Evolution by Vanco HDMI 4x1 Switcher (EVSW1041) allows 4 HDMI sources to be distributed to 1 display, with the ability of controlling each source connected and input switching from the display remotely via IR. Have multiple sources switched to a single display, flexibility by creating additional HDMI inputs.
-
Page 4: Specifications
SPECIFICATIONS HDCP Compliance ............Yes Video Bandwidth ............Single-link 300 Mhz [10.2 Gbps] Video Support ............480i/480p/720p/1080i/1080p @60/2160p @30 36-bit color Audio Support ............Surround Sound (up to 7.1 ch) or stereo digital audio and L-PCM at up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS and HBR ESD Protection ............ -
Page 5: Panel Descriptions

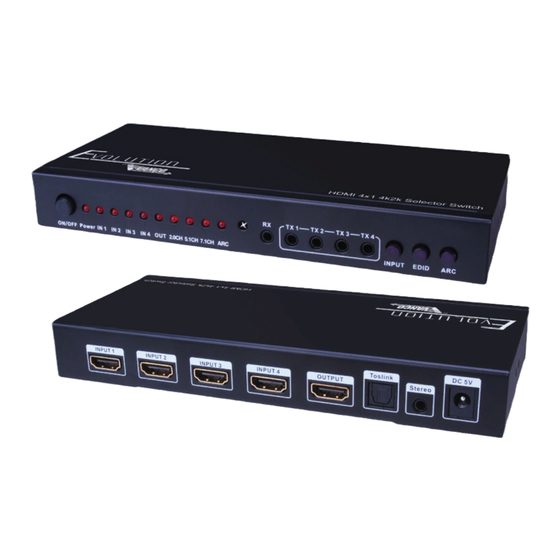

PANEL DESCRIPTIONS 6 7 8 10 11 ON/OFF: Power ON/OFF switch. POWER LED: Illuminates when the device is powered on IN 1/IN 2/IN 3/IN 4 LED: illuminates to indicate which input is selected for output OUT LED: Illuminates when a display is connected 2.0, 5.1, 7.1 LED: Illuminates to indicate which audio EDID is selected for output ARC LED: Illuminates when the ARC function is active IR: IR receiver eye for included IR Remote functions... - Page 6 OPERATION CONTROL - IR REMOTE CONTROL 1. INPUT SELECTION: Select input desired 2. AUDIO EDID: Select audio format desired, the panel LED will indicate the selected EDID status: 2.0CH: the switcher will modify the HDMI audio EDID to support 2.0CH to the source. 5.1CH: the switcher will modify the HDMI audio EDID to support 5.1CH to the source.
-
Page 7: Connect And Operate
CONNECT AND OPERATE IR Transmitter Audio Breakout IR Receiver Audio Video Receiver 1. Connect up to 4 sources such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI inputs on the unit. 2. Connect an HDMI display to the output HDMI port, using a high-definition display such as an HDTV or HD projector that has HDMI inputs. - Page 8 IR BLASTER Plug IR Blaster into IR TX port of switcher unit (EVSW1041); place blaster in front of the IR eye of the corresponding source(s). IR RECEIVER Plug IR Receiver into IR RX port of switcher unit (EVSW1041); place receiver at or near corresponding display.
-
Page 9: Troubleshooting
HDMI cable into it’s output, then power up the Vanco unit and plug the HDMI cable into it’s input, finally turn on the display and plug the HDMI cable from the receiver into it. This activates all of the devices in corresponding order and results in a signal being plugged into a device that is on and will attempt to connect the signal. -
Page 10: Limited Warranty
Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended. -
Page 11: Liability Statement
TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. - Page 12 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 fax: 630.879.9189 visit: www.vanco1.com...
