Ltech WiFi-104 User Manual

WiFi-104 WiFi Lighting Control System
R 255 G 255 B 255 W 255
80% W 80%
WiFi-104 WiFi-104
CONTROLLER1
Long press to turn off single zone or group
RGB RGBW CT1 CT2 DIM RGB
1 2 3 4 5 6
DIM RGBW RGBW RGBW RGBW DIM
7 8 9 10 11 12
Group1 Group2 Group3
Device Group Mode Scene On/off
WiFi-104 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices could control various types of LED lighting
products after installing related software on our iOS or Android phones, tablet PCs and other mobile devices. It makes the LED lighting control
more intelligence, networking and humanization.
WiFi-104 lighting control system integrated with four functional controls including dimming, color temperature adjusting, RGB and RGBW, which
could be set as single color, color temperature(nature white + warm white and nature white + warm white + cool white), RGB and RGBW five
types. Easy to control installed various of LED lights on WiFi Software. Meanwhile, it supports max 12 zones control. We could
do what you think!
WiFi-104 control system supports connection directly or by router:
In directly connection, mobile phone, pad can directly control the WiFi-104 controller + R4-5A/R4-CC wireless control, without any third party
of network equipment ;
Connection by a router, in addition to reach all the functions of direct connection and will not affect the normal Internet function at the same time,
the most important part is to support the software interface to switch multi-control systems, control independent of each other systems more
convenient, for example, supporting 24 zones in two systems.
In addition, you can DIY the lighting on software according to your habits. You can DIY any color, any changing you like. It will let yourself relish
in your sense of accomplishment for your special life color.
You can also use our 2.4G RF remote M12 if there is no software, more options for you.
1. Product P arameter:

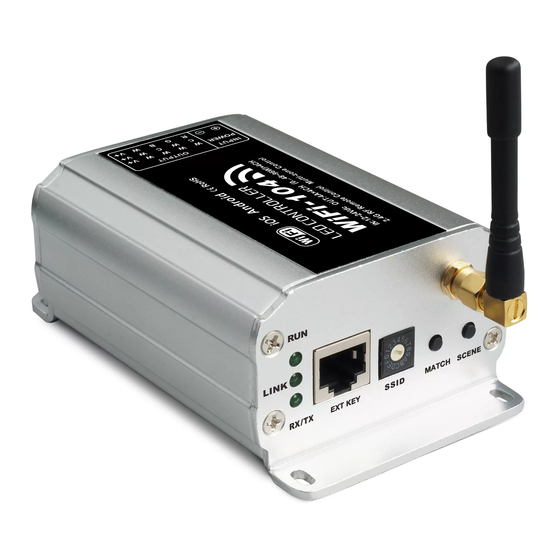

WiFi-104 Controller
Communication Standard: 2.4GHz Wi-Fi, 802.11b/g/n Protocol
Input Voltage:
DC12V~DC24V
Max Current Load: 4A x4CH Max 16 A
192W/384W(12V/24V)
Max Output Power:
WiFi Control Distance: 100m(Distance of cross-eyed)
R4-5A Constant Voltage Zone Receiver
Wireless Frequency: 2.4GHz
Input Voltage: DC5V~DC24V
Max Current Load 5A × 4CH Max 20 A
100W/240W/480W(5V/12V/24V)
Max Output Power:
Remote Distance: 50m(Distance of cross-eyed)
Working Temperature: ℃ ℃
-20 ~50
Product Size: L175×W44×H30mm
Package Size: L178×W48×H33mm
Weight(G.W.): 110g
1
WiFi-104 LED Lighting Control System
R4-5A R4-5A R4-CC R4-CC
warranty
5 years
Working Temperature: -20 ℃ ~50 ℃
Product Size:
L128×W73×H45mm
Package Size: L135×W80×H50mm
Weight(G.W.): 290g
R4-CC Constant Current Zone Receiver
Wireless Frequency:
2.4GHz
Input Voltage: DC12V~DC48V
Output Voltage:
DC3V~DC46V
Output Current: CC350/700/1050mA×4CH (3 in 1)
Output Power:
1.05W-48.3W 4CH Max 193.2W ×
Remote Distance: 50m(Distance of cross-eyed)
Working Temperature: ℃ ℃
-20 ~50
Product Size: L175×W44×H30mm
Package Size:
L178×W48×H33mm
Weight(G.W.): 110g
WiFi-104 LED Lighting Control System
V1.1
M12 Remote Control
Working Voltage:
DC 3V(CR2032 button battery)
Transmitting Frequency:
2.4GHz
Remote Distance:
30m (Distance of cross-eyed)
Dimensions:
L104×W60×H9mm
Weight (G.W):
42g

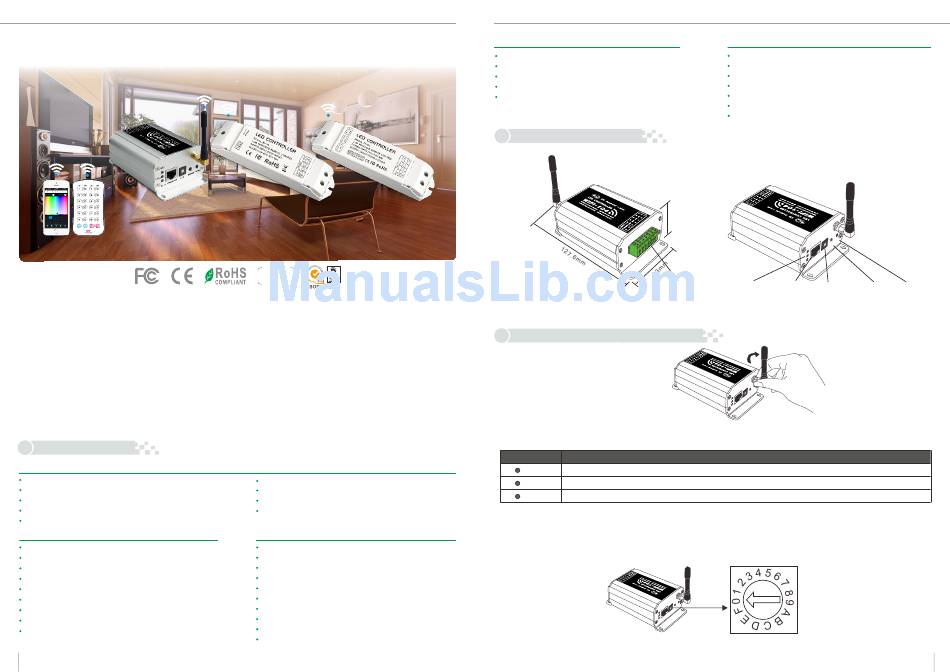

2. Configuration Diagram
Side A
3. Controller Operating Instructions
(1) Install / Uninstall ANT
Install the WiFi antenna clockwise,
Uninstall anticlockwise
(2) Indicator Light Instructions
Indicator light
RUN It flashes quickly about 25s during the electric initialization. Flashes once per second after initialization
LINK
It keeps on when the mobile device connected with WiFi controller, and turns off when disconnected.
RX/TX It turns on when the controller receives or transmits the WiFi data. Turns off in the free time.
(3) SSID Number Setting
Set the controller's SSID number with
our product could set 16 isolated LAN in the same area. The controller will re-enter initialization status once the code switch changes. RUN
indicator light will flash quickly about 25 seconds, mobile device need to search and connect WiFi again after Initialization finished.
V1.1
Software Technology Parameters
Operation Platform: No Lower Than Android 2.3 or iOS6.0
Screen Resolution: Above 960*640
WiFi Function: Must Have WiFi Function
Byte: Android Edition (932K); iOS Edition (2.8MB)
Language: English
Category:
Appliance
Other:
Free, No Plug-ins
m
. 5 m
4 4
K
L IN
Power Input / LED Output Indicator
Manufacturer
Interface
Side B
N
FU
C H
N AT
R U M
ID
S S
K E Y
N K
E X T
LI
X
/T
R X
ANT installation instruction
Instructions
code switch, SSID number range from WiFi-104-SSID-0 to WiFi-104-SSID-F,
E
EN
SC
C H
N M AT
R U
ID
SS
Y
N K KE
T
LI EX
R X/ TX
E
E N
S C
C H
A T
N M
R U
ID
S S
Y
K E
E X T
X
/T
R X
Scene
SSID Code Learning ID
switch Key
total 16 No. which means
2
