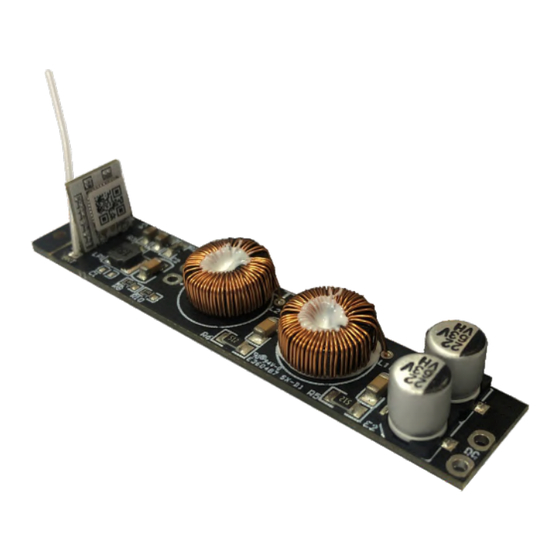

Zigbee LED Driver
Special for magnetic & linear lamp
- Support iOS or Android devices to control .
- No input polarity .
- DC to DC constant current output .
- Ultra-small size , suitable for STUCCHI standard housings .
- Magnetic installation is quiet without high-frequency sound .
- Smooth dimming curves without flicker .
- Short circuit, overload and anti-reverse protection.
- 5 year warranty.
No noise, no flicker

Technical Specs

MODEL
Output Voltage
Output Current
Output Power
OUTPUT
Current Accuracy
Dimming Range
Channel
Dimming Interface
Input Voltage
Input Current
INPUT
Efficiency(Typ)
Standby Power
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature
Overload Protection
PROTECTION
Short Circuit Protection
Input Anti -reverse Protection
Strategic Partnership
DIM/CT
Flicker-free
IEEE 1789
Suitable for STUCCHI standard housings
- 9519-166-K
- B 9519-166-K/W
TY-300-D2Z1
10~42Vdc (
Default is 36 Vdc and it can be set to another voltage based on customers' lights.
100~300mA
(Default is 300mA and it can be set to another voltage based on customers' lights.)
1W~12.6W (
)
Default is 12.6W
+15mA/-25mA
0~100%, down to 0.1%
2
Zigbee
48Vdc±5% (No polarity)
<0.28A
94%
<0.5W
ta: -30~55°C
20~95%RH, non-condensing
-40~80°C, 10~95%RH
The load voltage is out of range,the current drops until the power is turned on again.
Close output and automatically recover once the fault is removed.
No input polarity , able to output normally.
1
|
Installation guide
TY-600-D2Z1
350~600mA
(Default is 600mA and it can be set to another voltage based on customers' lights.)
3.5W~25.2W (
Default is 25.2W
±5%
<0.57A
92%
TY-300-D2Z1
Tuya Zigbee
TY-600-D2Z1
)
)
www.ltech-led.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY-300-D2Z1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ltech TY-300-D2Z1

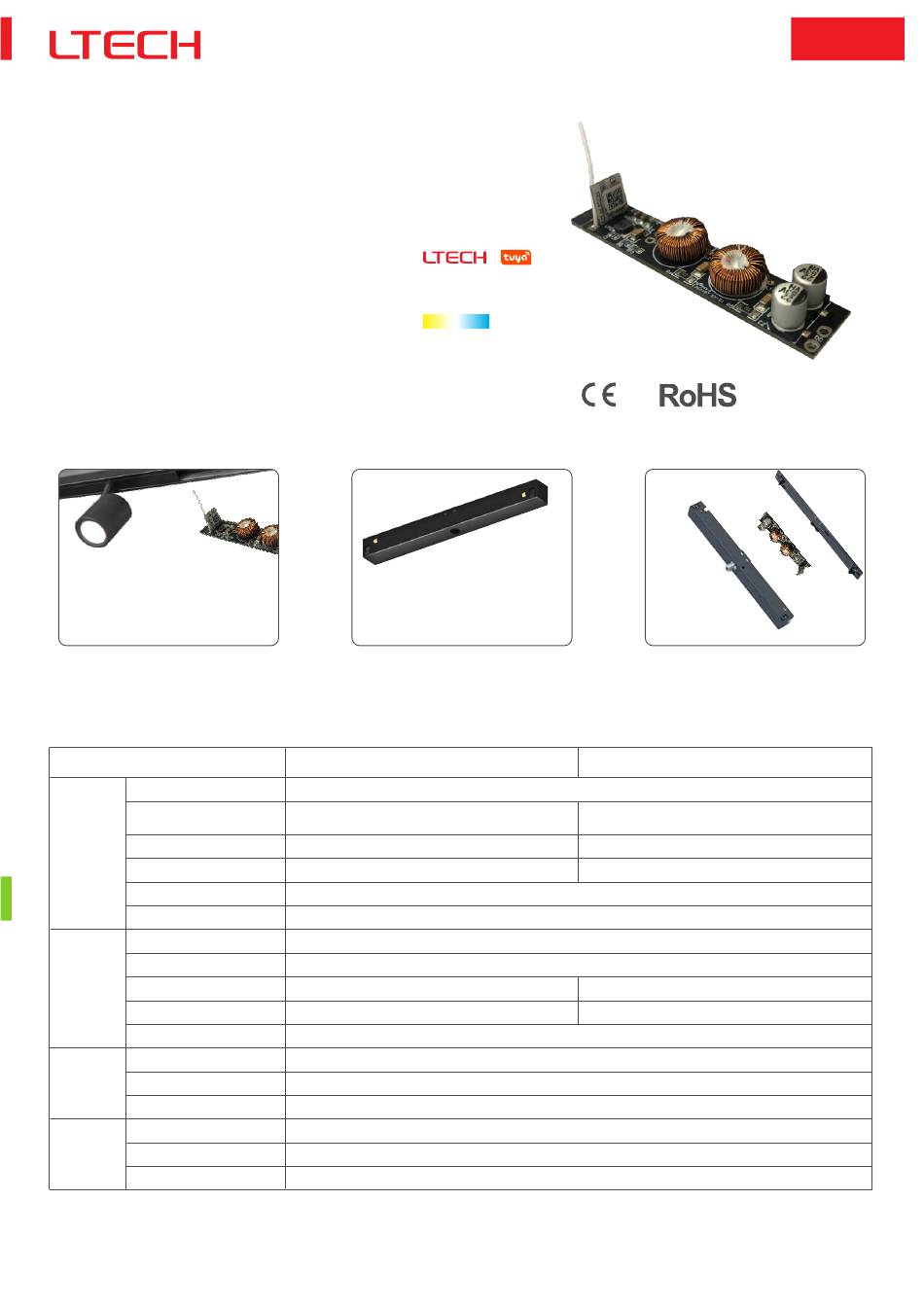

  • Page 1 TY-300-D2Z1 Tuya Zigbee TY-600-D2Z1 Zigbee LED Driver Special for magnetic & linear lamp - Support iOS or Android devices to control . - No input polarity . Strategic Partnership - DC to DC constant current output . - Ultra-small size , suitable for STUCCHI standard housings .
  • Page 2 Tuya Zigbee Dimensions Unit:mm Lamp terminal Power supply 13.5 Terminal Description PCB board Main view LED lamp Connection LED+ Input voltage (No polarity) Side view www.ltech-led.com...
  • Page 3 A new user clicks "Me" →”Home Management"→"createa home ", give a name to your home and confirm your home location, then add the rooms you need. Click “Add Device” - “Auto Scan” and enable permissions for automatically scanning Bluetooth/Wi-Fi/Zigbee/wired devices. Follow the prompts to add the device (Ensure that the device is ready for network connection). www.ltech-led.com...
  • Page 4 4.2 Automation settings: After adding Tuya Zigbee Gateway , you’ll be able to control the lighting remotely by clicking ”Automation” in the “Smart” menu. In “Automation”, set up conditions from weather, location and timing to other device status so as to trigger the lighting effects you preset and realize the lighting automation. www.ltech-led.com...
  • Page 5 Under the driver being power-on Turn it on 2s ..Turn it off Turn it on Turn it off 5s (Repeat 5 times) Packaging Specifications Model TY-300-D2Z1、TY-600-D2Z1 Carton Dimension 29.7×22×11.7mm(L×W×H) 240 PCS/Carton Quantity Weight 0.008 kg/PC; 2.72 kg/Carton Packaging Image Carton Packaging Transportation and Storage 1.Transportation...
