Ltech LM-240-24-G2D2 Manual

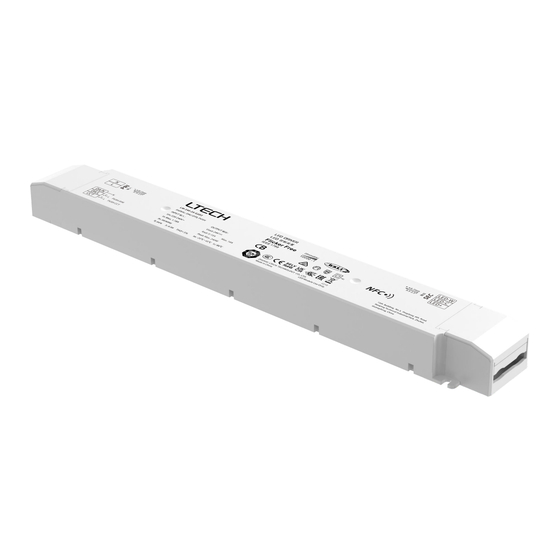

Intelligent Tunable White LED Driver
The housing is made from V0 flame retardant PC materials
from SAMSUNG/COVESTRO.
The clamshell design and screwless type for strain-relief.
The design of dismountable end cap allows you to adjust
the length of housing depending on your needs.
Change the dimming interface, DALI address and other
parameters on the NFC programmer or via the App, and
sync the parameters to the driver.
DALI bus standard IEC62386-101, 102, 209.
Adopt constant power design that can adjust different color
temperature while brightness remains the same.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
With soft-on and fade-in dimming function, enhancing your
visual comfort.
The whole dimming process is flicker-free with high frequency
exemption level.
Dimming from 0-100%, down to 0.01%.
Comply with the EU's ErP Directive, networked standby<0.5W.
Overheat, over voltage, overload, short circuit protection and
automatic recovery.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).
Technical Specs
Model
Output Type
Dimming Interface




Features Output Feature




Protection Grade
Insulation Grade
Output Voltage
Output Voltage Range


Output
Current


Output Power
OUTPUT
Dimming Range
Ripple(maximum)
Current Accuracy
PWM Frequency
DC Voltage Range
AC Voltage Range
Input Voltage
Frequency
Input Current
INPUT Power Factor
THD
Efficiency (Typ.)
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature/Humidity
Temperature Coefficient
Vibration
Overload Protection
Overheat Protection
PROTECTION
Overvoltage Protection
Short Circuit Protection
Withstand Voltage
Insulation Resistance
Safety
Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Power Consumption
ErP
Flicker/Stroboscopic Effect
DF
Weight(N.W.)
OTHERS
Dimensions
(Constant Voltage)
DIM/CCT
power program
design
LM-240-24-G2D2
Constant voltage
DALI
DT6/DT8, PUSH
DIM/CCT
Isolation
IP20
Class II (Suitable for class I/ II /III light fixtures)
24Vdc
24Vdc±0.5Vdc
Max. 10A
Max. 240W
0~100%, down to 0.01%
200mVp-p
±5%
≤3600Hz
200-280Vdc
198-264Vac
220-240Vac
50/60Hz
Max. 1.18A/230Vac
PF>0.99/230Vac, at
full
load
THD≤5%/230Vac, at
full
load
94%
Cold start 55A(Test twidth=1200us tested under 50% Ipeak)/230Vac
L-N: 2KV
Max. 0.5mA
ta: -20
~
45°C


tc: 86°C
20
~
95%RH,
non-condensing
-40
~
80°C/10~95%RH
±0.03%/°C(0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Shut down the output when rated power≥102-125%, auto recovers
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Shut down the output when non-load voltage≥28V, and recover automatically
Enter hiccup mode if short circuit occurs, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC China GB19510.1, GB19510.14
TUV Germany EN61347-1, EN61347-2-13, EN62493
CB IEC61347-1, IEC61347-2-13
CB Member States
CE EN61347-1, EN61347-2-13, EN62384
European Union
KC KC61347-1, KC61347-2-13
Korea
EAC Russia IEC61347-1, IEC61347-2-13
Australia
RCM AS
61347-1, AS
61347-2-13
ENEC Europe EN61347-1, EN61347-2-13, EN62384
UKCA BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
Britain
CCC China GB/T17743, GB17625.1
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC Korea KSC 9815, KSC 9547
EAC Russia IEC62493, IEC61547, EH55015
Australia
RCM EN55015, EN61000-3-2, EN61000-3-3, EN61547
UKCA
Britain BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
EN61000-4-2,3,4,5,6,8,11, EN61547
Standby power consumption No standby mode
Networked standby ≤0.5W (After shutdown by command)
No-load power consumption ≤0.5W (When the lamp is not connected)
Meet IEEE 1789 standard/High frequency exemption level
IEEE
1789
CIE SVM Pst LM≤1.0，SVM≤0.4
≤
Phase factor DF


0.9
555g±10g
380×49.5×30mm(L×W×H)
LM-240-24-G2D2
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
V
Overheat Overvoltage
Protection Protection
1
DALI DT6/DT8
PUSH DIM/CCT
Overload Short
Circuit
Protection Protection
