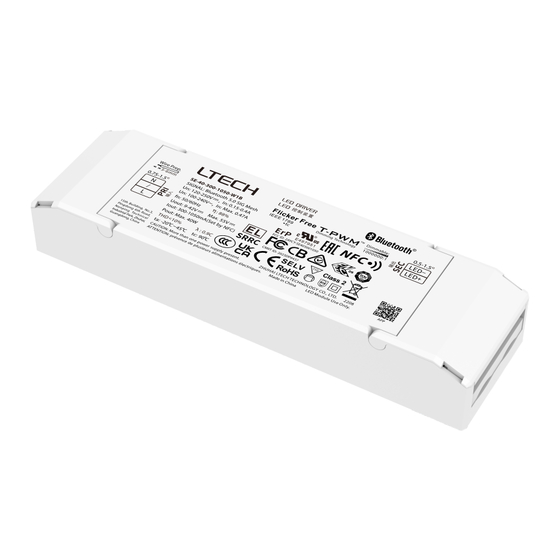

Ltech SE-40-300-1050-W1B Manual

Intelligent LED Driver
Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC
materials.
Ultra small, thin and lightweight, screwless end cap.
Change the output current, power-on fading time and other parameters
via the APP.
Adjustable output current with 1mA step.
Bluetooth 5.0 SIG Mesh with high networking capability is reliable
and stable.
Gain control on iOS or Android devices through Bluetooth connection.
Soft-on and fade-in dimming function enhances your visual comfort.
T-PWM™ dimming technology allows quality and high-end lighting.
The whole dimming process is flicker-free with high frequency
exemption level.
Dimming from 0~100%, down to 0.0001%.
Comply with the EU's ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs
due to poor contact.
Overheat, over voltage, overload, short circuit protection and
automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ
indoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor).

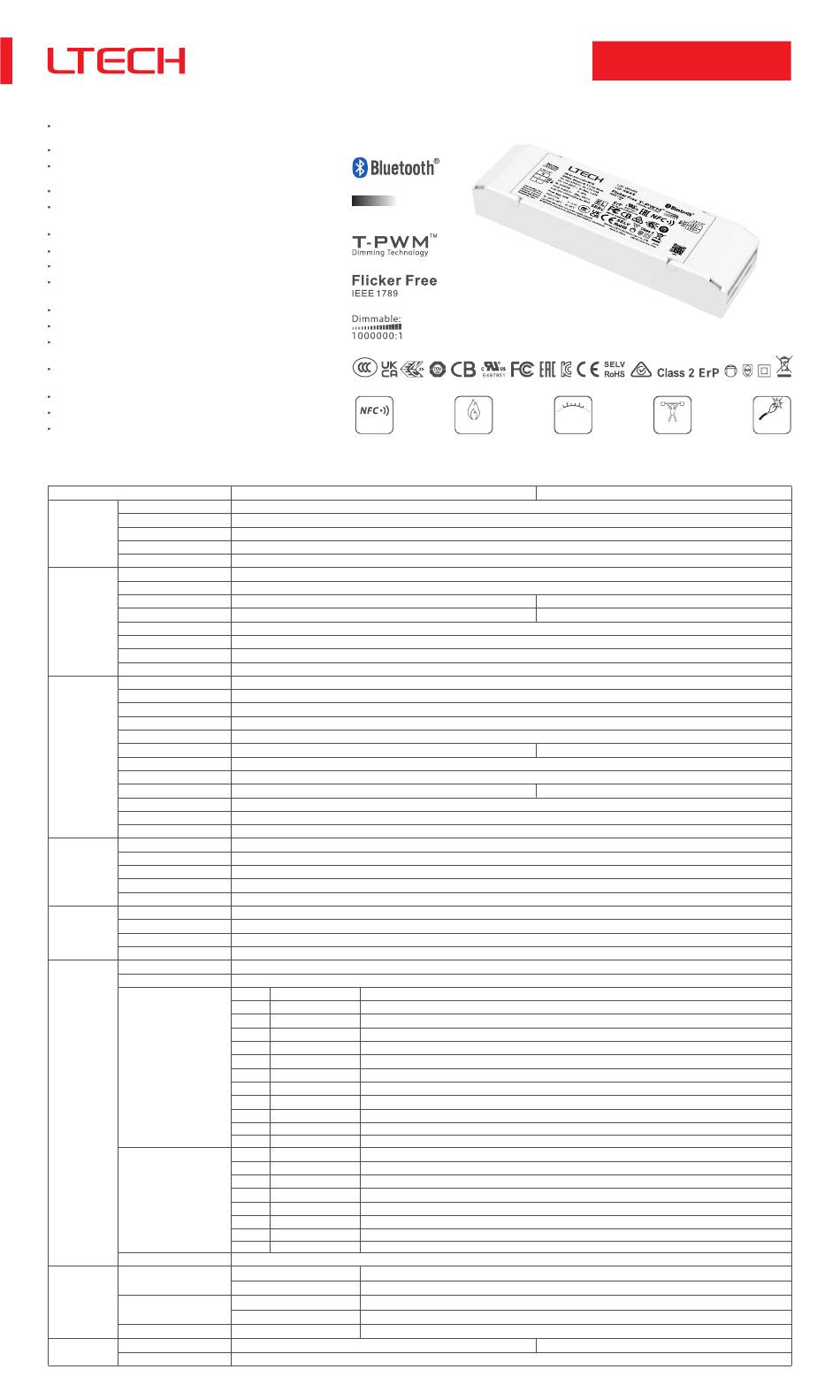

Technical Specs
Model
Output Type
Dimming Interface


Features Output Feature


Protection Grade
Insulation Grade
Output Voltage
Maximum output voltage


Output Current Range


Output Power Range
OUTPUT
Dimming Range
LF Current Ripple
Current Accuracy
PWM Frequency
DC Voltage Range
AC Voltage Range
EoF
i
Input Voltage
Frequency
Input Current
Power Factor
THD
INPUT
Efficiency (Typ.)
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature/Humidity
Temperature Coefficient
Vibration
Overload Protection
Overheat Protection
PROTECTION
Overvoltage Protection
Short Circuit Protection
Withstand Voltage
Insulation Resistance
Safety
Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Power Consumption
ErP
Flicker/Stroboscopic Effect
DF
Weight(N.W.)
OTHERS
Dimensions
(Constant Current)
DIM
Multi current
setting
SE-40-300-1050-W1B
Constant current
Bluetooth 5.0 SIG Mesh
Isolation
IP20
Class II (Suitable for class I/ II /III light fixtures)
9-42Vdc
≤55Vdc
300-1050mA
2.7W-40W
0~100%, down to 0.0001%
<3% (Maximum current for non dimming state)
±5%
≤3600Hz
120-250Vdc
100-240Vac
100%
115Vac/230Vac
50/60Hz
≤0.45A/115Vac, ≤0.22A/230Vac
PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD≤10%/230Vac, at
full
load
88%@950mA (at full load)
Cold start 25A(Test twidth=130us tested under 50% Ipeak)/230Vac
L-N: 2KV
Max. 0.5mA
ta: -20
~
45°C


tc: 90°C
20
~
95%RH,
non-condensing
-40
~
80°C/10~95%RH
±0.03%/°C(0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Enter hiccup mode if short circuit occurs, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC China
Germany
TUV
CB CB Member States
CE European Union
KC
Korea
EAC Russia
Australia
RCM
ENEC Europe
UKCA Britain
BIS India
CUL
Canada
UL America
CCC China
CE European Union
KC Korea
Russia
EAC
RCM Australia
Britain
UKCA
CUL Canada
UL America
EN61000-4-2,3,4,5,6,8,11, EN61547
Networked standby
No-load power consumption
IEEE
1789
CIE SVM
Phase factor
170g±10g
142×40×23mm(L×W×H)
SE-40-300-1050-W1B
SE-30-200-800-W1B
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
Overheat
Protection
GB19510.1, GB19510.14
EN61347-1, EN61347-2-13, EN62493
IEC61347-1, IEC61347-2-13
EN61347-1, EN61347-2-13, EN62384
KC61347-1, KC61347-2-13
IEC61347-1, IEC61347-2-13
AS
61347-1, AS
61347-2-13
EN61347-1, EN61347-2-13, EN62384
BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
IS 15885 (PART 2/SEC 13)
CSA C22.2 NO.250.13
UL 8750
GB/T17743, GB17625.1
EN55015, EN61000-3-2, EN61000-3-3, EN61547
KSC 9815, KSC 9547
IEC62493, IEC61547, EH55015
EN55015, EN61000-3-2, EN61000-3-3, EN61547
BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
ICES-005
FCC PART 15B
<0.5W (After shutdown by command)
<0.5W (When the lamp is not connected)
Meet IEEE 1789 standard/High frequency exemption level
Pst LM≤1.0，SVM≤0.4
DF


0.9 ≤
1
Bluetooth 5.0 SIG Mesh
V
Over voltage Over Load
protection protection
SE-30-200-800-W1B
200-800mA
1.8W-30W
≤0.34A/115Vac, ≤0.17A/230Vac
87%@750mA (at full load)
150g±10g
Short circuit
protection
