Intelligent led driver (constant current)

Advertisement

Quick Links

Intelligent LED Driver
The housing is made from V0 flame retardant PC materials
from SAMSUNG/COVESTRO.
Ultra-small, thin and light screwless end cap.
Change the output current, fade time and other parameters on the NFC
programmer or via the App, and sync the parameters to the driver.
Set the output current down to 1mA.
With soft-on and fade-in dimming function, enhancing your visual comfort.
T-PWM™ Super depth dimming technology, dimming depth can reach 0.0001%
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU's ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs
due to poor contact.
Overheat, over voltage, overload, short circuit protection and
automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor)
Technical Specs
Model
Output Type
Dimming Interface

Features
Output Feature

Protection Grade
Insulation Grade
Output Voltage
Maximum output voltage

Output Current Range

Output Power Range
OUTPUT
Dimming Range
LF Current Ripple
Current Accuracy
PWM Frequency
DC Voltage Range
AC Voltage Range
Input Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (Typ.)
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature/Humidity
Temperature Coefficient
Vibration
Overload Protection
Overheat Protection
PROTECTION
Overvoltage Protection
Short Circuit Protection
Withstand Voltage
Insulation Resistance
SafetyStandards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Power Consumption
ErP
Flicker/Stroboscopic Effect
DF
Weight(N.W.)
OTHERS
Dimensions
(Constant Current)
Multi current
SE-12-100-500-W1B
Constant current
Bluetooth 5.0 SIG Mesh
Isolation
IP20
Class II (Suitable for class I/ II /III light fixtures)
9-42Vdc
≤48Vdc
100-500mA
0.9W-12W
0~100%, down to 0.0001%
<3%(Maximum current for non dimming state)
±5%
≤3600Hz
120-250Vdc
100-240Vac
115Vac/230Vac
50/60Hz
≤0.18A/115Vac, ≤0.08A/230Vac
PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD≤10%/230Vac, atfullload
84%@700mA(at full load), 82%@500mA(at full load)
Cold start 15A(Test twidth=102us tested under 50% Ipeak)/230Vac
L-N: 2KV
Max. 0.24mA
ta: -20~50°Ctc: 80°C
20~95%RH,non-condensing
-40~80°C/10~95%RH
±0.03%/°C(0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Enter hiccup mode if short circuit occurs, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC
China
TUV
Germany
CB
CB Member States
CE
European Union
KC
Korea
EAC
Russia
Australia
RCM
ENEC
Europe
UKCA
Britain
BIS
India
CUL
Canada
UL
America
CCC
China
CE
European Union
Korea
KC
Russia
EAC
Australia
RCM
Britain
UKCA
CUL
Canada
UL
America
EN61000-4-2,3,4,5,6,8,11, EN61547
Networked standby
No-load power consumption
IEEE1789
CIE SVM
Phase factor
85g±10g
110×35×20mm(L×W×H)
SE-12-100-500-W1B
DIM
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
Constant power
Overheat
setting
setting
Protection
GB19510.1, GB19510.14
EN61347-1, EN61347-2-13, EN62493
IEC61347-1, IEC61347-2-13
EN61347-1, EN61347-2-13, EN62384
KC61347-1, KC61347-2-13
IEC61347-1, IEC61347-2-13
AS61347-1, AS61347-2-13
EN61347-1, EN61347-2-13, EN62384
BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
IS 15885 (PART 2/SEC 13)
CSA C22.2 NO.250.13
UL 8750
GB/T17743, GB17625.1
EN55015, EN61000-3-2, EN61000-3-3, EN61547
KSC 9815, KSC 9547
IEC62493, IEC61547, EH55015
EN55015, EN61000-3-2, EN61000-3-3, EN61547
BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
ICES-005
FCC PART 15B
<0.5W (After shutdown by command)
<0.5W (When the lamp is not connected)
Meet IEEE 1789 standard/High frequency exemption level
Pst LM≤1.0,SVM≤0.4
DF0.9
1
Bluetooth5.0SIGMesh
V
Over voltage
Over Load
Short circuit
protection
protection
protection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE-12-100-500-W1B and is the answer not in the manual?

Questions and answers

Summary of Contents for Ltech SE-12-100-500-W1B

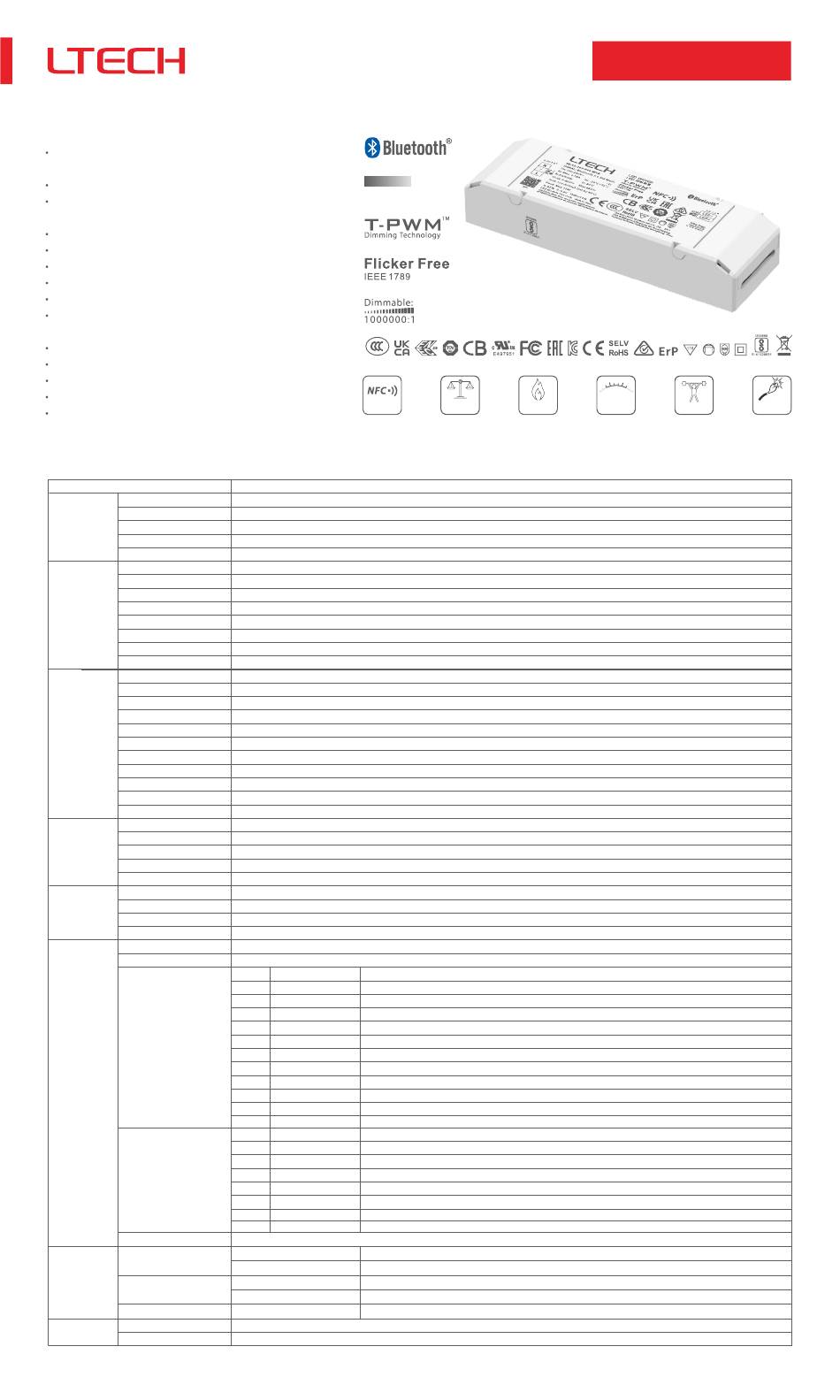

  • Page 1 Bluetooth5.0SIGMesh SE-12-100-500-W1B Intelligent LED Driver (Constant Current) The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO. Ultra-small, thin and light screwless end cap. Change the output current, fade time and other parameters on the NFC programmer or via the App, and sync the parameters to the driver.
  • Page 2: Product Size

    Bluetooth5.0SIGMesh SE-12-100-500-W1B Product Size :mm Unit Minimum hole size: φ48mm (1,57") Wiring Diagram Wireless connection mode 0.75-1.5 0.5-1.5 LED+ Dimming:0~100% 5-6mm Wire diameter: 0.75-1.5 (20-16AWG) Wire diameter: 0.5-1.5 (22-16AWG) Strip length: 5-6mm Strip length: 5-6mm Access the network to control through App and Bluetooth...
  • Page 3: Installation Precautions

    Bluetooth5.0SIGMesh SE-12-100-500-W1B Table of Typical Corresponding Parameters for Current The typical 9 current data sets below are for reference when selecting LED fixture models. More current levels can be set by NFC using mobile APP with 100-500mA adjustable in 1mA step...
  • Page 4 Bluetooth5.0SIGMesh SE-12-100-500-W1B Use the NFC Lighting APP Scan the QR code below with your mobile phone and follow the prompts to complete the APP installation (According to performance requirements, you need to use a NFC-capable Android phone, or an iphone 8 and later that are compatible with iOS 13 or higher).
  • Page 5 Bluetooth5.0SIGMesh SE-12-100-500-W1B Bluetooth System Diagram Wi-Fi/4G/5G CLOUD Phoneuser... Phone user 1 Scene Timing Automation Router Amazon Echo Google Home appliances & accessories Ethernet Wi-Fi Home appliance Central air Curtain module conditioner module motor Bluetooth 4.2 Bluetooth Wireless module Relay Musicplayer...
  • Page 6 Bluetooth5.0SIGMesh SE-12-100-500-W1B Use with Bluetooth L-Home APP 1. Register an account The App is available on iOS or Android devices. Scan the QR code below with you mobile phone and follow the prompts to complete the App installation. Open the App to log in or register an account.
  • Page 7 . Follow the prompts to rename the group and click ”Next” to pick the lights you are going to group together and click “Save”. 5. Advanced functions This driver can be linked up with gateway function devices (such as LTECH Super Panel) to achieve the advanced functions from cloud scenes to automation. Reset The Device (Reset to factory defaults) Make sure the driver is well-connected to a lamp and the lamp is on, turn it off with the switch and after 15s turn it on.
  • Page 8 Bluetooth5.0SIGMesh SE-12-100-500-W1B Relationship Diagrams Efficiency VS Load Power Factor VS Load 1 .00 90.00 100mA 150mA 0 .90 200mA 250mA 80.00 300mA 350mA 0 .80 70.00 400mA 450mA 0 .70 500mA 60.00 0 .60 100mA 150mA 200mA 50.00 0 .50...
  • Page 9: Packaging Specifications

    Bluetooth5.0SIGMesh SE-12-100-500-W1B Packaging Specifications SE-12-100-500-W1B Model × × Carton Dimensions 260 240 215 mm(L×W×H) 20 PCS/Layer; 5 Layers/Carton; 100 PCS/Carton Quantity Weight 0.095kg/PC; 9.5 kg±5%/Carton Packaging Image Inner Packaging Box Carton Packaging...
  • Page 10: Transportation And Storage

    No any contract signed by LTECH. 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
  • Page 11: Update Log

    Bluetooth5.0SIGMesh SE-12-100-500-W1B Update Log Version Updated Time Updated by Update Content 20231028 Original version Yang Weiling...
