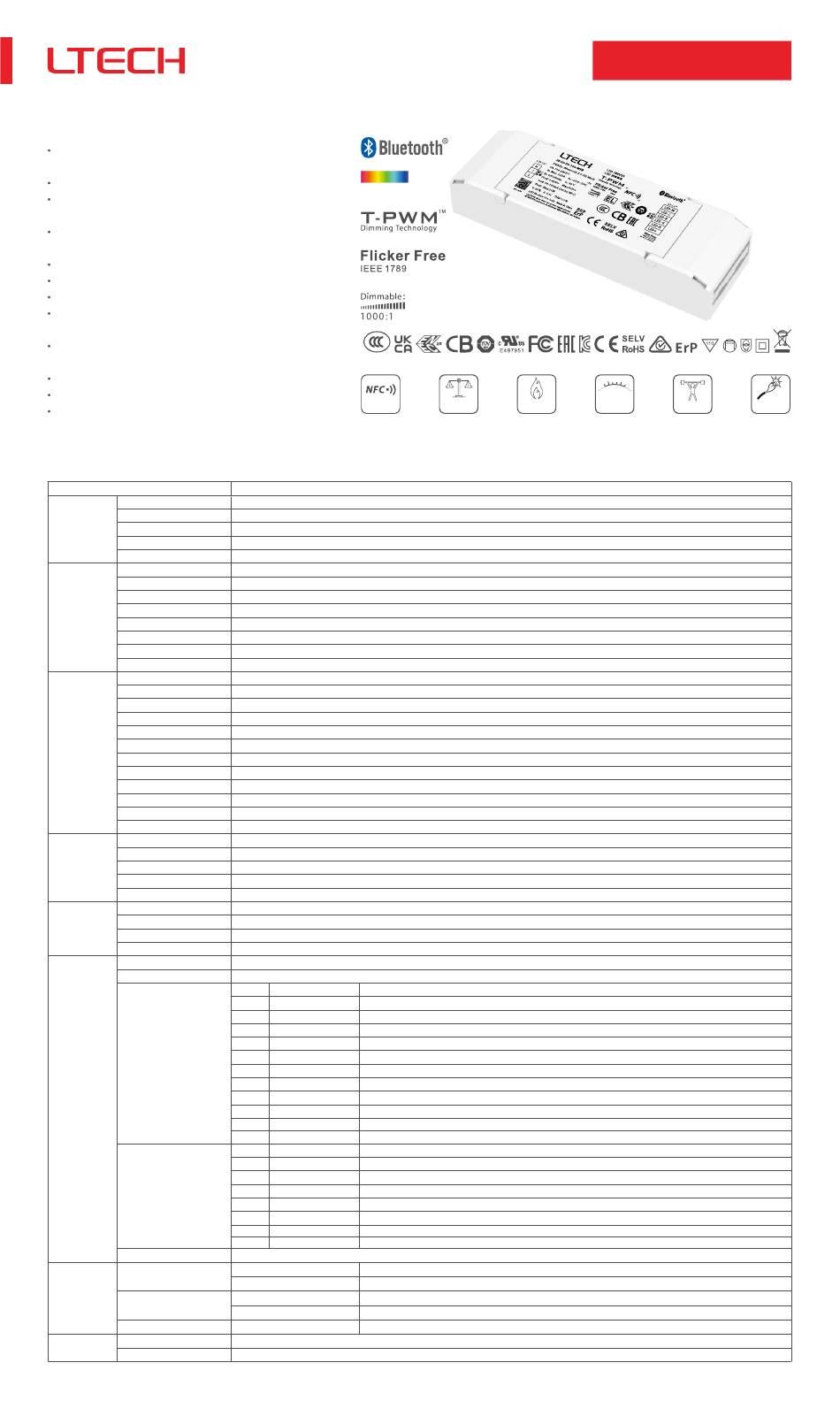

Intelligent Tunable White LED Driver
The housing is made from V0 flame retardant PC materials
from SAMSUNG/COVESTRO.
Ultra-small, thin and light screwless end cap.
Change the output current, fade time and other parameters on the NFC
programmer or via the App, and sync the parameters to the driver.
0-100% full dimming without video flash,
Set the output current down to 1mA.
high frequency exemption assessment level
T-PWM™ Super depth dimming technology, dimming depth can reach 0.1%
The whole dimming process is flicker-free with high frequency exemption level.
Comply with the EU's ErP Directive, networked standby<0.5W.
When there is no load, the output will be 0V to prevent damage to LEDs
due to poor contact.
Overheat, over voltage, overload, short circuit protection and
automatic recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲindoor light fixtures.
Normal service life can reach 100,000 hours.
5-year warranty (Rubycon capacitor)
Technical Specs
Model
Output Type
Dimming Interface
Features
Output Feature
Protection Grade
Insulation Grade
Output Voltage
Maximum output voltage
Output Current Range
Output Power Range
OUTPUT
Dimming Range
LF Current Ripple
Current Accuracy
PWM Frequency
DC Voltage Range
AC Voltage Range
DC current range
Input Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (Typ.)
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT
Storage Temperature/Humidity
Temperature Coefficient
Vibration
Overload Protection
Overheat Protection
PROTECTION
Overvoltage Protection
Short Circuit Protection
Withstand Voltage
Insulation Resistance
SafetyStandards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Power Consumption
ErP
Flicker/Stroboscopic Effect
DF
Weight(N.W.)
OTHERS
Dimensions
(Constant Current)
Color light contro
Multi current
setting
SE-20-50-100-W5B
Constant current
Bluetooth 5.0 SIG Mesh
Isolation
IP20
Class II (Suitable for class I/ II /III light fixtures)
9-42Vdc
≤50Vdc
50-100mA （Set this parameter using the NFC APP）
0.45W-21W
0.1~100%, down to 0.1%
<5%(Maximum current for non dimming state)
±5%
≤3600Hz
100-240Vdc
100-240Vac
0.09-0.25A
115Vac/230Vac
0/50/60Hz
≤0.25A/115Vac, ≤0.13A/230Vac
PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load)
THD≤10%/230Vac, atfullload
85%(at full load)
Cold start 15A(Test twidth=102us tested under 50% Ipeak)/230Vac
L-N: 2KV
Max. 0.24mA
ta: -20~50°Ctc: 80°C
20~95%RH,non-condensing
-40~80°C/10~95%RH
±0.03%/°C(-20-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced.
The temperature returns to normal and the abnormality is eliminated.
Automaticallyprotectthedevicewhenvoltageexceedstheno-loadvoltage.
Enter hiccup mode if short circuit occurs, and recover automatically.
I/P-O/P:
3750Vac≦5mA/60S
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC
GB19510.1, GB19510.14
China
TUV
Germany
EN61347-1, EN61347-2-13, EN62493
CB
CB Member States
IEC61347-1, IEC61347-2-13
CE
European Union
EN61347-1, EN61347-2-13, EN62384
KC
Korea
KC61347-1, KC61347-2-13
EAC
Russia
IEC61347-1, IEC61347-2-13
Australia
RCM
AS61347-1, AS61347-2-13
ENEC
Europe
EN61347-1, EN61347-2-13, EN62384
UKCA
Britain
BS EN 61347-1, BS EN 61347-2-13, BS EN 62493
BIS
India
IS 15885 (PART 2/SEC 13)
CUL
CSA C22.2 NO.250.13
Canada
UL
America
UL 8750
CCC
GB/T17743, GB17625.1
China
European Union
CE
EN55015, EN61000-3-2, EN61000-3-3, EN61547
KC
Korea
KSC 9815, KSC 9547
Russia
EAC
IEC62493, IEC61547, EH55015
RCM
Australia
EN55015, EN61000-3-2, EN61000-3-3, EN61547
Britain
UKCA
BS EN IEC 55015, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN 61547
CUL
ICES-005
Canada
UL
America
FCC PART 15B
EN61000-4-2,3,4,5,6,8,11, EN61547
Networked standby
<0.5W (After shutdown by command)
No-load power consumption
<0.5W (When the lamp is not connected)
IEEE1789
Meet IEEE 1789 standard/High frequency exemption level
CIE SVM
Pst LM≤1.0，SVM≤0.4
≤
Phase factor
DF0.9
100g±10g
127×40×23mm(L×W×H)
SE-20-50-100-W5B
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
Constant power
Overheat
setting
Protection
Bluetooth5.0SIGMesh
V
Over voltage
Over Load
Short circuit
protection
protection
protection
Advertisement
Related Manuals for Ltech Bluetooth5.0SIGMesh
Summary of Contents for Ltech Bluetooth5.0SIGMesh
- Page 1 Bluetooth5.0SIGMesh SE-20-50-100-W5B Intelligent Tunable White LED Driver (Constant Current) The housing is made from V0 flame retardant PC materials from SAMSUNG/COVESTRO. Ultra-small, thin and light screwless end cap. Color light contro Change the output current, fade time and other parameters on the NFC programmer or via the App, and sync the parameters to the driver.
- Page 2 Bluetooth5.0SIGMesh SE-20-50-100-W5B Product Size ：mm Unit 115.6 19.5 Minimum hole size: φ48mm (1,89") Wiring Diagram Wireless connection mode 0.5-1.5 LED-W 0.75-1.5 LED-C LED-B LED-G LED-R LED+ Dimming: 0~100% Color temperature: 1000-10000K Wire diameter: 0.75-1.5 (20-16AWG) Wire diameter: 0.5-1.5 (22-16AWG) Strip length: 5-6mm...
- Page 3 Bluetooth5.0SIGMesh SE-20-50-100-W5B Table of Typical Corresponding Parameters for Current The typical 4 current data sets below are for reference when selecting LED fixture models. More current levels can be set by NFC using mobile APP with 50-100mA adjustable in 1mA step...
- Page 4 Bluetooth5.0SIGMesh SE-20-50-100-W5B Use the NFC Lighting APP Scan the QR code below with your mobile phone and follow the prompts to complete the APP installation (According to performance requirements, you need to use a NFC-capable Android phone, or an iphone 8 and later that are compatible with iOS 13 or higher).
- Page 5 Bluetooth5.0SIGMesh SE-20-50-100-W5B Bluetooth System Diagram Wi-Fi/4G/5G CLOUD Phoneuser... Phone user 1 Scene Timing Automation Router Amazon Echo Google Home appliances & accessories Wi-Fi Ethernet Home appliance Central air Curtain module conditioner module motor Bluetooth 4.2 Bluetooth Wireless module Relay Musicplayer Mesh Bluetooth Speaker Super Panel 6S...
- Page 6 Bluetooth5.0SIGMesh SE-20-50-100-W5B Use with Bluetooth L-Home APP 1. Register an account The App is available on iOS or Android devices. Scan the QR code below with you mobile phone and follow the prompts to complete the App installation. Open the App to log in or register an account. 2.
- Page 7 Pick “Group-RGBCW light group” from the list . Follow the prompts to rename the group and click ”Next” to pick the lights you are going to group together and click “Save”. 5. Advanced functions This driver can be linked up with gateway function devices (such as LTECH Super Panel) to achieve the advanced functions from cloud scenes to automation. Reset The Device (Reset to factory defaults) Make sure the driver is well-connected to a lamp and the lamp is on, turn it off with the switch and after 15s turn it on.
- Page 8 Bluetooth5.0SIGMesh SE-20-50-100-W5B Relationship Diagrams Efficiency VS Load Power Factor VS Load 100.00 1.00 90.00 0.90 80.00 0.80 70.00 0.70 60.00 0.60 50mA 100mA 50.00 0.50 50mA 100mA 40.00 0.40 30.00 0.30 L oad[ %] L oad[ %] THD VS Load...
- Page 9 Bluetooth5.0SIGMesh SE-20-50-100-W5B Packaging Specifications SE-20-50-100-W5B Model × × Carton Dimensions 290 275 106 mm(L×W×H) 20 PCS/Layer; 2 Layers/Carton; 40 PCS/Carton Quantity Weight 0.11 kg/PC; 52 kg±5%/Carton Packaging Image Inner Packaging Box Carton Packaging...
- Page 10 No any contract signed by LTECH. 1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
- Page 11 Bluetooth5.0SIGMesh SE-20-50-100-W5B Update Log Version Updated Time Updated by Update Content HaiPengLi Original version 20240920...
