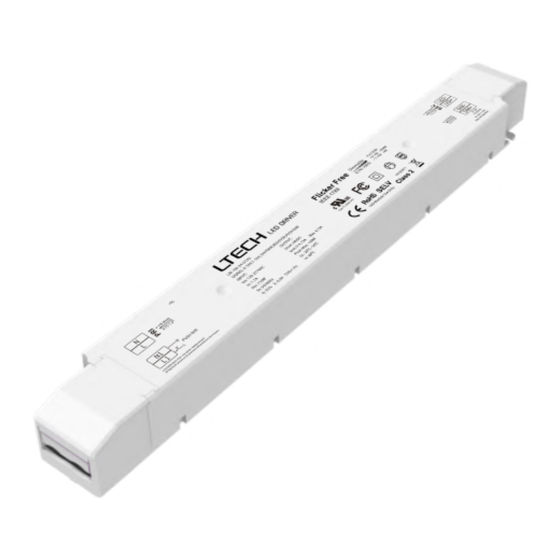

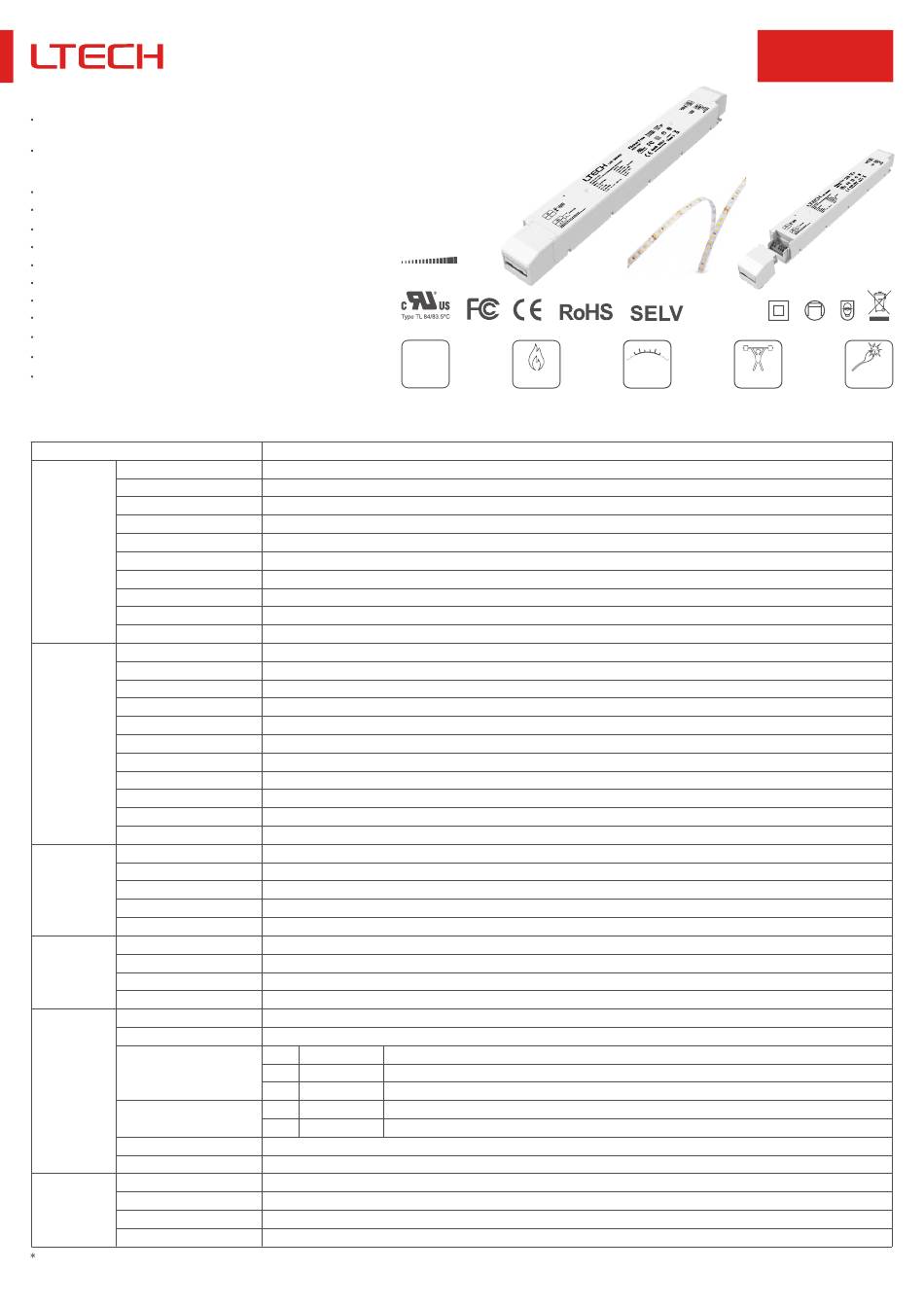

Ltech LM-100-24-U1A2 Manual

Intelligent LED Driver (Constant Voltage)
Small size and light weight. The housing is made from V0 flame retardant PC
materials that SAMSUNG/COVESTRO uses.
The clamshell design and screwless type for strain-relief. The design of
dismountable end cap allows you to adjust the length of housing depending
on your needs.
With soft-on and fade-in dimming function, enhancing your visual comfort.
High frequency exemption level.
Dimming from 0~100%, down to 0.1%.
Automatically recognize 0-10V and 1-10V input signals.
Ultra-low consumption of 0-10V ports < 0.05mA.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the power life.
Overheat, over voltage , overload, short circuit protection and automatic recovery.
Suitable for indoor light applications ofⅠ /Ⅱ/Ⅲ type.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Technical Specs
Model
Output Voltage
Output Voltage Range
Output Current
Output Power
Output Power Range
OUTPUT
Strobe Level
PWM Frequency
Dimming Range
Overload Power Limitation
Ripple & Noise
Dimming Interface
Input Voltage
Frequency
Input Current
Power Factor
INPUT THD
Efficiency (typ.)
Standby Power Loss
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
Storage Temperature,Humidity
ENVIRONMENT
Temperature Coefficient
Vibration
Overheat Protection
Overvoltage Protection
PROTECTION
Overload Protection
Short Circuit Protection
Withstand Voltage
Isolation Resistance
SAFETY
Safety Standards
&
EMC
EMC Emission
EMC Immunity
Strobe Test Standard
Gross weight(G.W)
Dimensions
OTHERS
Package size
Carton Size
The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the overloaded
protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), so that we can prepare them with special procedures.
Flicker-free
IEEE 1789
Dimmable：
0.1%~100%
Use only within an enclosure.
0-10V
PUSH DIM
LM-100-24-U1A2
24Vdc
24Vdc±0.5Vdc
Max. 4.13A
Max. 100W
0-100W
High frequency exemption level
3600Hz
0~100%, down to 0.1%
≥90%
Switch ripple≤150mV, noise≤500mV
0-10V(1-10V/10V PWM/RX), Push DIM
120-277Vac
50/60Hz
Max. 1.1A/120Vac, 0.55A/230Vac, 0.45A/277Vac
PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)
120Vac@THD＜5%, 230Vac@THD＜8%, 277Vac@THD＜11% (at full load)
93%
<0.5W
Cold start 45A/230Vac (Test twidth = 840us under 50% Ipeak)
L-N: 2KV
Max. 0.5mA
ta: -20~50°C tc: 85°C
20-95%RH, non-condensing
-40~80°C, 10-95%RH
±0.03%/°C(-20~50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Shut down the output when non-load voltage≥28V, and recover automatically
Shut down the output when current load≥99%, and recover automatically
Enter hiccup mode if short circuit occurs, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
UL America UL8750
CUL Canada CSA C22.2 NO. 250. 13
EN61347-1, EN61347-2-13, EN62384
CE European Union
UL America FCC part 15
CE European Union EN55015, EN61000-3-2, EN61000-3-3, EN61547
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
430g
352×43×30mm(L×W×H)
355×44×33mm(L×W×H)
370×340×93mm(L×W×H) 20pcs/ctn 9.4kg±5%/ctn
The certification icon represents on-going certification applications only, and final certification qualification is subject to actual products.
Overheat
protection
— 01 —
0-10V
LM-100-24-U1A2
Push DIM
Class 2
V
Over voltage Overload
protection protection
Short circuit
protection
