Ltech Tuya ZigBee Manual

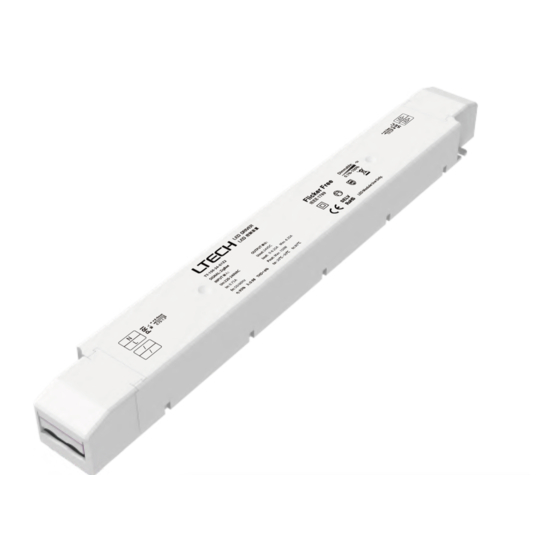

Intelligent Tunable White LED Driver
Small size and light weight. The housing is made from V0 flame
retardant PC materials from SAMSUNG/COVESTRO.
The clamshell design and screwless type for strain-relief. The design
of dismountable end cap allows you to adjust the length of housing
depending on your needs.
Use Zigbee protocol and Tuya application protocol with high networking
capability.
Adopt constant power design that can adjust different color temperature
while brightness remains the same.
2 SELV output channels with common anode.
With soft-on and fade-in dimming function, enhancing your visual comfort.

High frequency exemption level.
Dimming from 0~100%, down to 0.1%.
Class 2 LED driver, Safety Extra Low Voltage (SELV).
Comply with the EU's ErP Directive, standby power consumption < 0.5W.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the
life of the LED driver.
Overheat, over voltage, overload, short circuit protection and automatic
recovery.
Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).

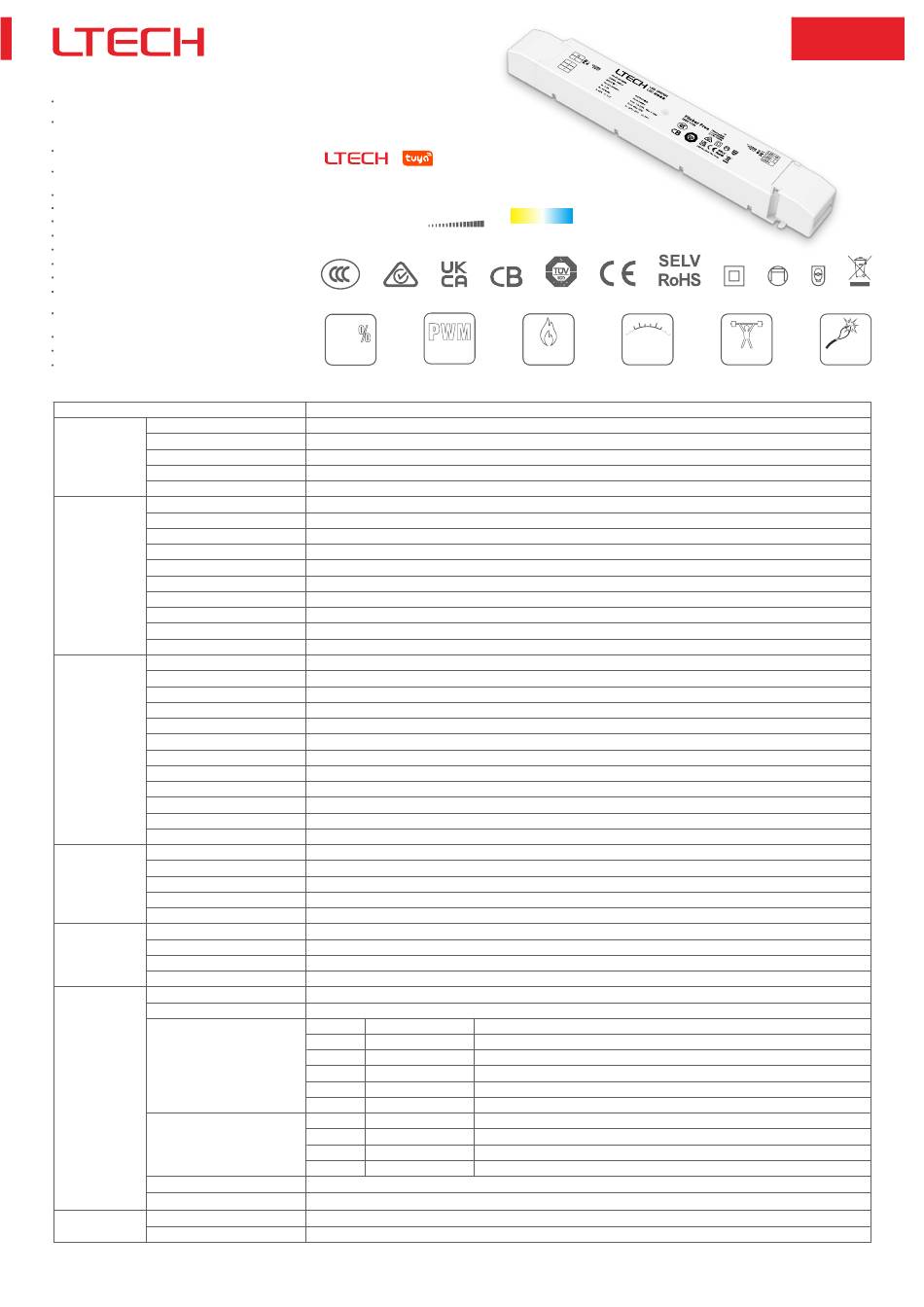

Technical Specs
Model
Output Type
Dimming Interface
Features
Output Feature
Protection Grade
Insulation Grade
Output Voltage
Output Voltage Range
Output Current


Output Power


Output Power Range
OUTPUT
Strobe Level
Dimming Range
Overload Power Limitation
Ripple
PWM Frequency
DC Voltage Range
AC Voltage Range
Rated Voltage
Frequency
Input Current
Power Factor
INPUT
THD
Efficiency (typ.)
Standby power consumption
Inrush Current
Anti Surge
Leakage Current
Working Temperature
Working Humidity
ENVIRONMENT Storage Temperature/Humidity
Temperature Coefficient
Vibration
Overheat Protection
Overload Protection
PROTECTION
Short Circuit Protection
Overvoltage Protection
Withstand Voltage
Isolation Resistance
Safety Standards
SAFETY
&
EMC
EMC Emission
EMC Immunity
Strobe Test Standard
Life Time
OTHERS
Warranty
(Constant Voltage)
|
Strategic Partnership
Flicker-free Dimmable:
IEEE 1789
0.1%-100%
Achieve the high frequency exemption level
The certification icon represents on-going certification applications only, and final certification qualification is subject to actual products.
0.1
Digital
Dimming Dept
Dimming
TY-75-24-G2Z2
Constant Voltage
ZigBee
Isolation
IP20
Class II (Suitable for Class I /II/III light fixtures)
24Vdc
24Vdc
±
0.5Vdc
Max. 3.125A
Max. 75W
0~75W
High frequency exemption level
0~100%, down to 0.1%
≥102%
≤300mV
3600Hz
220-280Vdc
198-264Vac
220-240Vac
50/60Hz
Max.0.4A/230Vac
PF>0.97/230Vac (at full load)
THD<14%@230Vac (at full load)
> 92%
< 0.5W
Cold start 40A@230Vac (Test twidth=372us tested under 50% Ipeak)
L-N: 2KV
Max. 0.5mA
ta: -20
~
50°C


tc: 80°C
20
~
95%RH, non-condensing
-40
~
80°C, 10~95%RH
±0.03%/°C (0-50°C)
10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
Shut down the output when current load≥102%, and recover automatically
Enter hiccup mode if short circuit occurs, and recover automatically
Shut down the output when non-load voltage≥26V, and recover automatically
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
CCC China GB19510.1，GB19510.14
Germany
TUV EN61347-1，EN61347-2-13，EN62493
CB IEC61347-1，IEC61347-2-13
CB member states
RCM Australia AS/NZS61347.1，AS61347-2-13
European Union
CE EN61347-1，EN61347-2-13，EN62493
BS EN61347-1，BS EN61347-2-13，BS EN62493
UKCA Britain
CCC China GB/T17743，GB17625.1
EN IEC 55015，EN IEC 61000-3-2，EN61000-3-3
RCM Australia
European Union
CE EN IEC 5501，EN IEC 61000-3-2，EN61000-3-3
BS EN IEC 55015，BS EN IEC 61000-3-2，BS EN 61000-3-3，BS EN 61547
UKCA Britain
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
50000h
5 years
1
DIM / CT
V
Overvoltage
Overheat
过温保护
Protection Protection
Tuya ZigBee
TY-75-24-G2Z2
Over Load Short Circuit
Protection Protection
