- Page 1 Super Panel 4S Model:SP-GW-4S Manual www. ltech-led .com...
-
Page 2: Application Diagram
Dry contact Relay Music player module Bluetooth 4.2 Bluetooth Mesh Bluetooth speaker Wireless switch Bluetooth remote More Super Panel 4S Bluetooth Mesh Mesh Phone user 1 Intelligent Lighting Constant Voltage Constant Current Smart Switch Smart Sensor Wireless + Wired Driver... -
Page 3: Product Introduction

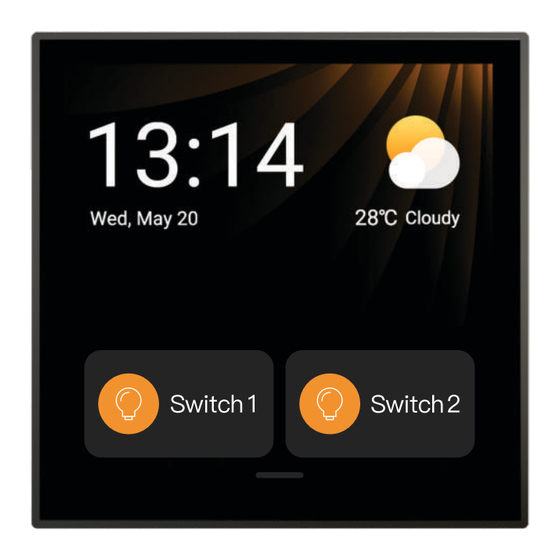

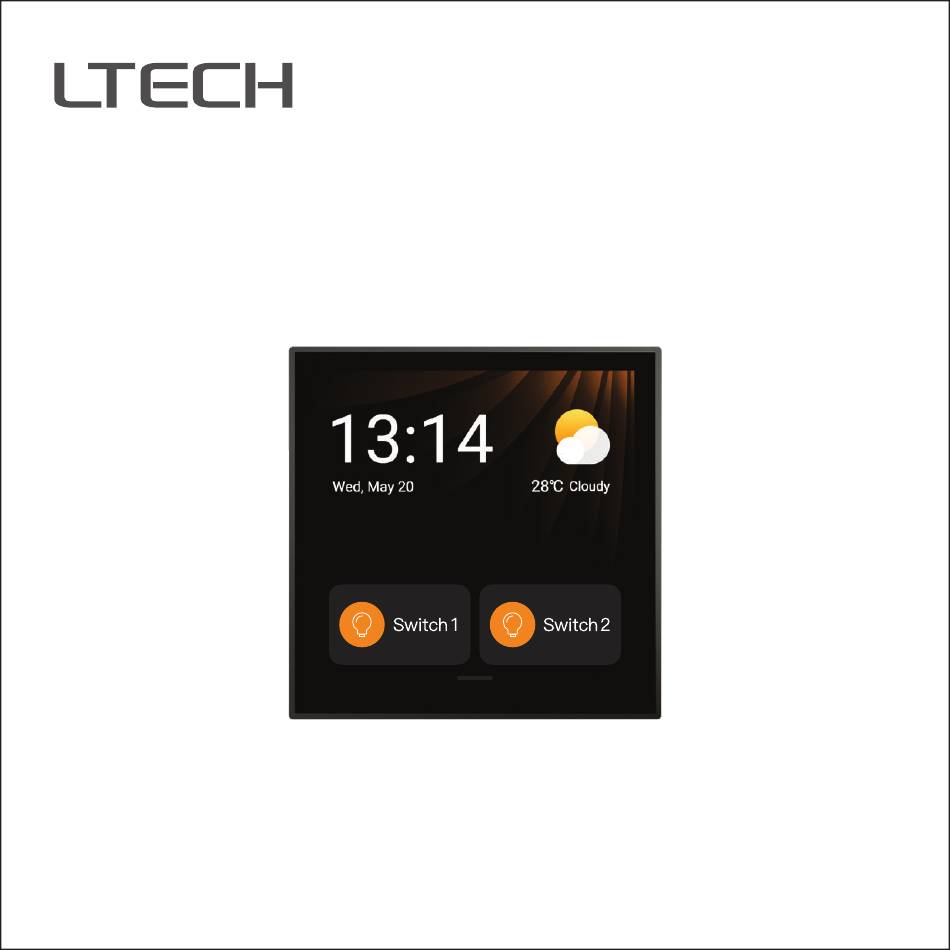

Product Introduction Super Panel 4S is a 4-inch smart home touchscreen control panel. It has built-in smart gateway functions and is compatible with Bluetooth 5.0 SIG Mesh, 2.4 G+5G dual-band Wi-Fi and Ethernet communication. Super Panel 4S can act as a 2-channel relay to directly control load lamps. With IR capability, it is capable of controlling all your IR home appliances and turning traditional home appliances into smart ones. -
Page 4: Product Overview
Product Overview IR emitter Load wire Power cord Light sensor Proximity sensor Speaker Network socket Reset key System reboot: Use an ejection pin to long press the reset key for 6s, (System reboot/ and wait for the system to restart. Microphone Restore factorysettings) Restore factory settings: Use an ejection pin to long press the reset... -
Page 5: Installation Steps
Installation Steps 1.Turn off the circuit breaker and remove any concrete or corrosion that are inside the 86 type wall box.Trim each wire in the wall box to about 10cm in length. 2.Attach the live line to L port of the panel, the null line to N port and the load wires of lights to L1/L2 port. - Page 6 3.Insert the KM4 screws into the holes on two sides of the panel and secure the screws to fit the switch to the wall with a screwdriver. 4.Slant the bottom of the panel cover and snap it to the panel frame. Then secure the panel cover to the frame from the bottom with a KM2 screw.
-
Page 7: Recommended Applications
2.Connect to a traditional lamp and add Super Panel 4S to the APP , so you can intelligently control the lamp. 13:14 Super Panel 4S Lamp 3.Add Super Panel 4S to the APP to realize remote control ( via 4G,5G, Wi-Fi) + local control of the lamp. 13:14 Lamp Super Panel 4S Bluetooth driver 4.Control the lamp either with APP, Super Panel 4S or a remote, a wireless switch . - Page 8 Instructions to Use Super Panel 4S ① After devices and scenes are added on Super Panel 4S the system will automatically generate different types of pages. You 'll be able to swipe left and right to switch to any device page.
- Page 9 App Operating Instructions 1. Register an account 1.1 Scan the QR code below with you mobile phone and follow the prompts to complete the app installation Scan and download the App 1.2 Open the App and log in or register an account.
- Page 10 2. Bind your account Power on the Super Panel 4S and wait for a while to start it. Follow the page guidelines of panel to connect the Wi-Fi. Open the APP and click “+” icon in the upper right corner and access the “Add device”...
- Page 11 3. Add infrared devices Go to the Super Panel 4S interface and click “Infrared appliance“ ,then tap “+” icon in the upper right corner. Follow the prompts in APP to select your infrared home appliances according to the appliance type and brand. After completing the setting, you can directly...
- Page 12 Please refer to manuals of related products. Follow the prompts to add the devices you want and access the Super Panel 4S interface. Click “Device” to go to “Displayed devices” interface. Then click the icon in the upper right corner to pick the devices your want to...
- Page 13 “Add action” to set up the action and delay time you want. Display scenes: Go to the Super Panel 4S control interface and click “Scene” to access the “Display scenes” page. Then click the icon in the upper right corner to add the scenes...
- Page 14 6. Set up the relay (Switch 1/Switch 2) In the “Room” interface,click the blank area of the Super Panel 4S card to get a popup and control Switch 1/Switch 2 quickly. Or you can go to the Super Panel 4S interface to turn Switch 1/Switch 2 on or off by tapping them.
- Page 15 FAQs 1. How to change user accounts? Super Panel 4S has one standard user account only. The Super Panel 4S that has been added needs to be deleted by the original owner before your login. 2. How to restart the device? Use an ejection pin to long press the reset key for 6s, and wait for the system to restart.
-
Page 16: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
