Summary of Contents for AJA HD10AM

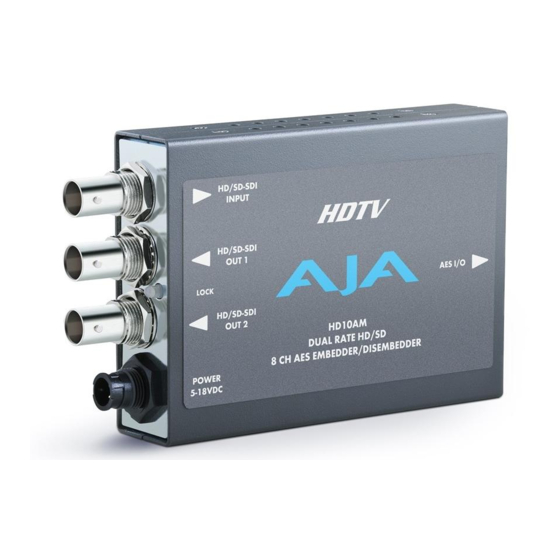

- Page 1 HD10AM Mini-Converter HD/SD 8-Channel AES Embedder/Disembedder Installation & Operation Guide Version 1.0r2 Published: July 10, 2014...
-
Page 2: Table Of Contents
HD10AM Simplified Block Diagram........ -
Page 3: Notices
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™... -
Page 4: Chapter 1: Introduction
With the SRC DIP switch setting ON, AES inputs are sample rate converted to a 48KHz rate synchronous to the video input. The HD10AM automatically detects and configures to the input video standard. The Lock LED glows red for HD and green for SD formats. -
Page 5: Features
• Supplied breakout cable for balanced AES - XLR connectors • HD/SD SDI input • 2 HD/SD SDI outputs (following input) • DIP switch configuration • Uses universal input +5V power supply AJA model DWP-U-R1 (included) HD10AM Simplified Block Diagram Embed 1/2, 3/4, 5/6, 7/8 Embed Group 1/2, 3/4... -
Page 6: Hd10Am I/O Connections
Not Shown To Scale User Controls The HD10AM has an 8-switch DIP accessible through a cut-out in the bottom of the unit. The DIP switches are used to configure the unit’s audio embedding and disembedding, and control ancillary data. DIP Switch Setting... -
Page 7: Installation
Installation Typically, HD10AM installation consists of the following: 1. Disconnect +5VDC from the converter. 2. Set the DIP switches for the desired equipment configuration. 3. Connect video equipment to the converter BNCs. 4. Connect the breakout audio cable to the converter. - Page 8 Figure 1. Breakout Cable Pinouts HD10AM Mini-Converter v1.0r2 www.aja.com...
-
Page 9: Chapter 2: Operation
Chapter 2: Operation DIP Switches The HD10AM DIP switches configure the audio embedding and disembedding functions, and control ancillary data. DIP Switch Setting LEFT RIGHT NOTE: DIP Switch 8 (AUX) affects the operation of DIP Switches 1-4. HD10AM Mini-Converter v1.0r2... -
Page 10: Dip Switch Settings
DIP Switch Settings DIP switch settings used to configure various functions are described below. Table 1. HD10AM DIP Switch Setting Descriptions SWITCH FUNCTION DIP Set LEFT (default) DIP Set RIGHT Audio Embedding (ON) Overwrite or embed new channel (OFF) If AUX (SW 8) is also Left (OFF): Pass any for Channels 1/2 1/2 packets. -
Page 11: Switch 5 Embedded Channel Mapping
Left (1/2) 1 —> 2 —> 3 —> 4 —> 5 —> 6 —> 7 —> 8 —> Right (3/4) 1 —> 2 —> 3 —> 4 —> 5 —> 6 —> 7 —> 8 —> HD10AM Mini-Converter v1.0r2 www.aja.com... -
Page 12: Switch 6 Disembedding Channel Mapping
Input Group Left (1/2) 1 —> 2 —> 3 —> 4 —> 5 —> 6 —> 7 —> 8—> Right (3/4) 9 —> 10 —> 11 —> 12 —> 13 —> 14 —> 15 —> 16 —> HD10AM Mini-Converter v1.0r2 www.aja.com... -
Page 13: Appendix A: Specifications
• AUX (pass or delete incoming ancillary data) Size • 5.8" x 3.1" x 1 (147 x 79 x 25mm) Power • Uses AJA Power Supply model DWP-U-R1 (included) • 100-240V, 50/60Hz Universal Input • +5V DC regulated, 7.5 watt capacity HD10AM Mini-Converter v1.0r2... -
Page 14: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. HD10AM Mini-Converter v1.0r2 www.aja.com... -
Page 15: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HD10AM Mini-Converter v1.0r2 www.aja.com... -
Page 16: Korean Kcc Compliance Statement
For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HD10AM Mini-Converter v1.0r2 www.aja.com... -
Page 17: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HD10AM Mini-Converter v1.0r2 www.aja.com... - Page 18 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HD10AM Mini-Converter v1.0r2 www.aja.com...
- Page 19 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HD10AM Mini-Converter v1.0r2 www.aja.com...
- Page 20 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HD10AM Mini-Converter v1.0r2 www.aja.com...
- Page 21 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HD10AM Mini-Converter v1.0r2 www.aja.com...
- Page 22 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 23 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. HD10AM Mini-Converter v1.0r2 www.aja.com...
-
Page 24: Warranty Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.
