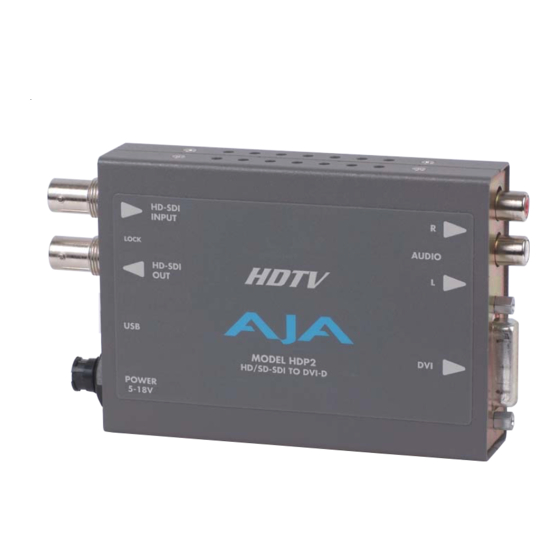

- Page 1 HDP2 Mini-Converter HD/SD-SDI to DVI-D Installation & Operation Guide Version 1.4r1 Published: February 19, 2015...
-
Page 2: Table Of Contents
USB Control and Setup—Using AJA MiniConfig ........ - Page 3 Limited Warranty ..............31 HDP2 Mini-Converter v1.4r1...
-
Page 4: Notices
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™... -
Page 5: Chapter 1: Introduction
(graphics and video), such as LED, LCD, DLP and Plasma monitors (and projectors). Using a very high quality scaling engine, the HDP2 will automatically size 4:3 or 16:9 inputs to many DVI-D monitors. For appropriate monitor configurations, scaling is automatically 1 to 1—for example, displaying 1920x1080 video on a WUXGA (1920x1200) monitor. -
Page 6: About Monitor Compatibility
• 5 year warranty About Monitor Compatibility The HDP2 is designed to work with most DVI-D monitors. HDMI monitors are also supported with a standard, inexpensive DVI-to-HDMI cable (user supplied). The HDP2 uses the industry standard EDID communication protocol (within the DVI or HDMI link) to communicate with the monitor, and then adjust the HDP2’s internal scaling engine to... -
Page 7: Optimal Performance With Hp Lp2480Zx Dreamcolor
Optimal Performance with HP LP2480zx DreamColor When using the HDP2 with an HP LP2480zx, the best results are obtained by using the default HDP2 “Auto” selections (no action required—unless you’ve changed the factory defaults using the Mini Config software supplied). -
Page 8: Video Scaling
Video Scaling As shown in the graphic below, the HDP2 will scale the input video to the best fit for a given monitor and video input. In cases where the input video and the monitor are already the same or similar, the HDP2 automatically turns off scaling. For example, a 1920 x1080 video and a 1920 x1200 monitor will not be scaled. -
Page 9: Frame Rates
Frame Rates When the HDP2 is manually configured for a particular output frame rate, the output will run in lock-step with the video input. For best results, (without any added or dropped frames), select an output frame rate that matches the incoming video frame rate. -
Page 10: Installation
5. The converter will now run using the default factory settings. If you wish to alter the factory settings, you’ll need to: • Install the AJA MiniConfig software (supplied on CD) on your computer • Attach the converter via USB •... -
Page 11: Chapter 2: Operation
Chapter 2: Operation USB Control and Setup—Using AJA MiniConfig The HDP2 can usually be used right out of the box for most applications since it is designed to recognize inputs and perform standard actions automatically by default. However you can also manually configure the unit using a supplied software application for PCs and Macs called “MiniConfig. -
Page 12: Pc Startup
PC Startup To run MiniConfig on a PC, find the AJA MiniConfig in the program list and locate the AJA MiniConfig application. Figure 2. PC MiniConfig Startup Mac Startup To run MiniConfig on a Mac, double-click the Applications folder and locate the AJA MiniConfig application. - Page 13 Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- MiniConfig can manage multiple AJA Mini-Converters connected via USB—even when Converters: they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner.
-
Page 14: Tabbed Screens
The selections on this screen configure the output video. In all cases, selecting “Auto” allows the HDP2 to conform the output to best serve the attached monitor. This is handled automatically when the HDP2 reads the capabilities indicated by the attached monitor. -
Page 15: Audio Tab Screen
Choose Auto to let the HDP2 choose based on the attached output device’s capabilities, 1:1 for no scaling, or Scale, to let the HDP2 scale for the attached monitor. Displaying 1:1 only works properly when it is possible to display the entire unscaled raster. For example, it is not possible to display a 1920 x 1080 input on a 1600 x 1200 monitor. -
Page 16: Update Tab Screen
Update Tab Screen Use this Update screen to view the software version currently installed on the HDP2 or install new software. NOTE: When discussing Mini-Converters, “Firmware” is software that will be stored in the Mini- Converter’s non-volatile memory and used when it is powered up. This is something different than the Mini Config application software. -
Page 17: Info Tab Screen
Assembly : this is the factory assembly number. Serial Number: this is the factory set unique serial number of your HDP2. If you ever call AJA Support for service, you may be asked for this number. HDP2 Mini-Converter v1.4r1 www.aja.com... - Page 18 HDP2 Mini-Converter v1.4r1 www.aja.com...
-
Page 19: Appendix A: Specifications
• USB 2.0 port used with supplied cable and software application to configure device via PC/Mac Physical Power • +5 to 18V DC regulated,7 watts max • AJA external power supply model DWP-U-R1 (included): • 100-240V, 50/60Hz universal input Size 5.8” x 3.1” x 1” (147mm x 79mm x 25mm) HDP2 Mini-Converter v1.4r1... -
Page 20: Environment
0 to 40 degrees C (32 to 104 degrees F) Operating Relative Humidity : 10-90% non-condensing Operating Altitude: <3,000 meters (<10,000 feet) Safe Storage Temperature -40 to 60 degrees C (-40 to 140 degrees F) (Power OFF): HDP2 Mini-Converter v1.4r1 www.aja.com... -
Page 21: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. HDP2 Mini-Converter v1.4r1 www.aja.com... -
Page 22: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HDP2 Mini-Converter v1.4r1 www.aja.com... -
Page 23: Korean Kcc Compliance Statement
For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HDP2 Mini-Converter v1.4r1 www.aja.com... -
Page 24: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HDP2 Mini-Converter v1.4r1 www.aja.com... - Page 25 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HDP2 Mini-Converter v1.4r1 www.aja.com...
- Page 26 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HDP2 Mini-Converter v1.4r1 www.aja.com...
- Page 27 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HDP2 Mini-Converter v1.4r1 www.aja.com...
- Page 28 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HDP2 Mini-Converter v1.4r1 www.aja.com...
- Page 29 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 30 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. HDP2 Mini-Converter v1.4r1 www.aja.com...
-
Page 31: Warranty Information
Warranty Information Limited Warranty AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
