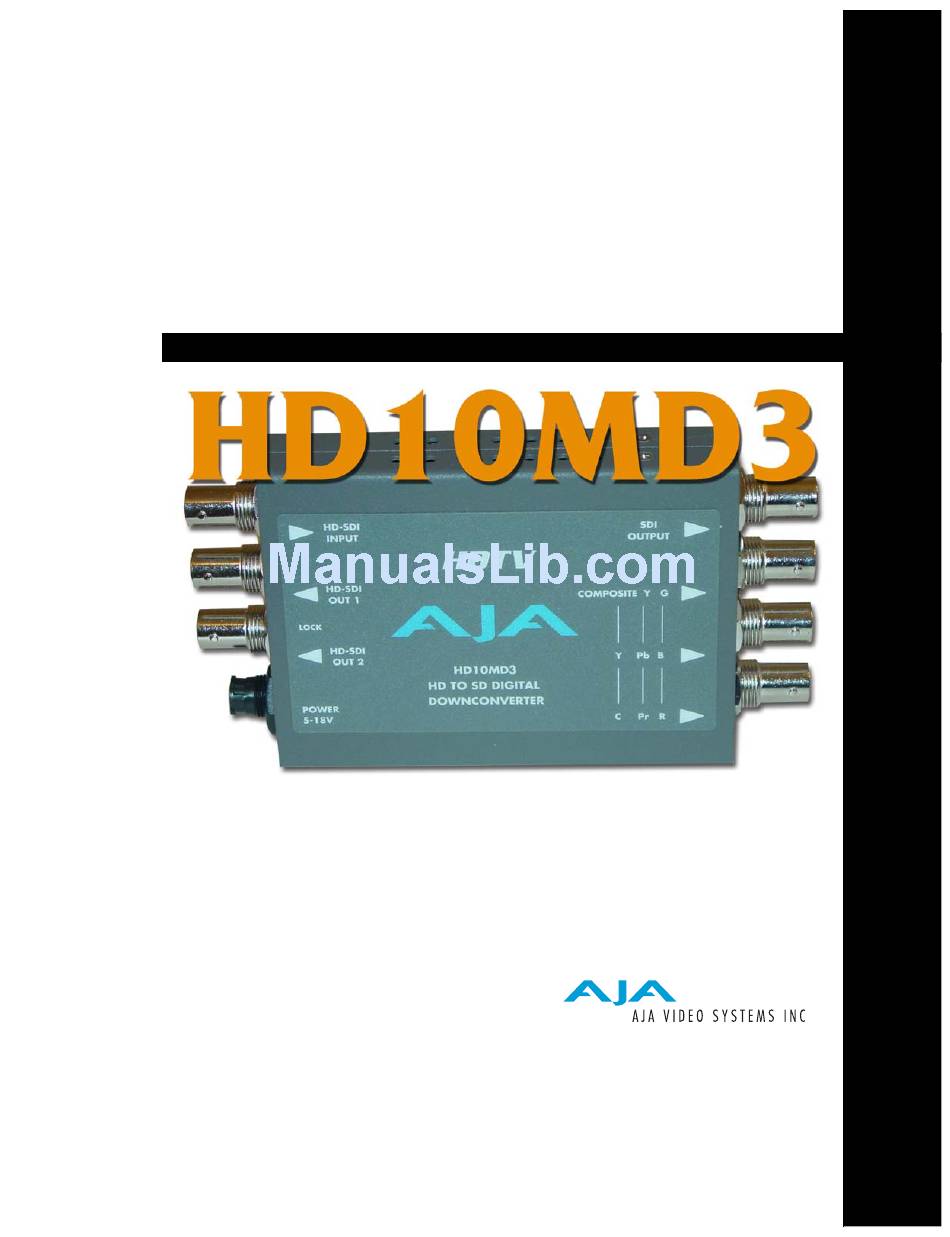

HD10MD3 HDTV
HD to SDI Down Converter

User Manual

August 19, 2005
P/N 101638-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD10MD3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJA HD10MD3

Summary of Contents for AJA HD10MD3

  • Page 1: User Manual

    HD10MD3 HDTV HD to SDI Down Converter User Manual August 19, 2005 P/N 101638-01...

  • Page 2: Fcc Emission Information

    AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.

  • Page 3: Block Diagram

    The AJA HD10MD3 is a miniature digital downconverter for converting HD-SDI video to standard definition SDI and analog component composite video. The HD10MD3 uses a full 10-bit data path and a multi-point interpolation to produce excellent quality down-converted video. In addition, the HD10MD3 converts either 23.98/24Hz 1080p23.98sf or 1080p24sf to a 59.94 Hz output video using the...

  • Page 4: User Controls

    Power Input HD10MD3, Side View User Controls The user interface for the HD10MD3 is an 8- switch DIP accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure outputs, pedestal, blanking, and enable or disable noise reduction.
  • Page 5 AJA HD10MD3 HD to SDI Down Converter User Manual — User Controls Switch 2—Selects Type of Component Video on 3 Output BNCs LEFT RIGHT Selects YPbPr Selects RGB Switch 3—Turns Pedestal OFF/ON. In YPbPr Mode, use BETA Levels LEFT RIGHT Pedestal Off Pedestal On.

  • Page 6: Installation

    1. disconnect +5VDC from the convertor 2. configure the DIP switch for the desired equipment configuration and video formats 3. connect video equipment to the convertor BNCs 4. apply +5VDC power to the converter (AJA power supply model DWP) Specifications Item Specification...
  • Page 7 AJA HD10MD3 HD to SDI Down Converter User Manual — Specifications Item Specification Frequency Response Y +0, -.5db to 30 MHz C +/- .25db to 15 MHz User Controls ExternalDipswitch: Output Video Format 4:3/16:9 MonitorSelect Letterbox/Crop Pedestal (Output) 4:3 Safe-Zone Graticule Overlay Size 5.8"...
