Summary of Contents for AJA HD10MD4

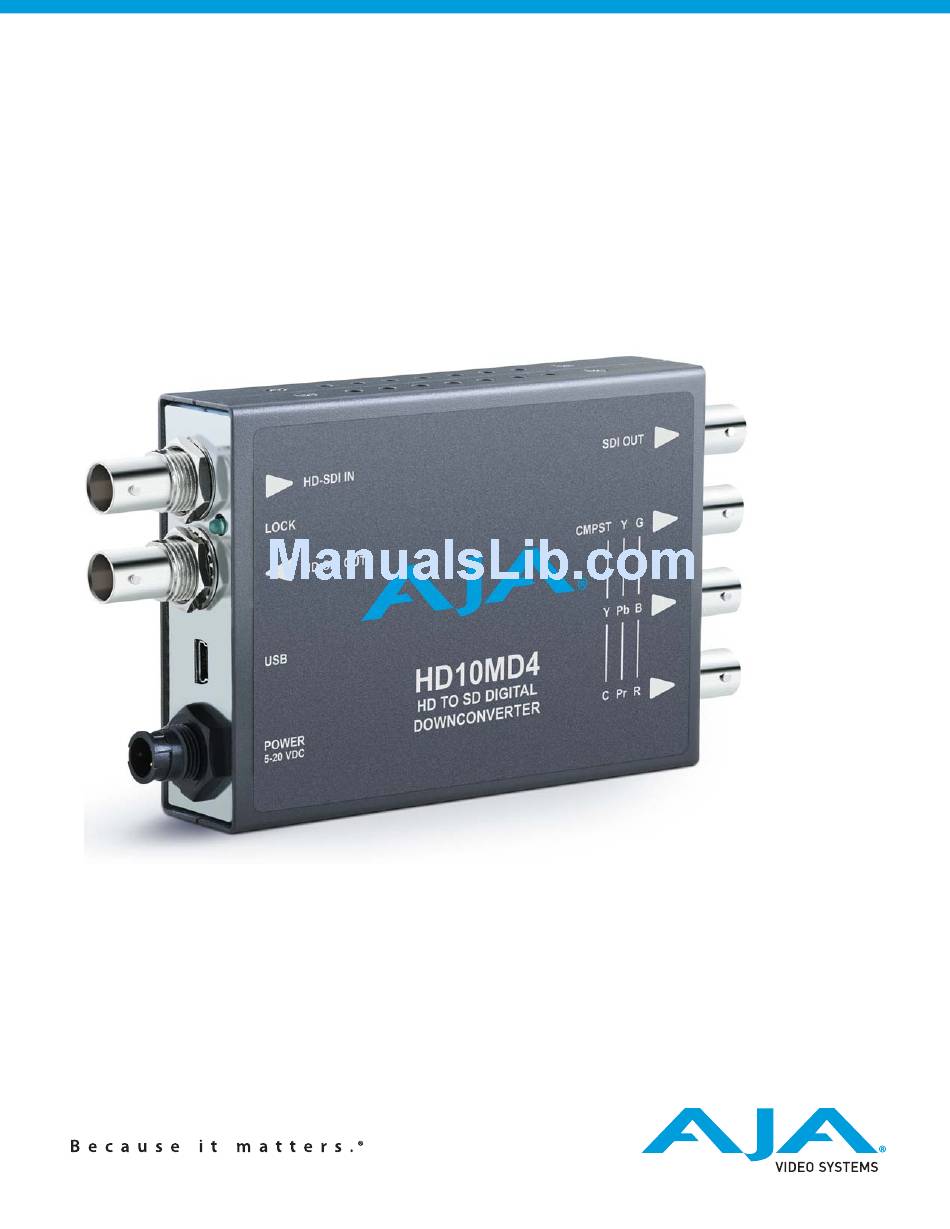

- Page 1 HD10MD4 Mini-Converter HD to SD Down Converter Installation & Operation Guide Version 1.1 Published: January 11, 2016...
-
Page 2: Table Of Contents
USB Control and Setup—Using AJA Mini-Config........ - Page 3 Index............32 HD10MD4 Mini-Converter v1.1...
-
Page 4: Notices
AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products. -
Page 5: Chapter 1: Introduction
16:9 standard definition monitors. For 4:3 monitors, the output can be formatted for either the Letterbox or Crop modes. The HD10MD4 can also receive SD video and output a different aspect ratio. The HD10MD4 simultaneously passes video to both the SDI and analog outputs. -
Page 6: Hd10Md4 Simplified Block Diagram
• Uses universal input +5V power supply AJA model DWP-U-R1 (included) NOTE: The HD10MD4 automatically switches to PAL anytime the input is 1080i 50, 1080PsF 25 or 1080p25. All other frames rates have an NTSC output: 59.94, 29.97 and 23.98. -
Page 7: Installation
Min-Config you’ll need to: • Set DIP switch 1 ON (right) to permit remote Mini-Config control. • Install the AJA Mini-Config software on your computer. • Attach the unit via USB to your computer. • Make your changes using the Mini-Config setup screens. This process is detailed in "Chapter 2: Operation on page... -
Page 8: Chapter 2: Operation
Chapter 2: Operation Default Operational Settings The HD10MD4 Mini-Converter ships from the factory with the following configuration (all DIP switches Off - Left): • Local (DIP switch) control • Component video • YPbPr format • Pedestal Off • Crop Off •... -
Page 9: Dip Switch Settings
DIP Switch Settings Table 1. HD10MD4 DIP Switch Setting Descriptions SWITCH FUNCTION DIP Set LEFT, OFF (default) DIP Set RIGHT, ON Remote LOCAL (DIP switch) control REMOTE (Mini-Config) control Analog Selects Component output Selects composite video output output (CMPNT) (CMPST) -
Page 10: Usb Control And Setup-Using Aja Mini-Config
RIGHT USB Control and Setup—Using AJA Mini-Config Your AJA Mini-Converter can be used right out of the box for some applications since it is designed to recognize inputs and perform standard actions automatically by default. However, to use its full capability, you must use AJA’s Mini-Config software application for PCs and Macs. -
Page 11: Installing Mini-Config
5. Click Next to begin. Answer the questions in the subsequent dialogues. When finished, an AJA Mini-Config shortcut will be installed on the desktop, and you will be able to locate the Mini-Config application in the AJA folder in the Programs listing. -
Page 12: Mac Installation
NOTE: Macintosh computers must be Intel-based (G5, G4 and earlier models will not work with Mini- Config). 1. Download the application from the AJA website (select the Apple icon on the Mini- Config Support webpage). 2. Open the AJA_MiniConfig folder. -
Page 13: Pc Startup
PC Startup To run Mini-Config on a PC, double-click on the AJA Mini-Config icon on your desktop, or open the AJA folder in the program list and click on the AJA Mini-Config application located inside the Mini-Config folder. Mac Startup To run Mini-Config on a Mac, open the Applications folder and locate the AJA Mini- Config application. -
Page 14: Running Multiple Mini-Converters
Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- Mini-Config can manage multiple AJA Mini-Converters connected via USB—even when Converters they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner. -
Page 15: Tabbed Screens
Any changes you make are immediately applied and will be saved, overwriting previous settings. Video Screen Click on the Video tab to view and make changes to the converter’s video processing settings. HD10MD4 Mini-Converter v1.1 www.aja.com... - Page 16 Convert mode (either manually selected or AutoAFD), and with Focus set to Off. When inactive, status is dashes. Focus Zooms to center 720 x 486 (for 525i) or 720 x 576 (for 625i). • Off (default) • On HD10MD4 Mini-Converter v1.1 www.aja.com...
-
Page 17: Analog Output Screen
Pedestal is only active if the analog output is 525i composite, or 525i component and Component Color Space is RGB or YPbPr (Betacam). When inactive, status is dashes. Color Space Selects the desired output video format color space: • YPbPr (SMPTE) (default) • YPbPr (Betacam) • RGB HD10MD4 Mini-Converter v1.1 www.aja.com... -
Page 18: Update Tab Screen
This indicator bar shows the progress of firmware installation. Software Update 1. Check the AJA website for new Mini-Config software for your Mini-Converter. If new Procedure software is found, download it and uncompress the file archive (zip). Here is the URL to use when checking: http://www.aja.com/en/products/mini-converters/mini-config-software... -
Page 19: Info Tab Screen
This is the factory set model name of the Mini-Converter. Assembly: This is the factory assembly number. Serial Number: This is the factory set unique serial number of your Mini-Converter. If you ever call AJA Support for service, you may be asked for this number. HD10MD4 Mini-Converter v1.1 www.aja.com... -
Page 20: Appendix A: Specifications
• Multi-point interpolation, 10-bit processing • 3:2 conversion for 23.98 inputs Frequency Response • Y +0, -.5db to 30 MHz • C +/- .25db to 15 MHz User Controls • External DIP switch • Mini-Config application via USB HD10MD4 Mini-Converter v1.1 www.aja.com... -
Page 21: Physical
Physical Power • +5 to 20V DC regulated, 7 watts max • AJA external power supply model DWP-U-R1 (included): • 100-240V, 50/60Hz universal input Size • 5.8" x 3.1" x 1 (147 x 79 x 25mm) Environment Operating Temperature :... -
Page 22: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. HD10MD4 Mini-Converter v1.1 www.aja.com... -
Page 23: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HD10MD4 Mini-Converter v1.1 www.aja.com... -
Page 24: Recycling Notice
This is a Class B product based on the standard of the VCCI Council (VCCI V-3/2015.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. HD10MD4 Mini-Converter v1.1 www.aja.com... -
Page 25: Translated Warning And Caution Messages
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HD10MD4 Mini-Converter v1.1 www.aja.com... - Page 26 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HD10MD4 Mini-Converter v1.1 www.aja.com...
- Page 27 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HD10MD4 Mini-Converter v1.1 www.aja.com...
- Page 28 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HD10MD4 Mini-Converter v1.1 www.aja.com...
- Page 29 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HD10MD4 Mini-Converter v1.1 www.aja.com...
- Page 30 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
-
Page 31: Warranty Information
Warranty Information Limited Warranty AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. -
Page 32: Index
Installation on PC 11 Operation 13 Running Multiple Converters 14 Screen Description 14 Startup 12 Mini-Config Screen Analog Output 17 Info 19 Update 18 Video 15 Mini-Converter Name 19 Mini-Converter Documentation 10 Name Of Mini-Converter 19 HD10MD4 Mini-Converter v1.1 www.aja.com...
