AJA HDP User Manual

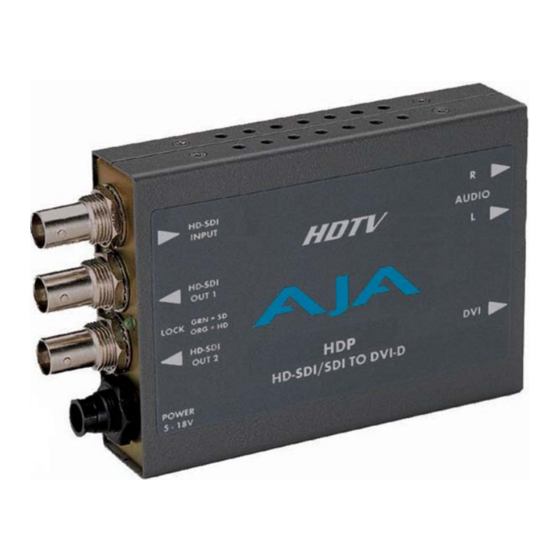

Hdp hd-sdi/sdi to dvi-d and audio converter
Hide thumbs Also See for HDP:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
HDP
HD-SDI/SDI To DVI-D
and Audio Converter

User Manual

September 22, 2006
P/N 101657
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDP and is the answer not in the manual?

Questions and answers

Related Manuals for AJA HDP

Summary of Contents for AJA HDP

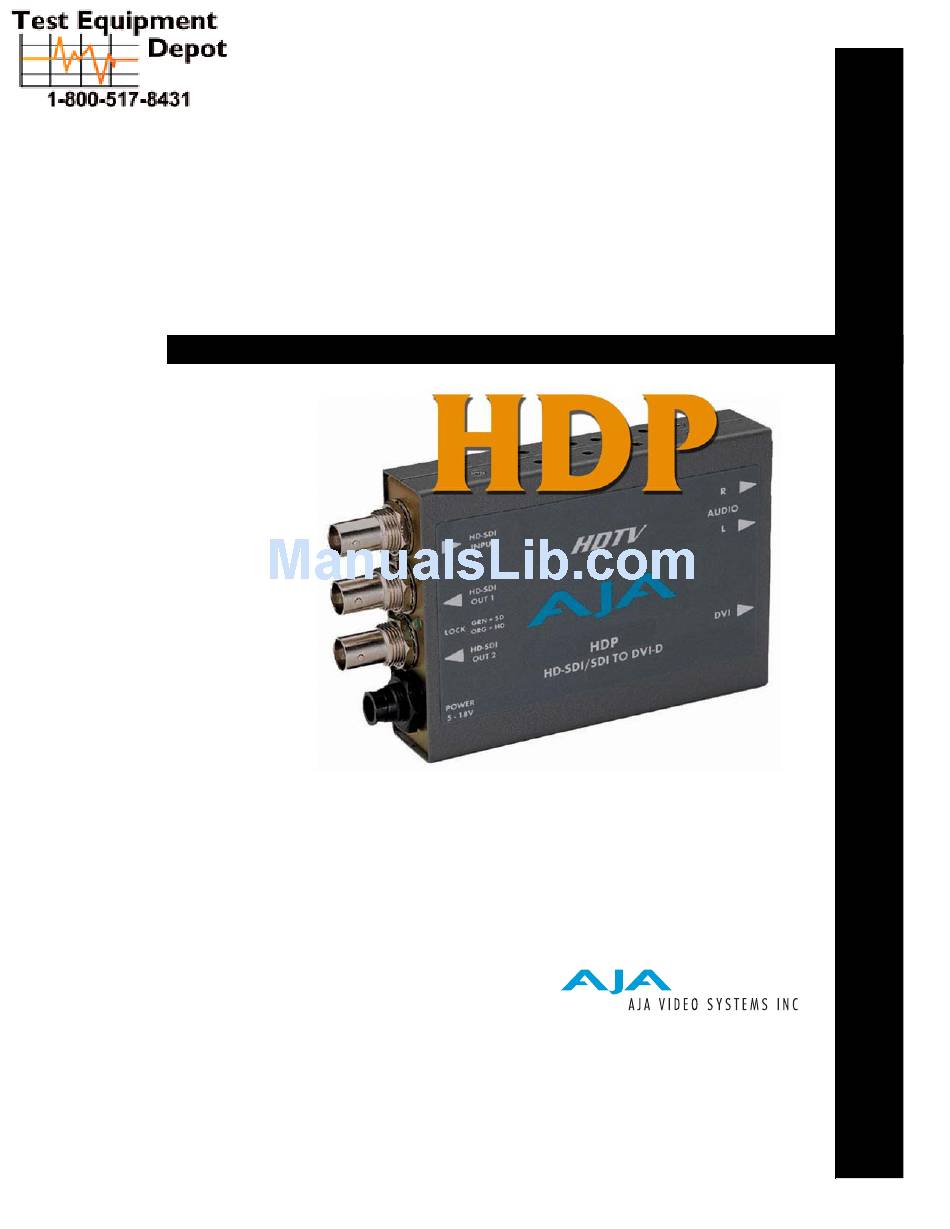

  • Page 1: User Manual

    HD-SDI/SDI To DVI-D and Audio Converter User Manual September 22, 2006 P/N 101657 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com...
  • Page 2 • Corporate displays • Kiosk applications • ...and much, much more! The scaling engine in the HDP makes it a simple and effective way to get full-screen images from a myriad of SD and HD sources. Note: The HDP is not intended as a critical viewing device, for applications such as color-correction, etc.
  • Page 3 About Monitor Compatibility The HDP is designed to work with most DVI-D monitors. The HDP uses the industry standard EDID communication protocol (within the DVI link) to communicate with the monitor, and then adjust the DIP’s internal scaling engine to scale the input video to the native resolution of the monitor.
  • Page 4 • Dell 2405FPW Video Scaling As shown in the graphic below, the HDP will scale the input video to the best fit for a given monitor and video input. In cases where the input video and the monitor are already the same or similar, the HDP automatically turns off scaling.

  • Page 5: Block Diagram

    Vertical Locking Depending on the input frame rate and the capabilities of the monitor in use, the HDP will provide a vertically locked signal to the monitor. Because most DVI monitors have their own internal scaling, the internal scaler of the monitor may or may not lock vertically to the HDP output.

  • Page 6: User Controls

    AJA HDP HD-SDI/SDI to DVI-D and Audio Converter User Manual — I/O Connections I/O Connections 2 Channel Unbalanced Analog Audio SD/HD-SDI Input (RCA Jacks) SD/HD-SDI Loop Output Output 1 DVI Connector SD/HD-SDI Loop Output 2 + 5-18VDC Power Input HDP Converter...
  • Page 7 Switch 1 SCALE—Turns Scaling On or Off Normal Operation Turns scaling off; the picture will output 1:1. Note: only works when it is possible to display the entire unscaled raster For example, it is not possible to display a 1920 x 1080 input on a 1600 x 1200 monitor.

  • Page 8: Internal Jumper

    4 is in the OFF position. To access this jumper, remove the four phillips screws securing the back side of the HDP case (the side having the DIP switch access hole in it). Once the case cover is removed, locate the jumpers next to the two stereo RCA audio jacks.

  • Page 9: Specifications

    800 x 600 — SVGA 848 x 480 — Plasma Note: for resolutions not listed 852 x 480 — Plasma here, the HDP defaults to 1024 x 768 1024 x 600 — WSVGA 1024 x 768 — XGA 1280 x 720 — HDTV 1280 x 768 —...
