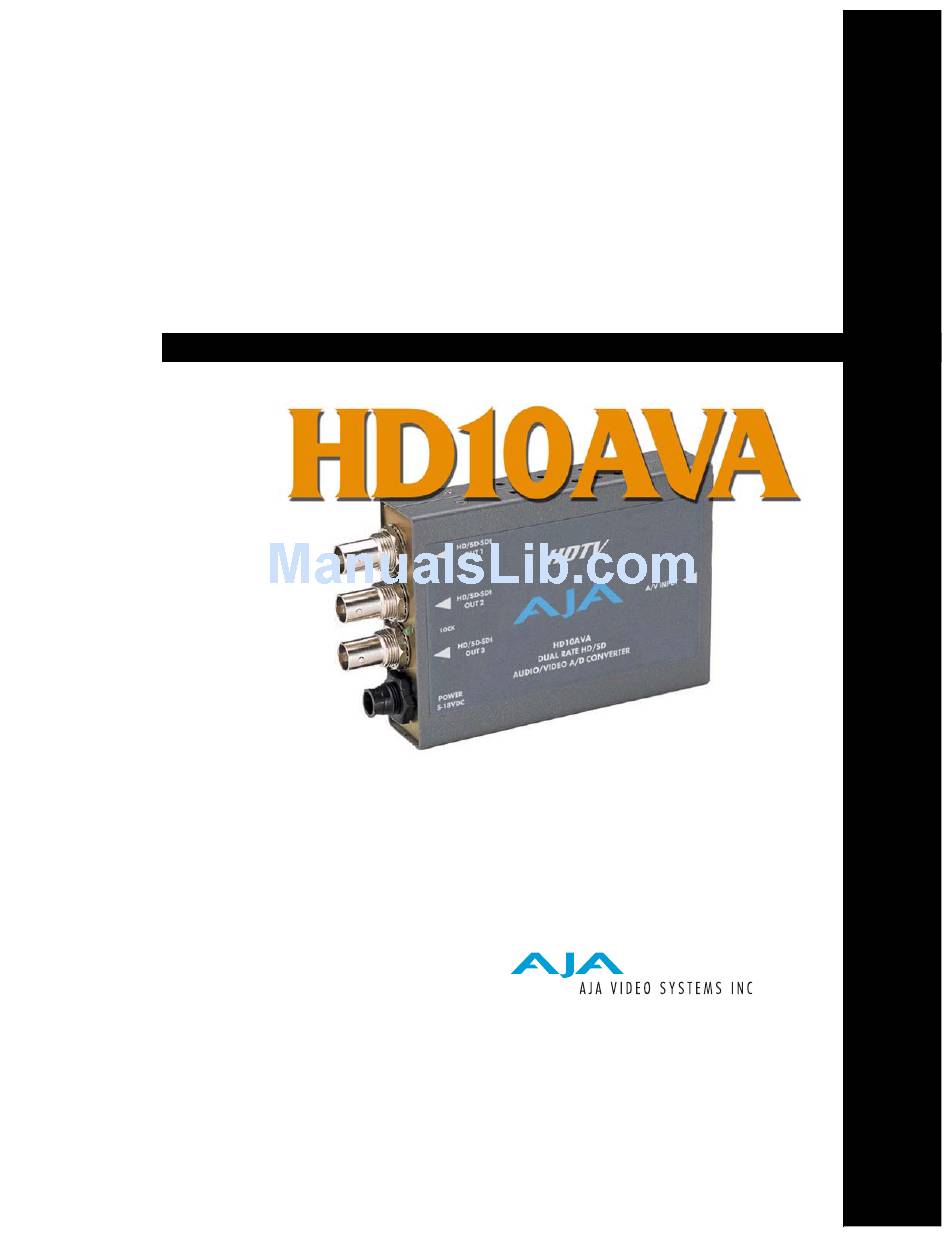

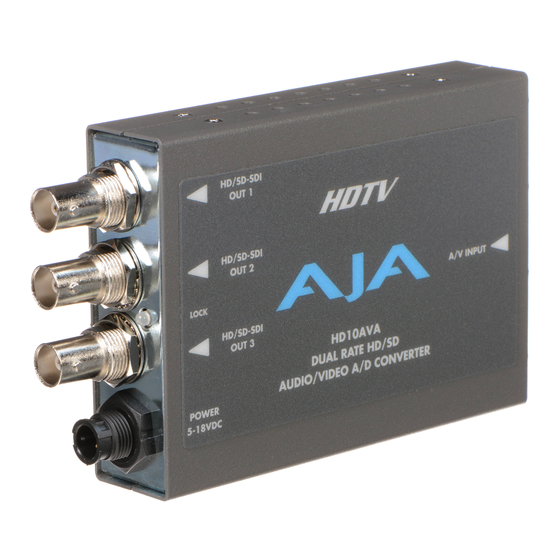

Page 1: User Manual
HD10AVA SD/HD Analog Composite or Component Video and 4 Ch Analog Audio to SD/HD-SDI w/Embedded Audio User Manual August 3, 2006 P/N 101662-00... -
Page 2: Fcc Emission Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. - Page 3 • 720p component 50/59.94/60 Audio The HD10AVA supports 4 analog audio input channels (2 stereo pairs) at 48 KHz. These inputs are connected via a supplied cable that attaches to a D-connector on the converter. Connections are made via high quality XLRs.
-
Page 4: Block Diagram
Embedder Control Audio in1 Audio ADC Audio in2 Channel 1&2 Audio Process Audio in3 Audio ADC Audio in4 Channel 3&4 Analog Input Connectors Composite, Embed Line S-Video, Video ADC Dejitter SDI_out1 Serializer Audio Drivers Component SDI_out2 SDI_out3 HD10AVA, Block Diagram... - Page 5 AJA HD10AVA SD/HD Audio/Video A/D Converter User Manual — I/O Connections I/O Connections Analog Input D-connector (attaches to HD/SD-SDI supplied cable) Output 1 BNC HD/SD-SDI Configuration Output 2 BNC Determined by DIP switch on other side of HD/SD-SDI Output 3 BNC...
-
Page 6: User Controls
User Controls The user interface for the HD10AVA is an 8- DIP Switch Setting LEFT RIGHT switch DIP accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure functions, formats and levels. Note: The combination of switch settings determines the overall operation of the HD10AVA. - Page 7 AJA HD10AVA SD/HD Audio/Video A/D Converter User Manual — User Controls Format Selection Matrix For Switches 1, 2, 3 and 7 The following table shows the combinations of DIP switch settings required to configure various formats. Note: HD formats are auto-detected and configured for YPbPr component.
-
Page 8: Installation
1. ensure +5VDC power is disconnected from the converter 2. configure the DIP switch for the desired equipment configuration and video/audio formats 3. connect video/audio equipment to the converter BNCs and XLRs 4. apply +5 to +18VDC power to the converter (AJA power supply model DWP) -
Page 9: Specifications
AJA HD10AVA SD/HD Audio/Video A/D Converter User Manual — Specifications Specifications Item Specification Formats 1080i 50/59.94/60 Hz 1080psf 23.98/24 Hz 1035i 50/59.94/60 Hz 720p 50/59.94/60 Hz Video Inputs HD component YPbPr, (SMPTE-274), 3 BNC SD component/composite/YC (S Video), 3 BNC...
