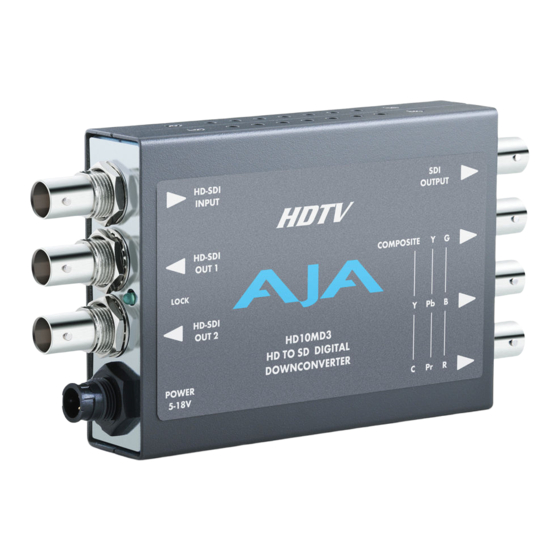

HD10MD3 Mini-Converter
HD to SDI Down Converter
Installation & Operation Guide
Version 1.0r2
Published: July 10, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD10MD3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AJA HD10MD3

  • Page 1 HD10MD3 Mini-Converter HD to SDI Down Converter Installation & Operation Guide Version 1.0r2 Published: July 10, 2014...
  • Page 2: Table Of Contents

    HD10MD3 Simplified Block Diagram ........
  • Page 3: Notices

    AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™...
  • Page 4: Chapter 1: Introduction

    • Uses universal input +5V power supply AJA model DWP-U-R1 (included) NOTE: The HD10MD3 automatically switches to PAL anytime the input is 1080i 50, 1080psf 25 or 1080p25. All other frames rates have an NTSC output: 60, 59.94, 30, 29.97, 24 and 23.98.
  • Page 5: Hd10Md3 Simplified Block Diagram

    Power Input User Controls The user interface for the HD10MD3 is an 8-switch DIP accessible through a cut-out in the bottom of the unit, and an internal jumper block accessed by removing the HD10MD3 cover (secured by 4 screws). Use the jumpers, if necessary, to synchronize 3:2 pulldown, and to configure vertical blanking or sync.
  • Page 6: Installation

    The exact function of the DIP switch and the jumper settings are described in “Operation” on page Installation Typically, HD10MD3 installation consists of the following: 1. Disconnect +5VDC from the converter. 2. Configure the DIP switches for the desired equipment configuration and video formats.
  • Page 7: Chapter 2: Operation

    DIP switches on the bottom of the unit are used to configure outputs, pedestal, blanking, cropping, and graticule. DIP Switches LEFT RIGHT DIP Switch Settings Table 1. HD10MD3 DIP Switch Setting Descriptions SWITCH FUNCTION DIP Set LEFT (default) DIP Set RIGHT Analog...
  • Page 8: Internal Jumper

    (OFF). This default setting uses RP188 to synchronize 3:2 pulldown, and follows RP168 to make the output start of vertical sync line up with input start of vertical sync. To access the jumper to change these settings, remove the back of the HD10MD3 case by removing the 4 Phillips screws that secure it.
  • Page 9 Table 3. HD10MD3 Jumper Setting Descriptions Jumper Function Jumper OFF (default) Jumper ON Between RP188 is used to synchronize RP215 is used to synchronize Pins 1 Pulldown 3:2 pulldown sequence. 3:2 pulldown sequence. and 2 synchroniza tion NOTE: In both cases the “A Frame” is synchronized to frame with timecode “xx:00”.
  • Page 10: Appendix A: Specifications

    • 4:3 Safe-Zone Graticule Overlay Size 5.8" x 3.1" x 1 (147 x 79 x 25mm) Power • Uses AJA Power Supply model DWP-U-R1 (included) • 100-240V, 50/60Hz Universal Input • +5V DC regulated, 7.5 watt capacity HD10MD3 Mini-Converter v1.0r2...
  • Page 11: Appendix B: Safety And Compliance

    Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 12: European Union And European Free Trade Association (Efta)

    Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 13: Korean Kcc Compliance Statement

    For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 14: Translated Warning And Caution Messages

    ¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 15 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 16 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 17 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 18 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 19 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
  • Page 20 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. HD10MD3 Mini-Converter v1.0r2 www.aja.com...
  • Page 21: Warranty Information

    AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.
