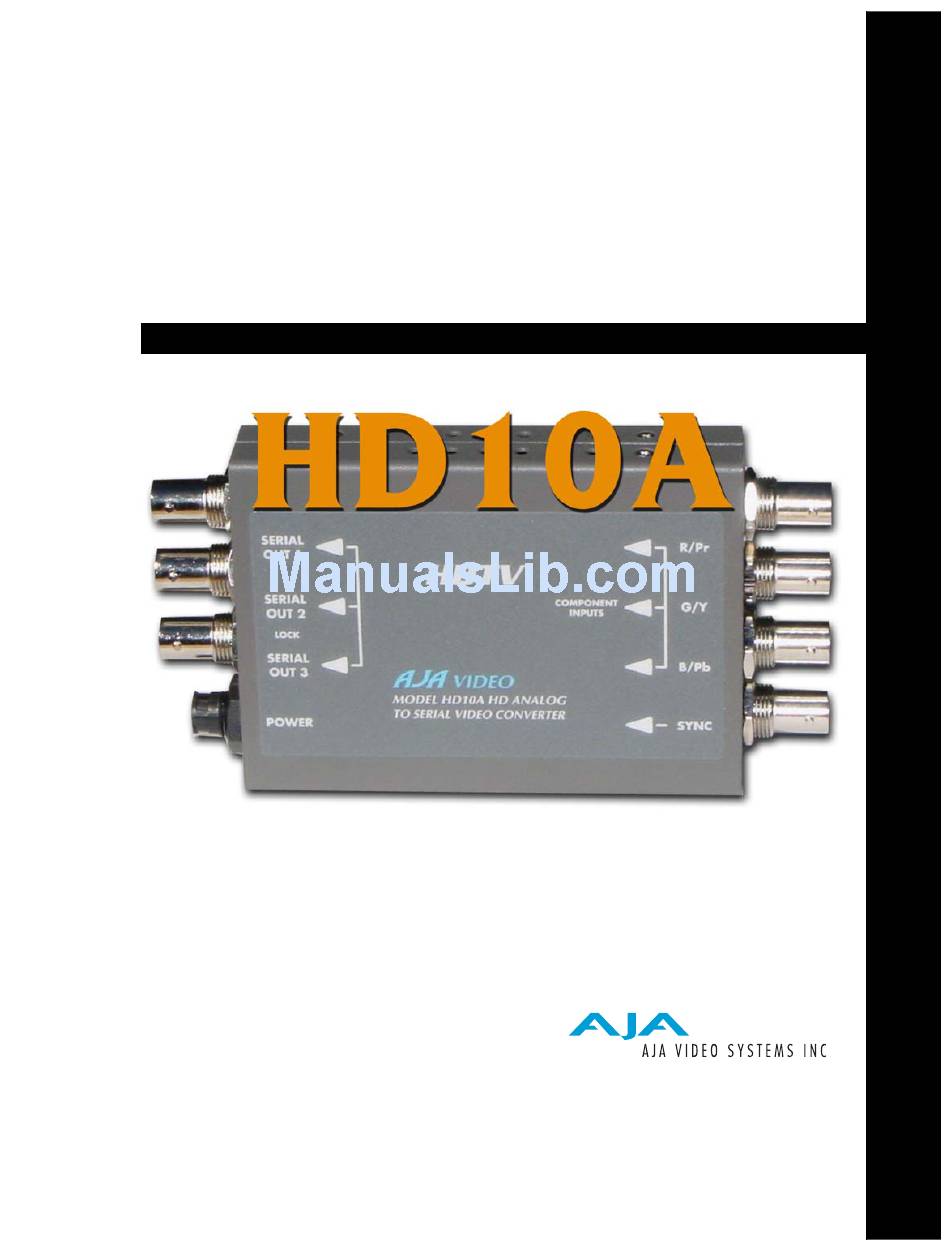

Page 1: User Manual
HD10A HDTV Analog to Serial Video Converter User Manual February 22, 2005 P/N 101633-00 For HD10A S/N 00796 and above Manufactured after 11/2004... -
Page 2: Fcc Emission Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. -
Page 3: Block Diagram

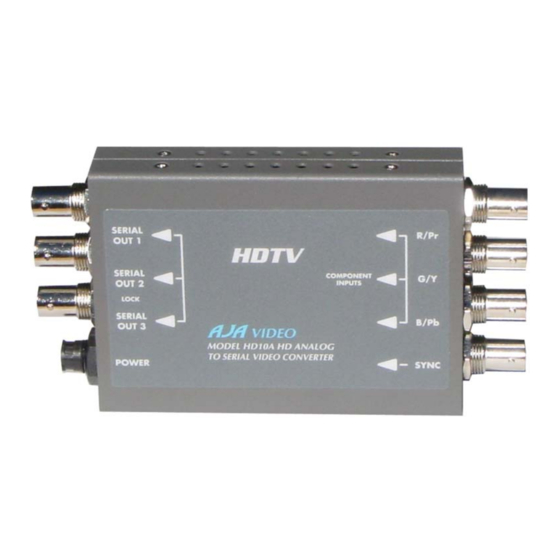

Introduction The HD10A is a miniature, high-quality, 10-bit analog to digital converter for HDTV. A companion to the popular HD10C2 D/A converter, the HD10A can add an HD-SDI output to cameras, VTRs, or other analog-only high definition equipment. The HD10A accepts RGB or YPbPr analog HD and outputs three duplicate HD-SDI signals. -
Page 4: User Controls
Input HD10A, Side View User Controls The user interface for the HD10A is a 4-switch DIP accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure inputs, vertical frame rate, and select internal or external Sync. -
Page 5: Installation
AJA HD10A HDTV Analog to Serial Video Converter User Manual — Installation Switch 3—Select Internal/External Sync LEFT RIGHT Selects Internal sync Selects External sync Switch 4—Not Functional Setting Internal Jumper for Bi-level or Tri-level Sync There is an internal jumper used for selecting Bi-level or Tri-level. The jumper is set at the factory to a default setting of Tri-level sync. - Page 6 1080p sf 23.98/24 1035i 50/59.94/60 Hz 720p 23.98/24/29.97/30/59.94/60 Hz Frequency Response +/- .5dB to 30MHz (Y) +/- .25dB to 15MHz (C) Power 5v DC regulated, 4.5 watt (AJA power supply model DWP) Size 5.8" x 3.1" x l”(147 x 79 x 25mm)
