HDP3 Mini-Converter
3G/HD/SD-SDI to DVI-D
Installation & Operation Guide
Version 1.0
Published: April 11, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDP3 and is the answer not in the manual?

Questions and answers

Summary of Contents for AJA HDP3

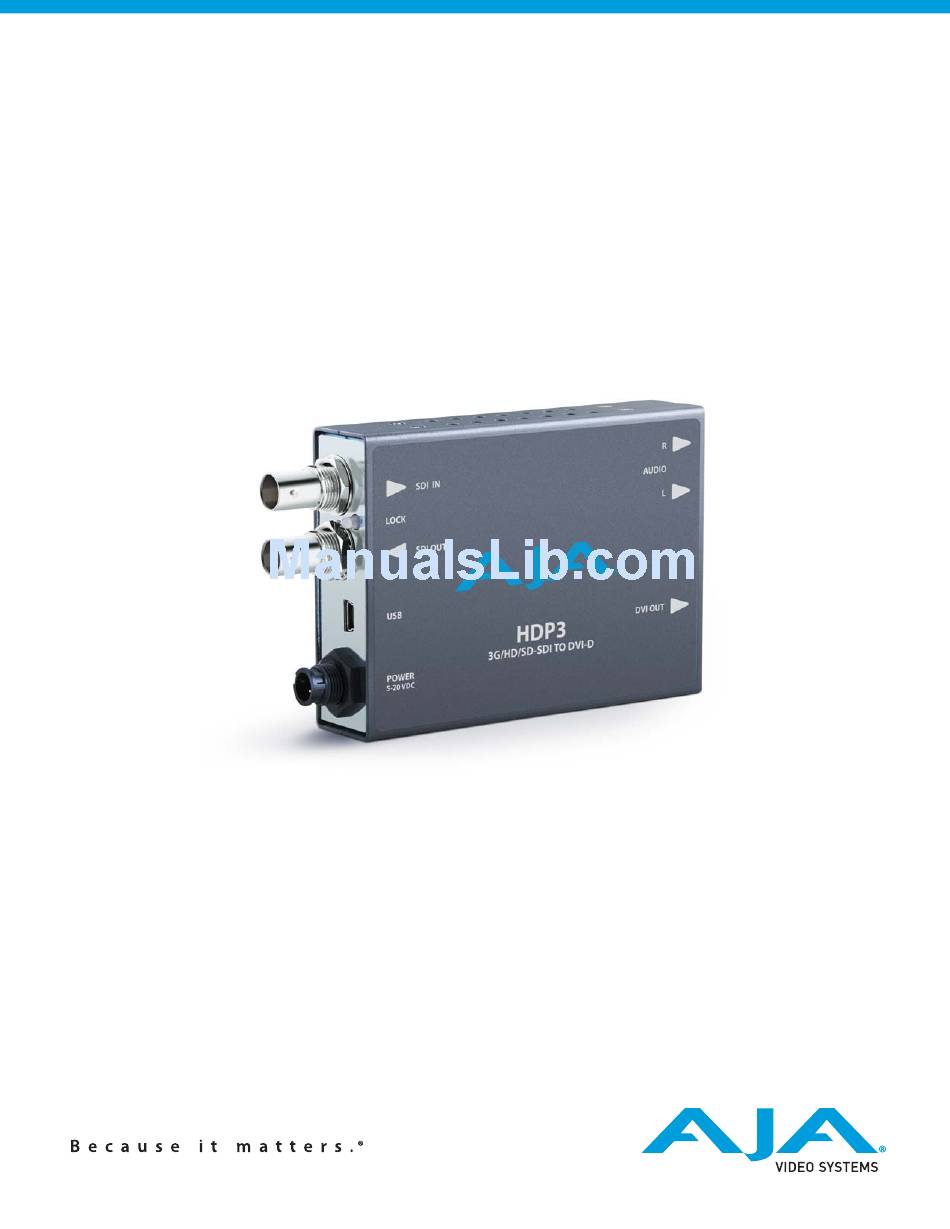

  • Page 1 HDP3 Mini-Converter 3G/HD/SD-SDI to DVI-D Installation & Operation Guide Version 1.0 Published: April 11, 2016...
  • Page 2: Table Of Contents

    USB Control and Setup—Using AJA Mini-Config........
  • Page 3 Limited Warranty ..............31 HDP3 Mini-Converter v1.0...
  • Page 4: Notices

    AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc. for use with camera products.
  • Page 5: Chapter 1: Introduction

    1 to 1—for example, displaying 1920x1080 video on a WUXGA (1920x1200) monitor. Where appropriate, the HDP3 can automatically adapt the input frame rate for monitor compatibility. In addition, the HDP3 provides 8 channel embedded audio over HDMI, 2 channel analog audio monitoring, and a looping output of the SDI input.
  • Page 6: About Monitor Compatibility

    • 5 year warranty About Monitor Compatibility The HDP3 is designed to work with most DVI-D monitors. HDMI monitors are also supported with a standard, inexpensive DVI-to-HDMI cable or adapter (user supplied). The HDP3 uses the industry standard EDID communication protocol (within the DVI or HDMI link) to communicate with the monitor, and then adjust the HDP3’s internal scaling...
  • Page 7: Optimal Performance With Hp Lp2480Zx Dreamcolor

    • Sharp Aquos Series Optimal Performance with HP LP2480zx DreamColor When using the HDP3 with an HP LP2480zx, the best results are obtained by using the default HDP3 “Auto” selections (no action required—unless you’ve changed the factory defaults using the Mini-Config software supplied).
  • Page 8: Video Scaling

    Video Scaling As shown in the graphic below, the HDP3 will scale the input video to the best fit for a given monitor and video input. In cases where the input video and the monitor are already the same or similar, the HDP3 automatically turns off scaling. For example, a 1920 x1080 video and a 1920 x1200 monitor will not be scaled.
  • Page 9: Frame Rates

    Frame Rates When the HDP3 is manually configured for a particular output frame rate, the output will run in lock-step with the video input. For best results, (without any added or dropped frames), select an output frame rate that matches the incoming video frame rate.
  • Page 10: Installation

    2. Connect video equipment to the converter BNC and DVI connector.s 3. Connect audio equipment to RCA connectors (optional) 4. Apply power to the converter (AJA power supply included). 5. The converter will now run using the default factory settings. If you wish to alter the factory settings, you’ll need to:...
  • Page 11: Chapter 2: Operation

    Chapter 2: Operation USB Control and Setup—Using AJA Mini-Config Your AJA Mini-Converter can be used right out of the box for some applications since it is designed to recognize inputs and perform standard actions automatically by default. However, to use its full capability, you must use AJA’s Mini-Config software application for PCs and Macs.
  • Page 12: Mac Installation

    5. Click Next to begin. Answer the questions in the subsequent dialogues. When finished, an AJA Mini-Config shortcut will be installed on the desktop, and you will be able to locate the Mini-Config application in the AJA folder in the Programs listing.
  • Page 13: Running Mini-Config

    (supplied) to the Mini-Converter. PC Startup To run Mini-Config on a PC, double-click on the AJA Mini-Config icon on your desktop, or open the AJA folder in the program list and click on the AJA Mini-Config application located inside the Mini-Config folder.
  • Page 14: Operating Mini-Config

    Screens are virtually the same on both PC and Mac, with subtle differences that reflect the general look of the platform environment. Running Multiple Mini- Mini-Config can manage multiple AJA Mini-Converters connected via USB—even when Converters they are of differing types. However it only connects to one at a time. You can choose which Mini-Converter you wish to control using the pulldown menu in the upper right hand corner.
  • Page 15: Tabbed Screens

    Mini-Converter type. When you Click on any of the tab buttons, the pane below the tabs will change to match your tab selection. Any changes you make are immediately applied and will be saved, overwriting previous settings. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 16: Video Screen

    Choose Auto to let the HDP3 choose based on the attached output device’s capabilities, 1:1 for no scaling, or Scale, to let the HDP3 scale for the attached monitor. Displaying 1:1 only works properly when it is possible to display the entire unscaled raster. For example, it is not possible to display a 1920 x 1080 input on a 1600 x 1200 monitor.
  • Page 17: Audio Screen

    Audio Screen The selections on this screen configure the output audio. HDMI Channel Choose Auto, 2 Channel or 8 Channel embedded audio. Choosing “Auto” lets the HDP3 automatically select the audio channels based on the attached device's capabilities. NOTE: When in 2-channel mode, the audio pair selected will be the same as described by the “Analog Audio”...
  • Page 18: Update Screen

    This indicator bar shows the progress of firmware installation. Software Update 1. Check the AJA website for new Mini-Config software for your Mini-Converter. If new software is found, download it and uncompress the file archive (zip). Here is the URL...
  • Page 19: Info Screen

    Assembly : this is the factory assembly number. Serial Number: this is the factory set unique serial number of your HDP3. If you ever call AJA Support for service, you may be asked for this number. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 20: Appendix A: Specifications

    • 1 x RCA Stereo analog outputs at -10dBV (nominal) Analog Size (w x d x h) • 5.8” x 3.1" x 1.0" (147mm x 79mm x 25mm) Weight • 0.7 lb Power • 5-20VDC regulated, 6.5 watts, power supply required (included with purchase) HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 21: Environment

    • 0 to 40 degrees C (32 to 104 degrees F) Storage Temperature • -40 to 60 degrees C (-40 to 140 degrees F) Operating Relative • 10-90% noncondensing Humidity Operating Altitude • <3,000 meters (<10,000 feet) HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 22: Appendix B: Safety And Compliance

    Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 23: European Union And European Free Trade Association (Efta)

    Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 24: Recycling Notice

    This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2010 to 2015.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 25: Translated Warning And Caution Messages

    ¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 26 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 27 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 28 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 29 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HDP3 Mini-Converter v1.0 www.aja.com...
  • Page 30 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
  • Page 31: Warranty Information

    Warranty Information Limited Warranty AJA Video Systems, Inc. (AJA Video) warrants that this product will be free from defects in materials and workmanship for a period of five years from the date of purchase. If a product proves to be defective during this warranty period, AJA Video, at its option, will either repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
