Page 1: User Manual
HD-SDI/SDI To DVI-D and Audio Converter User Manual August 25, 2005 P/N 101657... -
Page 2: Fcc Emission Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. - Page 3 • Corporate displays • Kiosk applications • ...and much, much more! The scaling engine in the HDP makes it a simple and effective way to get full-screen images from a myriad of SD and HD sources. Note: The HDP is not intended as a critical viewing device, for applications such as color-correction, etc.
-
Page 4: About Monitor Compatibility
EDID communication with the monitor. Because VESA timing standards are not based on video formats, the HDP cannot frame lock to the input video and will operate like a frame synchronizer - it will frame rate convert by adding or dropping frames as needed. -
Page 5: Video Scaling
AJA HDP HD-SDI/SDI to DVI-D and Audio Converter User Manual — Video Scaling Video Scaling As shown in the graphic below, the HDP will scale the input video to the best fit for a given monitor and video input. In cases where the input video and the monitor are already the same or similar, the HDP automatically turns off scaling. -
Page 6: Vertical Locking
Vertical Locking Depending on the input frame rate and the capabilities of the monitor in use, the HDP will provide a vertically locked signal to the monitor. Because most DVI monitors have their own internal scaling, the internal scaler of the monitor may or may not lock vertically to the HDP output. -
Page 7: User Controls

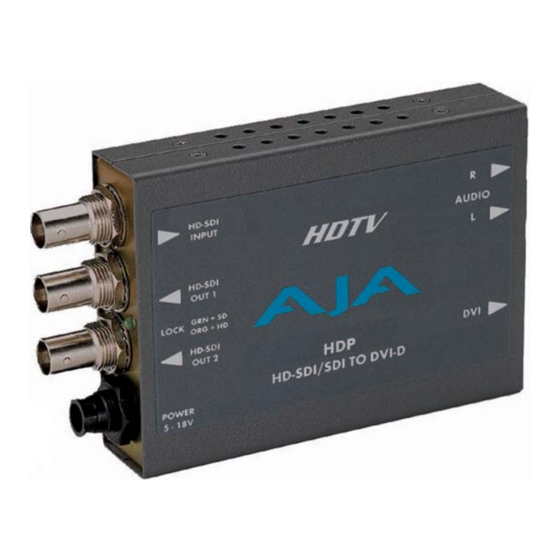

AJA HDP HD-SDI/SDI to DVI-D and Audio Converter User Manual — I/O Connections I/O Connections 2 Channel Unbalanced Analog Audio SD/HD-SDI Input (RCA Jacks) SD/HD-SDI Loop Output Output 1 DVI Connector SD/HD-SDI Loop Output 2 + 5-18VDC Power Input HDP Converter... -
Page 8: Installation
2. Configure the DIP switch for the desired configuration and video scaling. 3. Connect video equipment to the convertor BNCs and DVI connector. 4. Connect audio equipment to RCA connectors (optional) 5. Apply +5 to +18VDC power to the converter (AJA power supply model DWP or DWP-U). Specifications Item Specification... - Page 9 AJA HDP HD-SDI/SDI to DVI-D and Audio Converter User Manual — Specifications Item Specification Supported Output Displays 640 x 480 — VGA (native resolution) 800 x 600 — SVGA 848 x 480 — Plasma Note: for resolutions not listed 852 x 480 — Plasma...
