64 | Interior components diagram and parts list
13.2.5 Group 5

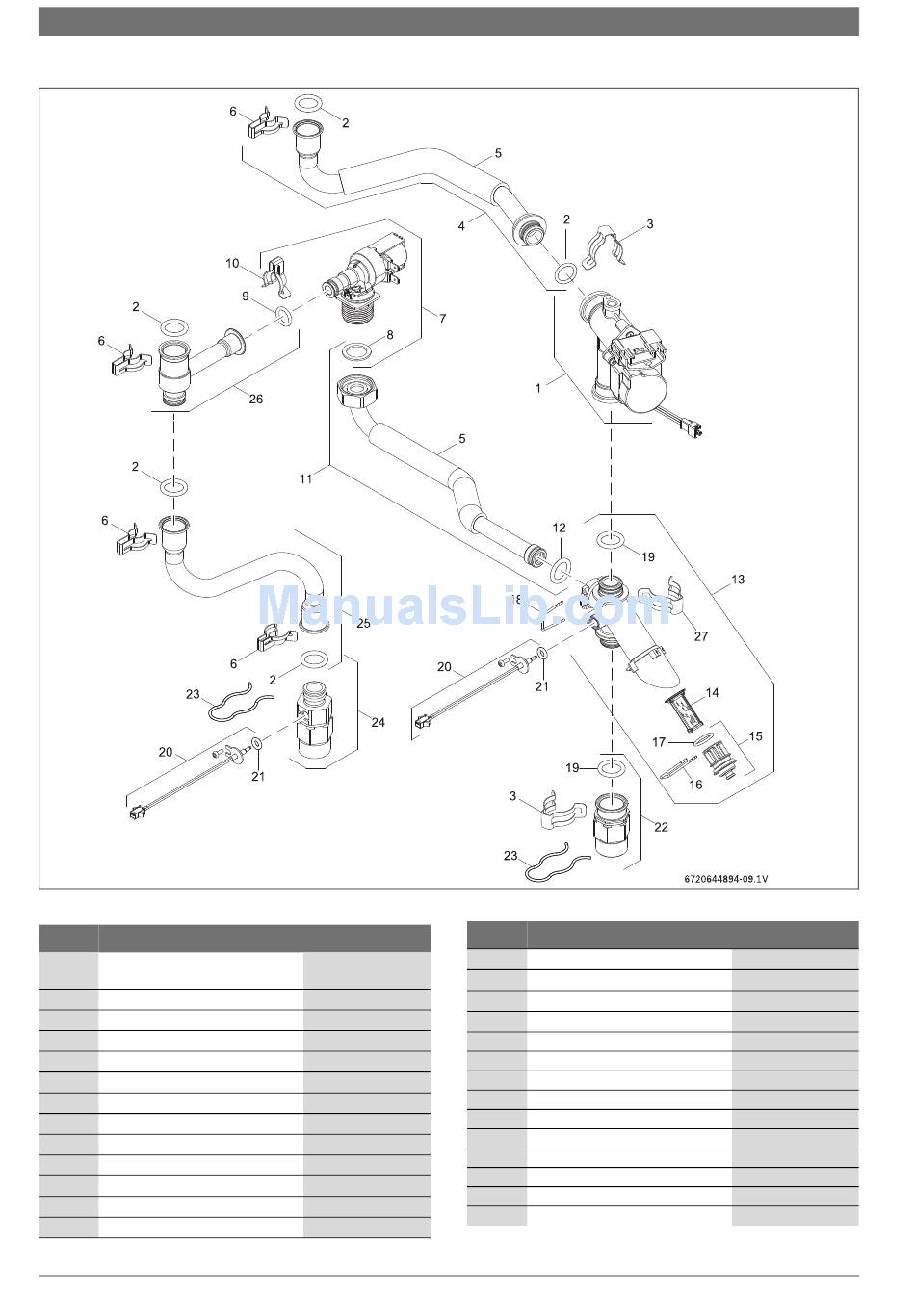

Fig. 86 Components Diagram
Item
Description
1
Water valve with engine and
temperature sensor
2
O-ring
3
Clip
4
Cold water pipe
5
Insulation
6
Clip
7
Bypass valve
8
Washer
9
O-ring bypass
10
Clip bypass
11
Bypass water pipe
12
O-ring bypass
13
Hydraulic block
Table 59
6 720 805 440 (2014/11)
Item
Reference
14
8 708 505 023 0
15
8 700 205 147 0
16
8 716 102 607 0
17
8 738 703 468 0
18
8 703 303 027 0
19
20
8 701 201 028 0
21
8 738 702 561 0
22
8 710 103 043 0
23
8 716 103 067 0
24
8 701 201 020 0
25
8 738 703 467 0
26
8 700 205 129 0
27
8 738 704 163 0
Table 59
Description
Filter
Filter cover
Wireform spring
O-ring filter cover
Wireform spring
O-ring
Temperature sensor
O-ring
Connection bush
Clip
Connection bush
Hot water pipe
Connector T
Clip
Reference
8 700 507 059 0
8 738 702 550 0
8 704 705 029 0
8 700 205 312 0
8 704 705 055 0
8 700 205 157 0
8 700 400 033 0
8 700 205 310 0
8 738 702 558 0
8 701 300 025 0
8 738 702 548 0
8 738 702 559 0
8 738 702 577 0
8 738 704 185 0
