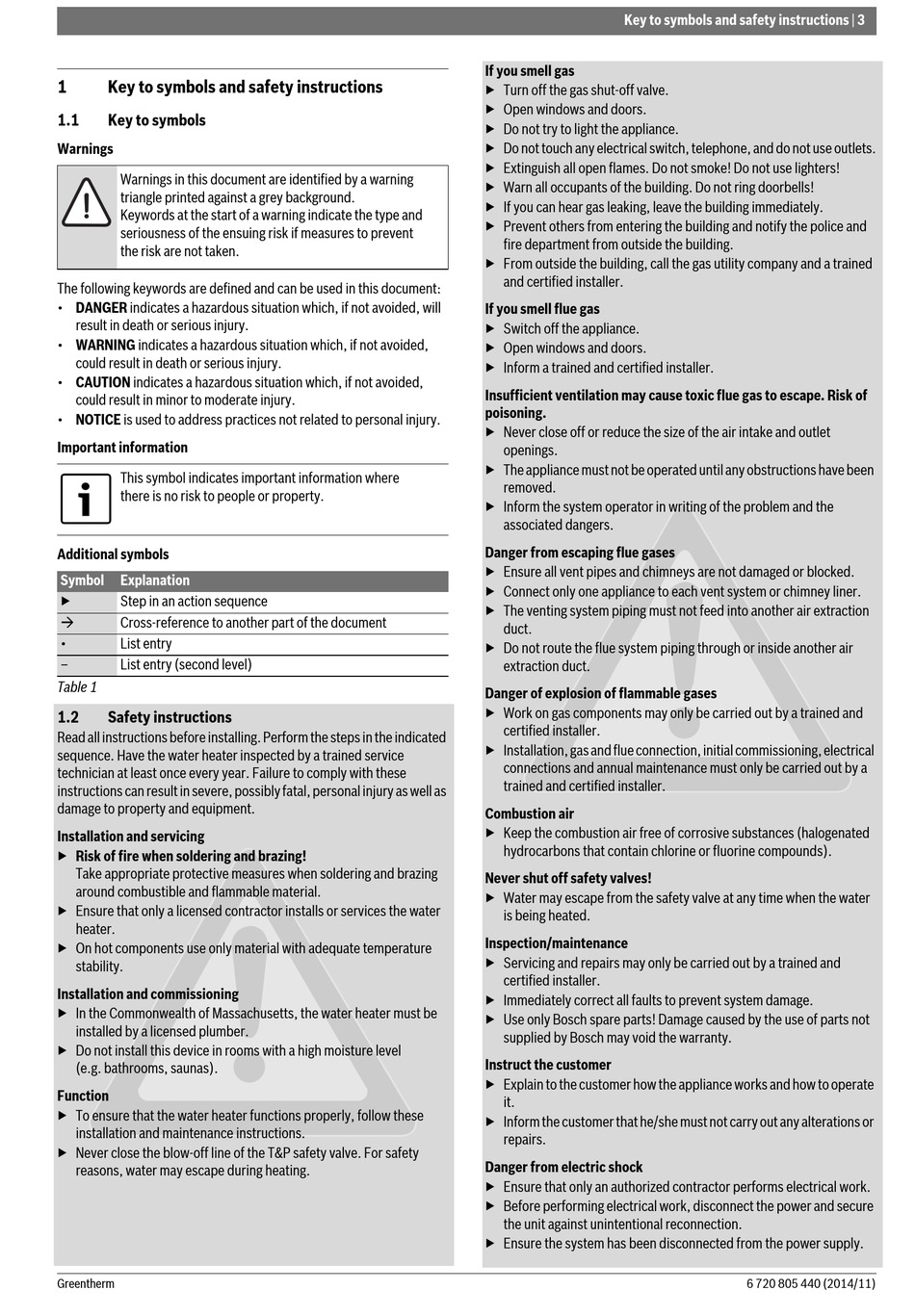

Key to symbols and safety instructions
Key to symbols
Warnings in this document are identified by a warning
triangle printed against a grey background.
Keywords at the start of a warning indicate the type and
seriousness of the ensuing risk if measures to prevent
the risk are not taken.
The following keywords are defined and can be used in this document:
• DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
• WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
• CAUTION indicates a hazardous situation which, if not avoided,
could result in minor to moderate injury.
• NOTICE is used to address practices not related to personal injury.
This symbol indicates important information where
there is no risk to people or property.
Step in an action sequence
Cross-reference to another part of the document
List entry (second level)
Read all instructions before installing. Perform the steps in the indicated
sequence. Have the water heater inspected by a trained service
technician at least once every year. Failure to comply with these
instructions can result in severe, possibly fatal, personal injury as well as
damage to property and equipment.
Installation and servicing
▶ Risk of fire when soldering and brazing!
Take appropriate protective measures when soldering and brazing
around combustible and flammable material.
▶ Ensure that only a licensed contractor installs or services the water
▶ On hot components use only material with adequate temperature
Installation and commissioning
▶ In the Commonwealth of Massachusetts, the water heater must be
installed by a licensed plumber.
▶ Do not install this device in rooms with a high moisture level
(e.g. bathrooms, saunas).
▶ To ensure that the water heater functions properly, follow these
installation and maintenance instructions.
▶ Never close the blow-off line of the T&P safety valve. For safety
reasons, water may escape during heating.
Key to symbols and safety instructions | 3
If you smell gas
▶ Turn off the gas shut-off valve.
▶ Open windows and doors.
▶ Do not try to light the appliance.
▶ Do not touch any electrical switch, telephone, and do not use outlets.
▶ Extinguish all open flames. Do not smoke! Do not use lighters!
▶ Warn all occupants of the building. Do not ring doorbells!
▶ If you can hear gas leaking, leave the building immediately.
▶ Prevent others from entering the building and notify the police and
fire department from outside the building.
▶ From outside the building, call the gas utility company and a trained
and certified installer.
If you smell flue gas
▶ Switch off the appliance.
▶ Open windows and doors.
▶ Inform a trained and certified installer.
Insufficient ventilation may cause toxic flue gas to escape. Risk of
▶ Never close off or reduce the size of the air intake and outlet
▶ The appliance must not be operated until any obstructions have been
▶ Inform the system operator in writing of the problem and the
Danger from escaping flue gases
▶ Ensure all vent pipes and chimneys are not damaged or blocked.
▶ Connect only one appliance to each vent system or chimney liner.
▶ The venting system piping must not feed into another air extraction
▶ Do not route the flue system piping through or inside another air
Danger of explosion of flammable gases
▶ Work on gas components may only be carried out by a trained and
▶ Installation, gas and flue connection, initial commissioning, electrical
connections and annual maintenance must only be carried out by a
trained and certified installer.
▶ Keep the combustion air free of corrosive substances (halogenated
hydrocarbons that contain chlorine or fluorine compounds).
Never shut off safety valves!
▶ Water may escape from the safety valve at any time when the water
is being heated.
▶ Servicing and repairs may only be carried out by a trained and
▶ Immediately correct all faults to prevent system damage.
▶ Use only Bosch spare parts! Damage caused by the use of parts not
supplied by Bosch may void the warranty.
Instruct the customer
▶ Explain to the customer how the appliance works and how to operate
▶ Inform the customer that he/she must not carry out any alterations or
Danger from electric shock
▶ Ensure that only an authorized contractor performs electrical work.
▶ Before performing electrical work, disconnect the power and secure
the unit against unintentional reconnection.
▶ Ensure the system has been disconnected from the power supply.
6 720 805 440 (2014/11)
