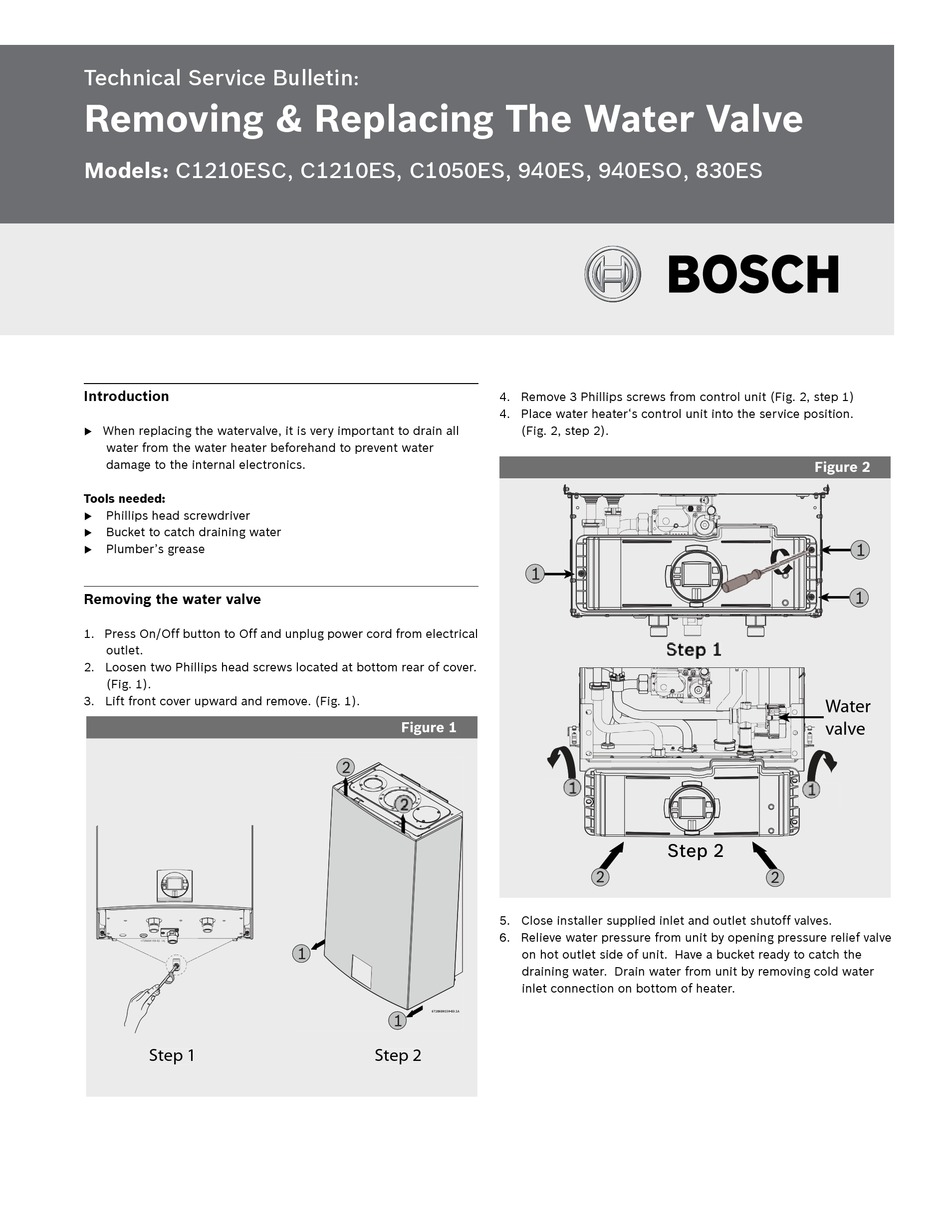

Technical Service Bulletin:
Removing & Replacing The Water Valve
Models: C1210ESC, C1210ES, C1050ES, 940ES, 940ESO, 830ES
Introduction
When replacing the watervalve, it is very important to drain all
water from the water heater beforehand to prevent water
damage to the internal electronics.
Tools needed:
Phillips head screwdriver
Bucket to catch draining water
Plumber's grease
Removing the water valve
1. Press On/Off button to Off and unplug power cord from electrical
outlet.
2. Loosen two Phillips head screws located at bottom rear of cover.
(Fig. 1).
3. Lift front cover upward and remove. (Fig. 1).
Step 1
Step 1
4. Remove 3 Phillips screws from control unit (Fig. 2, step 1)
4. Place water heater's control unit into the service position.
(Fig. 2, step 2).
Figure 1
5. Close installer supplied inlet and outlet shutoff valves.
6. Relieve water pressure from unit by opening pressure relief valve
on hot outlet side of unit. Have a bucket ready to catch the
draining water. Drain water from unit by removing cold water
inlet connection on bottom of heater.
Step 2
Step 2
Figure 2
Water
valve
Step 2
Step 2
