54 | Electrical diagram

10
Electrical diagram

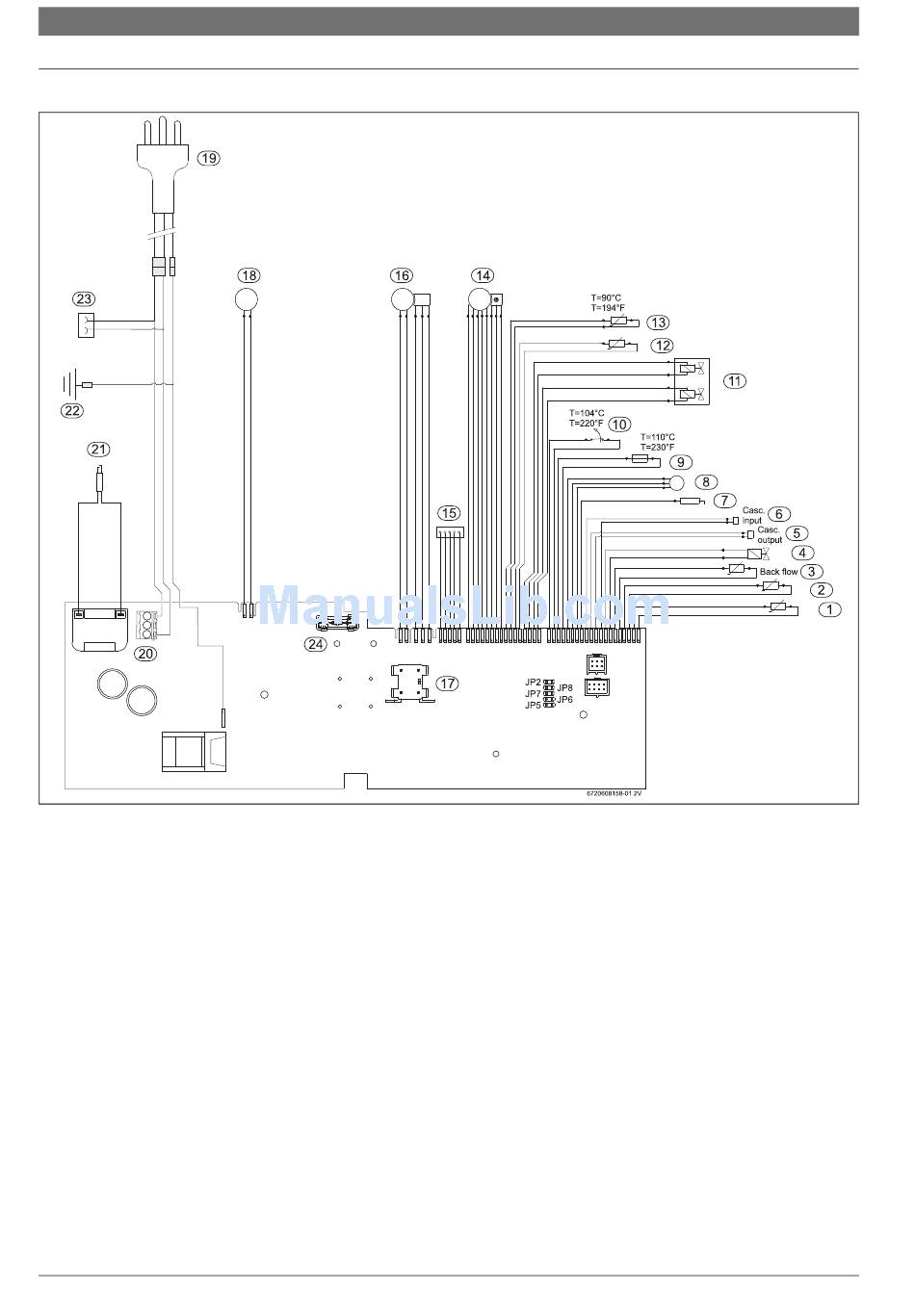

Fig. 76 Electrical scheme
[1]
Inlet water temperature sensor
[2]
Outlet water temperature sensor
[3]
Backflow temperature sensor
[4]
By-pass water valve
[5]
Cascading output connection
[6]
Cascading input connection
[7]
Ionization sensor
[8]
Water flow sensor
[9]
Flue gas limiter
[10] Heat exchanger overheat sensor (ECO)
[11] Gas valve
[12] Temperature Heat Exchanger
[13] Exhaust temperature sensor
[14] Water valve
[15] Communication port
[16] Primary fan
[17] ON/OFF switch
[18] Secondary fan
[19] AC plug
[20] Main connection
[21] Ignition electrodes
[22] Ground post
[23] Antifreeze kit connection
[24] Fuse
6 720 805 440 (2014/11)
Greentherm
