LED Indicators and Connectors

On the front side of the TA, there are three LEDs:
POWER
Lit The supply voltage has been applied.
PHONE
Lit The handset has been lifted up.
Flashes The TA has successfully registered with the SIP server.
LAN
Lit The Ethernet LAN port is physically connected with a peer device.
Please note the different labels of the WAN, LAN and of PC ports on the unit and on the PC configuration page.

Installation / SIP Configuration

•
Use a Category 5 LAN cable to connect the »LAN« port of the TA to the ADSL modem or router.
•
Use a Category 5 LAN cable to connect the »PC« port of the TA to the LAN port of the notebook or desktop PC.
•
Connect an analog phone to the »PHONE« port of the TA. If the phone is fitted with a (German standard) TAE con-
nector, insert the RJ11 to TAE adapter.
•
Connect the power supply block. The »POWER« LED lights up.
•
After approx. 5 seconds the »PHONE« LED flashes five times, then extinguishes as the unit goes to VoIP configurati-
on mode.
•
The »LAN« LED lights up when the »LAN port« is physically connected.
•
Lift up the handset. The »PHONE« LED lights up and you hear the dial tone. If you hear the busy tone, please check
whether the LAN port is correctly connected.
•
On the phone dial #120# now to hear the TA's factory-preset IP address. The preset IP address is 192.168.123.001.
This IP address will be used for the Web-based configuration from the PC. Starting on page 9 you will find additional
details about the Web-based configuration.
•
When the registration with the SIP server was successful (see page , Example 4) the »PHONE« LED flashes. Enter, for
example, the subscriber number 123456 in order to call the party registered in the SIP server with the subscriber
number 123456. Approx. 5 seconds after dialing the last digit of the subscriber number, you will hear the ringing
tone. Alternatively you can press the # key after dialing the subscriber number to have dialing start immediately.
When dialing the subscriber number without the # key, dialing will not start before the autodial timer expires (preset
to 5 seconds).

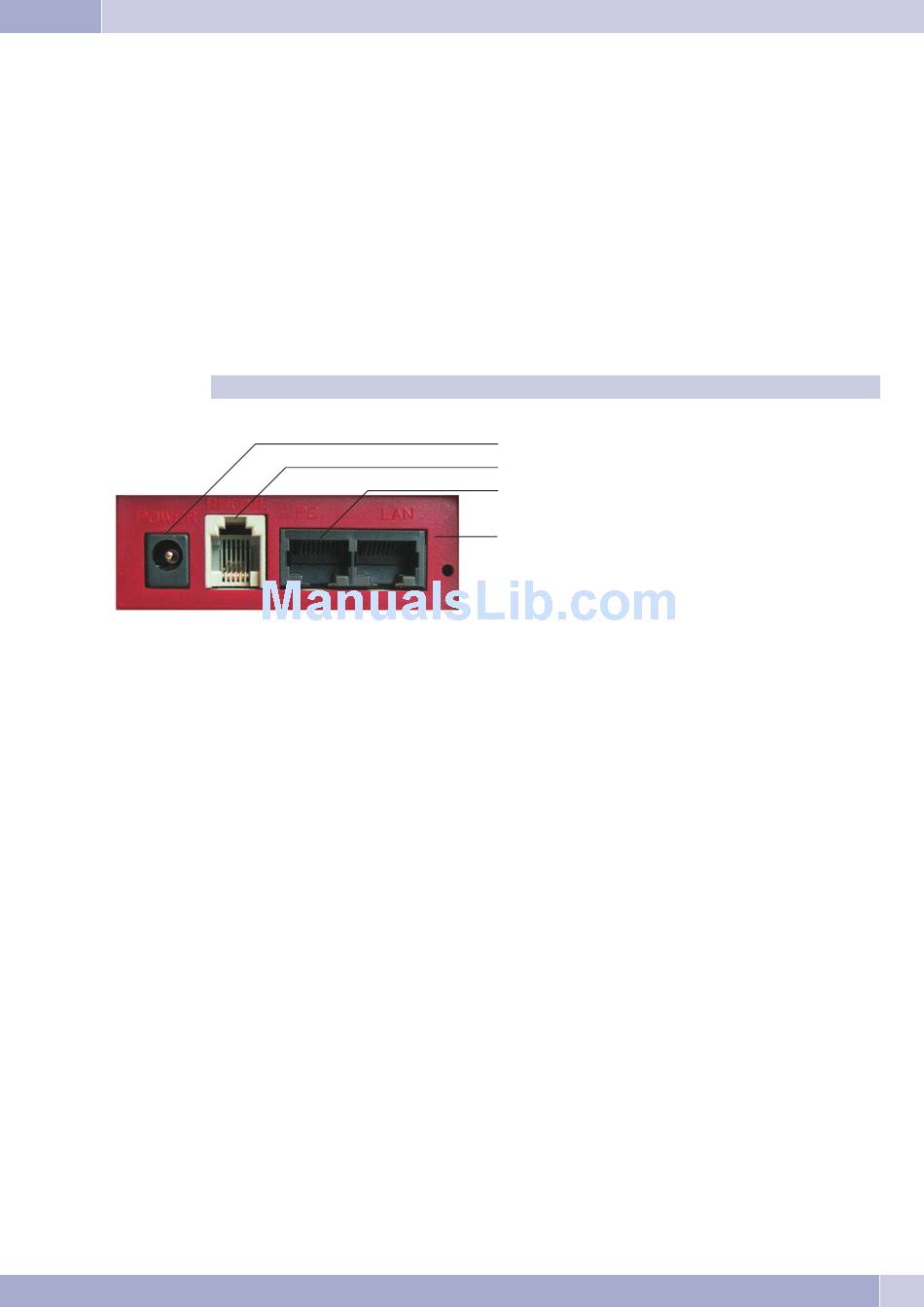

V101 SIP VoIP Telephony Adapter
1
1 - Power Supply
2
2 - Phone Port
3
3 - PC LAN Port
4 - LAN = WAN port
4
3
