Funkwerk V101 Operating Instructions Manual

Sip voip-telephone adaptor
Hide thumbs Also See for V101:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Operating instructions
V101 / V102 SIP VoIP-Telephone Adaptor
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Funkwerk V101

Summary of Contents for Funkwerk V101

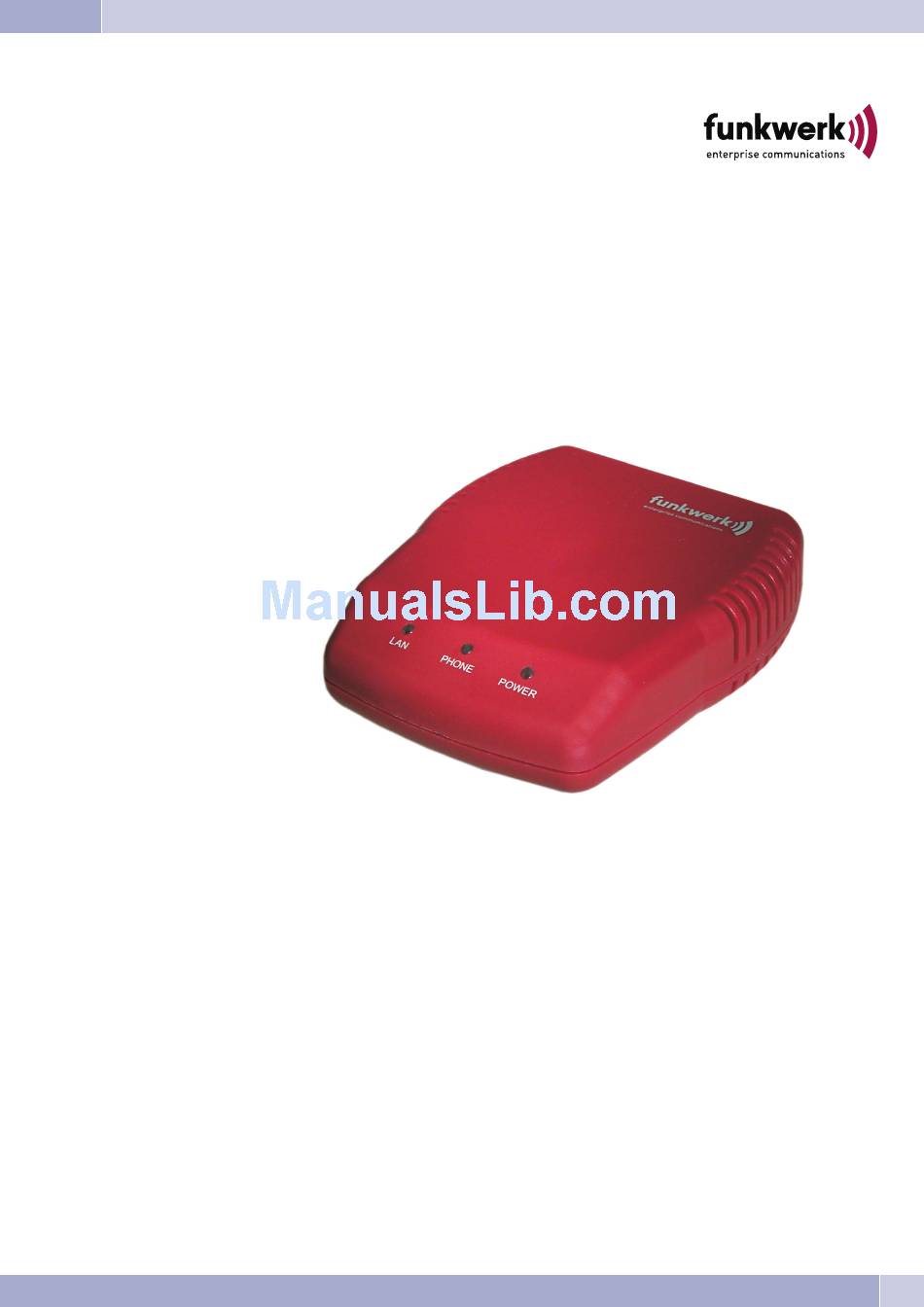

  • Page 1 Operating instructions V101 / V102 SIP VoIP-Telephone Adaptor English...
  • Page 2 You can also request this EC declaration of conformity at the following Internet URL: http://www.funkwerk-ec.com. The waste container symbol with the "X" through it on the device indicates that the device must be disposed of separately from normal domestic waste at an appropriate waste disposal facility at the end of its useful service life.

  • Page 3: Table Of Contents

    Configuration through the Web Browser (V101, V102) ........
  • Page 4 Table of contents...

  • Page 5: Safety Notes

    Maintenance and Care The V101 and V102 SIP VoIP telephony adapter is manufactured for normal conditions of use. When required, clean the ISDN system tele- phone with a slightly moistened cloth, or with an anti-static cloth. Never use a solvent to clean the device! Never use a dry cloth; electrostatic discharge may damage the electronics in the system.

  • Page 6: V101 Sip Voip Telephony Adapter

    V101 SIP VoIP Telephony Adapter The V101 is a telephony adapter (TA) for »Voice over IP« applications (VoIP) based on SIP protocols. Once connected to the Internet the TA can link two stations having IP addresses with each other through the Internet. The TA features two Ethernet LAN ports for hooking up a DSL modem / router and a PC, as well as one port for an analog phone.

  • Page 7: Led Indicators And Connectors

    V101 SIP VoIP Telephony Adapter LED Indicators and Connectors On the front side of the TA, there are three LEDs: POWER The supply voltage has been applied. PHONE The handset has been lifted up. Flashes The TA has successfully registered with the SIP server.

  • Page 8: V102 Sip Voip Telephony Adapter

    V102 SIP VoIP Telephony Adapter V102 SIP VoIP Telephony Adapter The V102 is a 2-port FXS telephony adapter (TA) with SIP protocol support for Voice-over-IP applications (VoIP). If the V102 is connected to the Internet and has two analog telephone sets attached, it supports two simultaneous VoIP calls. The V102 has Ethernet LAN and PC ports for interfacing with ADSL and a notebook PC.

  • Page 9: Led Indicators And Connectors

    V102 SIP VoIP Telephony Adapter LED Indicators and Connectors On the front side of the V102 there are three LEDs: POWER Lit: The supply voltage has been applied. PHONE: Solid green light: The handset of phone 1 or phone 2 has been lifted up. Flashing green light: SIP registration for phone 1 was successful.

  • Page 10: Using Attached Analog Terminal Equipment

    Using Attached Analog Terminal Equipment Using Attached Analog Terminal Equipment Not all of the service features described in the following are supported by all providers. If in doubt, consult with your provider to find out which service features are included in your access service package and which ones need to be ordered separately. Symbols Please note: Different terminal devices will not necessarily have the same dial tones, ringing signals or procedures for use.
  • Page 11 Using Attached Analog Terminal Equipment Hot Line Calling Making telephone calls with Direct Calling activated Lift up handset Begin dialing within the configured time Room Inquiry You are conducting a call. Press the Recall flash button. You would like to call another party You hear the dial tone from the earpiece.
  • Page 12 If you are in a conference call and you hang up, your call is terminated and the two parties from your conference remain connected with each other! All settings for analog phones apply to both phones alike (exception: TA V101 »Service Domain Settings«). Resetting the TA The TA can be reset through any attached phone.

  • Page 13: Configuration Through The Web Browser (V101, V102)

    The »System Information« page displays technical information like »Model Name«, »Firmware Version« and »Codec Version«. Under »Model Name« you will find the name of the TA. In this field, »VoIP TA« identifies the V101 SIP VoIP telephony adapter and »VoIP FXS/FXS TA«...

  • Page 14: Phone Book

    Configuration through the Web Browser (V101, V102) Phone Book Phone Book / Speed Dial Settings The »Phone Book« menu item lets you set up the Speed Dial feature under »Speed Dial Settings« and the Direct Call feature under »Hot Line Settings«.

  • Page 15: Call Settings

    Configuration through the Web Browser (V101, V102) • Under »Hotline No.« enter the Direct Call destination. • Under »Name« you can enter a name for the direct call destination. • Under »URL« enter either the phone number, the phone number in URL format, or the IP address of the subscriber you wish to reach under the direct call number.

  • Page 16: Time Synchronization Setup (Sntp Settings)

    Configuration through the Web Browser (V101, V102) Set Up Call Forwarding You may enable all three call forwarding modes at the same time. In this case the TA will only use »Call Forward Unconditional« (All For- ward). This call forwarding mode has the highest priority. The two remaining call forwarding modes may be active concurrently.

  • Page 17: Volume Settings

    Configuration through the Web Browser (V101, V102) Volume Settings • This option lets you set the volumes for voice communication. What you set here are the signal levels delivered to and received from the analog terminal. Handset Volume • Here you can enter the signal level that drives the volume in the speaker of the handset of your terminal.
  • Page 18 Configuration through the Web Browser (V101, V102) Caller ID Setting On the »Caller ID Setting« page you can set how callers are identified on the display of your phones. Consult the User Manual of your phone which subscriber number signaling mode must be preset in the TA in order to accommodate the device.

  • Page 19: Dial Plan Setting

    Configuration through the Web Browser (V101, V102) Dial Plan Setting If you have enabled this service feature by choosing »ON«, the TA may recognize specific subscriber numbers or sequences of digits and pro- cess them in the following ways: •...
  • Page 20 Configuration through the Web Browser (V101, V102) Example: Auto Prefix 0049 (00000000~99999999) Prefix Unset Plan This function instructs the TA not to place the prefix specified under »Auto Prefix« before a subscriber number of your choice. For this to work, the following conditions must be fulfilled: •...
  • Page 21 Configuration through the Web Browser (V101, V102) Flash Time Setting The »Flash Time Setting« page lets you set the length of the Flash signal for the detection of the phone’s Flash key. The Flash key is needed, for example, for Three-Party Conferencing and Call Hold. The detection period is factory–preset to a length of 600 milliseconds. The period can be adjusted to a length of up to 2550 milliseconds.

  • Page 22: Network

    Network Network Status Difference between the LAN and WAN Ports of the V101 SIP VoIP Telephony Adapter Please note that the labels of the RJ45 connectors of the TA and their equivalent options on the Configuration page does not match exactly! •...
  • Page 23 Configuration through the Web Browser (V101, V102) IP Type • Fixed IP: Sets a fixed IP address for the WAN port. • DHCP client: Shows the IP address the TA has obtained from an upstream router or cable modem. PPPoE •...

  • Page 24: Vlan Settings

    If the V101 / V102 runs in integrated NAT mode, the TA filters and removes incorrect packets. Other devices downstream from the integra- ted NAT may be subdivided in 4 VLAN groups by assigning these groups different VIDs. The V101 / V102 verifies the VID in the incoming packets from the ADSL modem.

  • Page 25: Sip Settings

    Configuration through the Web Browser (V101, V102) SIP Settings This menu item lets you set the Service Domain, make Codec settings, Codec ID settings and miscellaneous other settings. You can make calls to and receive calls from other parties through the SIP account.
  • Page 26 Configuration through the Web Browser (V101, V102) STUN Setting Under »STUN Setting« you can set up the STUN server for the SIP service. The STUN function must be activated in order for a TA registered with the SIP server to work correctly downstream from a NAT server. You can enter the IP address of the STUN server and the STUN port number.

  • Page 27: Automatic Configuration Setup (Auto Config)

    Configuration through the Web Browser (V101, V102) Other Settings On the »Other Settings« page you can configure Hold mode through RFC and QoS (Quality of Service). Please follow the instructions given by your provider when changing these settings. Confirm your entries by clicking the »Submit« button.

  • Page 28: User Password

    Configuration through the Web Browser (V101, V102) User Password The »User Password« menu item takes you to the »User Password« page. On that page, you can change your »Username« and »Password«. New username • Use this text box to enter your new User Name.

  • Page 29: Save Changes

    Configuration through the Web Browser (V101, V102) Save Changes On the »Save Changes« page you can permanently save the changes you made to the TA setup. • Click the »Save« button. After clicking the »Save« button the TA reboots automatically. The new settings become effective when booting is complete.
  • Page 30 Configuration through the Web Browser (V101, V102) • After clicking the »Update« button, you will be presented with a list of firmware items posted on the server for your to download. • Select the new file you wish to download to your TA, then click the »Select« button.

  • Page 31: Default Settings

    Configuration through the Web Browser (V101, V102) Default Settings The »Default Settings« submenu item takes you to the »Restore Default Settings« page. On that page, you can reset the TA to its factory de- fault settings. • When you click the »Restore« button the TA returns to its factory default settings and automatically initiates a sys- tem reboot.

  • Page 32: Configuration Using The Telephone's Keypad

    DHCP is activated (»DHCP«) or deacti- vated (»Fixed IP«). Hang up when you hear the end of announcement signal. Check LAN (V102) or PC (V101) port IP #120# The voice response system reads out the address of the TA current IP address of the TA.
  • Page 33 Configuration using the Telephone’s Keypad Setup of Codec #130+[1-8]# 1: G.711 u-law, 2: G.711 a-law, 3: G.723.1,4: G.729a, 5: G.726-16K,6: G.726-24K, 7: G.726-32K,8: G.726-40K. Setting Microphone Gain #131+[00~15]# Example: #13107#, factory default setting is Setting the Handset Volume #132+[00~12]# Example: #13209#, factory default setting is Activating Call Waiting #138# Deactivating Call Waiting...

  • Page 34: Application Examples

    Application Examples Application Examples Example ADSL link without NAT router serving the TA Application: This is a simple application scenario downstream from an ADSL modem, which is normally supplied to you by your provider. ADSL-Modem TA 102 TA 101 1 = WAN 1 = LAN 2 = LAN 2 = PC...
  • Page 35 Application Examples Example ADSL links through ADSL cable modem or a NAT router serving the TA In DHCP mode: • The IP address of the TA will be obtained from the cable modem or router. Fixed IP address: • The IP address of the TA is equivalent to an IP address of the cable modem or an IP address from the router’s net- work.
  • Page 36 Application Examples • Confirm your entries by clicking the »Submit« button. • Check whether the SIP server is deactivated (Note: Off is default) and that the »PHONE« LED is not flashing. Making a call: • Pick up the handset of your analog phone. You hear the dial tone.
  • Page 37 Application Examples • On the »Service Domain Setting« page, under »STUN Setting«, set »STUN« to »On« if there is NO Outbound Proxy available. • Observe whether the »PHONE« LED flashes, thus indicating that the registration with the SIP server was successful. Making a call: •...
  • Page 38 Application Examples SIP Settings • On the »Service Domain Settings« page enter the User Name (including the Display »Name«, »User Name«, »Regis- tered Name«), the registered password, the Domain Server (sip.qsc.de), the Proxy Server (sip.qsc.de) and the Out- bound Proxy (sip.qsc.de). Confirm your entries by clicking the »Submit« button, then click the »Save Change« but- ton.
  • Page 39 Application Examples Making a call • Pick up the handset of your analog phone. You hear the dial tone. (Your QSC-subscriber number is 02115426988). • 12345# Now dial, for example in order to call the subscriber with the registered subscriber number 12345.

  • Page 40: Troubleshooting The Web-Based Configuration

    Troubleshooting the Web-based Configuration Troubleshooting the Web-based Configuration Access the Web page impossible The Web browser on your PC is the tool for configuring the TA. If you enter the preset address http://192.168.123.1 in the PC-based Web browser for the very first time (see Figure 5) but you cannot access the TA, the PC may be set to work with an IP-adress other than 192.168.123.xxx.

  • Page 41: Short Reference Manual

    Short Reference Manual Short Reference Manual ADSL-Kabelmodem ADSL-Kabelmodem ADSL-Kabelmodem oder oder oder NAT-Router NAT-Router NAT-Router TA 102 TA 102 TA 102 TA 101 TA 101 TA 101 1 = WAN 1 = WAN 1 = WAN 1 = LAN 1 = LAN 1 = LAN 2 = LAN 2 = LAN...
  • Page 42 Short Reference Manual Making Point-to-Point SIP Calls • When the TA has registered with the SIP-Server, the »PHONE« LED flashes. • Pick up the handset of your analog phone. You will hear the dial tone. • 123456# Enter a subscriber number, for example in order to reach the subscriber who is registered in the SIP server with the subscriber number 123456.

  • Page 43: Index

    Index All Forward ......11 DDNS ......20 Always Block.
  • Page 44 LAN ......3,5,19 Package Contents ..... . . 2,4 LAN Mode .
  • Page 45 Sync. Time ......12 V101 SIP VoIP Telephony Adapter... . . 2,3 Synchronization Time .
  • Page 47 EN 55024: 1998 +A1: 2000 + A2: 2003 harmonised standards (EMCD 89/336/EC) Normes harmonisées EN 61000-3-2: 2000 (Directive EMC 89/336/CE) EN61000-3-3: 1995 + A1: 2000 A nschrift Funkwerk Enterprise Communications GmbH A ddress Südwestpark 94 A dresse D-90449 Nürnberg + TK-Nr. / N° de télécommunication Fon:...
  • Page 48 For information on support and service offerings please visit our Website at: www.funkwerk-ec.com There, you will find a Service / Support area. Phone: +49 911 9673 0 Funkwerk Enterprise Communications GmbH Suedwestpark 94 D-90449 Nuremberg Subjekt to modifications Ausgabe 1...
