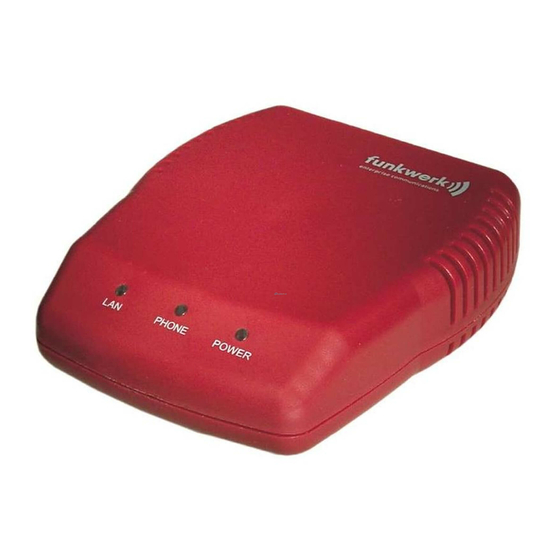

Funkwerk V102 User Manual

2-port sip voip telephone adaptor
Hide thumbs Also See for V102:
Table of Contents

Advertisement

Quick Links

Download this manual

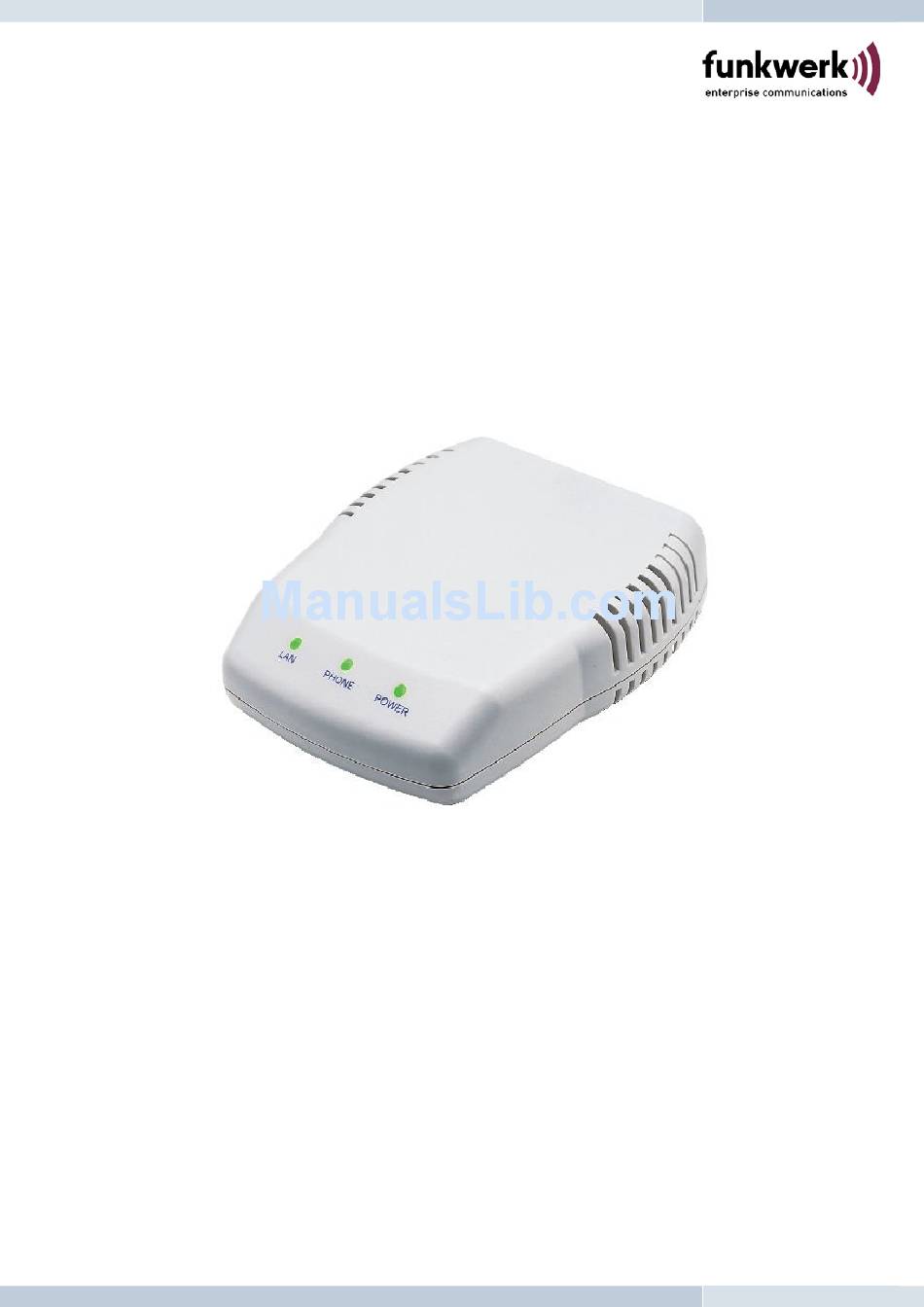

V102
2-Port SIP VoIP Telephone Adaptor
User Manual
V1.10

Advertisement

Table of Contents
loading

Related Manuals for Funkwerk V102

Summary of Contents for Funkwerk V102

  • Page 1 V102 2-Port SIP VoIP Telephone Adaptor User Manual V1.10...

  • Page 2: Quick Guide

    Step 1: Broadband (ADSL/Cable Modem) Connections for V102 A. Connect V102 LAN port to ADSL modem as the following connection. B. Connect V102 PC port to Notebook PC LAN port using a Category 5 LAN cable. C. Connect V102 RJ11 PHONE1 port to one analog telephone set.
  • Page 3 # is used to send out the call immediately. In a moment, you should hear the ring back tone, and wait for the called party to answer. For more applications, please refer to the user manual Note: If you have difficulties in configuring V102, please refer to the last chapter for trouble shootings.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introductions ……………………………………………………………… Features ……………………………………………………………………… Packing Contents …………………………………………………… LED Indicators …………………………………………………………… Installations & SIP Configurations …………………… Default Reset from Telephone …………………………… Configurations from Web Browser …………………… Configurations from Telephone & IVR ……………… VoIP Applications Examples ………………………………… SIP-to-SIP Calling/Answering ……………………………...

  • Page 5: Introductions

    1. Introduction The V102 is a 2-port FXS Telephone Adaptor (TA) with SIP Protocols for Voice over IP (VoIP) applications. Connecting to the Internet and two analog telephone sets, the V102 can supports two concurrent VoIP calls over the Internet. V102 provides Ethernet LAN and PC ports for ADSL and Notebook PC connections.

  • Page 6: Packing Contents

    Please check if the packing is damaged or any component is missing. If so, please contact your distributor. 4. LED Indicators On the front panel of V102, there are three LED indicators as the following POWER: “On” indicates the power is normal PHONE: “Green...

  • Page 7: Installations & Sip Configurations

    V102 provides an easy way to reset to factory defaults by using Telephone. Pick up the phone and press #198# to reset back to factory defaults, and the V102 will enter into POWER ON cycle. The PHONE LED indicators will be OFF for about 4 seconds and start flashing for 5 times.

  • Page 8: Configurations From Web Browser

    7. Configurations from Web Browser You may enter the IP address from PC Web browser to configure V102. For example, enter http://192.168.1.100 from IE web browser to display login page as follows. 7.1. Please enter the username and password into the blank field. The default settings are:...

  • Page 9: System Information

    System Information 7.3. You will see the system information like firmware version, Codec, etc in this page. 7.4. You may click the button list at the left hand side to configure the V102.
  • Page 10 Phone Book for Speed Dial 7.5. The Phone Book page specifies Speed Dial function. 7.6. For Speed Dial function you can add/delete Speed Dial number up to maximum 10 entries in Speed Dial Phone List. 7.7. If you need to add a phone number into the Speed Dial list, you need to enter the position, the name, and the phone number (by URL type).

  • Page 11: Call Settings

    Call Settings 7.11. The subpages are as follows; Call Forward, SNTP, Volume, Block Settings, Caller ID, Auto-Dial Timer, Flash Time (or hook switch), Call Waiting, and T.38 FAX functions. Call Forward function: 7.12. You can select the forward mode and enter the forward URL. All Forward: All incoming call will forward to the URL you choose.
  • Page 12 SNTP Setting: 7.13. You can setup the primary and second SNTP Server IP Address, to get the date/time information. You may also set the Time Zone, and how long need to synchronize again. When you finish the setting, please click the “Submit” button.
  • Page 13 Volume Setting: 7.14. You can setup the Handset Volume, Ringer Volume, and the Handset Gain in this page. When you finish the setting, please click the “Submit” button. Handset Volume is to set the volume to hear from the handset. Ringer Volume is to set the ringer volume. Handset Gain is to set the volume send out to the other side’s handset.
  • Page 14 Auto Dial Setting: 7.20. You can set the timer for inter dial digit in this page. When the timer expires after finished dialing, V102 will dial out the call automatically. When you finish the setting, please click the “Submit” button.
  • Page 15 Flash Time Setting: 7.21. You can set the flash time duration for the telephone flash key or hook switch in this page. The telephone flash key is used to switch to the other phone line or HOLD, and is quite useful for the 3-way conference call and the call waiting function.
  • Page 16 T.38 (FAX) Setting: 7.23. The T.38 FAX over IP function allows FAX machine to communicate with another FAX machine over IP network. The defaults are OFF for Phone1 and Phone2. The T.38 ports of Phone1 and Phone2 must be differents. When you finish the setting, please click the “Submit”...
  • Page 17 Network 7.24. You may configure the Bridge, NAT, and DDNS settings to show the Network status in this section. If you have an external NAT router, then you must select Bridge ON in the Bridge settings to disable embedded NAT. In this case, the two Fast Ethernet ports will be bridged and transparent.
  • Page 18 Bridge Settings: 7.26. You can configure Bridge settings for V102 in this page. 7.27. The IP type for V102 is Fixed IP (192.168.1.100) at default. You may select a proper IP type for your network requirements. 7.28. The Bridge mode can be ON/OFF. If you select the Bridge ON mode, then the two Fast Ethernet ports will be bridged and transparent.
  • Page 19 NAT Settings: 7.30. When you select Bridge OFF, the embedded NAT will be enabled. This is useful for ADSL users without NAT router. 7.31. Enable the embedded DHCP Server at the LAN setting to automatically obtain a private IP address for PC from the embedded DHCP server. 7.32.
  • Page 20 DDNS Setting: 7.34. You need to have a DDNS account before configuring the DDNS setting. Usually, most of the VoIP applications are working with a SIP Proxy Server. Nonetheless, you may have a DDNS account with a public IP address, and others can call you via the DDNS account. When you finish the setting, please click the Submit button.

  • Page 21: Sip Settings

    Setting and Other Settings for SIP Proxy Server registrations in this page. Service Domain Settings: 7.36. You may register up to three SIP accounts in the V102. You can call your friends via firstly enabled SIP account and receive the phone calls from all the three SIP accounts.
  • Page 23 Codec Settings: 7.52. You can setup the Codec priority, RTP packet length, and VAD function in this page. You need to follow the ITSP recommendations to setup these items.
  • Page 24 Codec ID Settings: 7.53. You can setup the Codec ID in this page. You need to follow the ITSP suggestion to setup these items. Other Settings: 7.54. You can setup the Hold by RFC and QoS in this page. To change these settings please follows your ITSP information.
  • Page 25 Bridge mode and Fixed IP type in Network settings. After enabling this function, please click the “Submit” button. Remember to click “Save” in the Save Change section. The V102 will then reboot and automatically download the original configurations from the TFTP or FTP server.

  • Page 26: User Password

    7.56. You may change the login name and password in this page. Save Changes 7.57. You can save the changes you have made, and click the Save button. After clicking the “Save” button, the V102 will automatically save the new settings.
  • Page 27 Update 7.58. V102 provides two methods, HTTP or TFTP, to update new firmware as the following steps: 7.59. Select the firmware code type, Risc or DSP code. (mostly for Risc code) 7.60. Click the “Browse” button to choose the updated file location for HTTP download, or 7.61.
  • Page 28 7.62. After clicking the “Update” button, the firmware list will be displayed from server to indicate the available firmware for download. 7.63. Select the new file you want to download to the V102 then click the “Select” button. 7.64. In 3 to 4 minutes, the PHONE LED indicators will start flashing 5 times to indicate successful firmware update.
  • Page 29 Default Setting: 7.67. You can restore the V102 to factory default in this page. By clicking the “Restore” button, the V102 will restore to default and automatically restart again.
  • Page 30 Reboot 7.68. You may click the Reboot button to restart, then V102 will automatically reboot with the stored configurations.

  • Page 31: Configurations From Telephone & Ivr

    8. Configurations from Telephone & IVR You can use telephone to configure and to check the status of V102. Make sure that the LAN port is connected to Ethernet, or you may hear a busy tone from the telephone. Group...

  • Page 32: Voip Applications Examples

    9. VoIP Application Examples You can use PC Web browser to configure V102. For example, enter http://192.168.1.100 from PC web browser. A. ADSL Connections without NAT Router for V102 ADSL Modem INTERNET PHONE2 PHONE1 B. ADSL Connections with NAT Router for V102...

  • Page 33: Sip-To-Sip Calling/Answering

    Example 1: SIP-to-SIP Calling/Answering Applications: as in both Diagrams A and B The applications can be for ADSL connections . Both parties are registered to SIP server with either fixed real IP or private IP under NAT router. The SIP-to-SIP calling works when both calling and answering parties are registered to SIP server with given registered phone numbers.

  • Page 34: Sip To Direct Ip Calling

    Example 3: Direct IP to Direct IP Calling/Answering Applications: The applications are for ADSL connection without NAT router as in Diagram A. Both parties are with fixed real IP. The Direct IP calling works when both calling and answering parties are with known fixed IP. Configurations: 1.

  • Page 35: Direct Ip To Direct Ip Calling Within Nat

    Example 5: 3-Way Conference Call, Call Waiting, Call Hold 3-Way Conference Calling Application: This is for 3-way conference call among Parties A, B, and C. Three parties are registered to SIP server with either fixed real IP or private IP. Callings: 1.

  • Page 36: 3-Way Conference Call, Call Waiting, Hold

    Example 6: SIP-to-SIP Calling for FreeWorld Dialup (FWD) Applications: This shows how to use FWD as an example for free ITSP provider. The applications are for both parties registered to FWD SIP server. 1. Visit http://www.freeworlddialup.com and sign up for a new registered account number.
  • Page 37 5. SIP Settings You have to enter the Display Name, User Name, Registered Name, Registered Password, Domain Server (fwd.pulver.com), Proxy Server (fwd.pulver.com), Outbound Proxy (fwdnat.pulver.com:5082). After finished the setting, click the Submit button and the Save Change button. The system will reboot automatically. After system boot up, the SIP setting page will show “Registered”, and the PHONE LED will start flashing.
  • Page 38 Callings: 1. Pick up the phone, and you should hear a dial tone. (Your FWD phone number 636346). Press 12345 to call the party with the registered phone number 12345. In a moment, you should hear the ring back tone, and wait for the called party to answer.

  • Page 39: Advanced Settings For Embedded Nat

    10. Advanced Settings for Embedded NAT You may activate the embedded NAT server for V102. This NAT function is useful for ADSL user without NAT router as in the Diagram A. First, enter the IP address in the Web page.

  • Page 40: Nat Settings

    NAT Settings 3. The NAT settings page will be shown as follows. LAN Setting: Enable the embedded DHCP Server function for V102 and PC to get private IP addresses automatically from the embedded DHCP server. WAN Setting: 5. You may select PPPoE function, and enter the given username and password for ADSL connection.
  • Page 41 6. Click the Save button to save these settings. 7. After clicking the Save button, the V102 will show a Note Information page as the following and will automaitcally restart.

  • Page 42: Sip-To-Sip Calling For Fwd

    PC is not in the same subnet as 192.168.1.xxx. In this case, you must change V102 IP address to the same subnet as PC and NAT router. You can find your PC’s IP setting, using “ipconfig” command in “Command Prompt”...
  • Page 43 11.3. CONFIGURE PC’S IP SETTINGS FOR V102 EMBEDDED NAT FUNCTION? If you don’t have a router to connect both PC and V102 for sharing the only one IP address from ADSL/Cable modem, you should enable the embedded NAT function inside V102. You need to change your PC’s IP settings to recognize V102 as the default gateway.
  • Page 44 Funkwerk Enterprise Communications GmbH - Südwestpark 94 - D-90449 Nürnberg Telefon: +49 - 180 300 9191 0 Telefax: +49 - 180 300 9193 0 E-Mail: info@funkwerk-ec.com - www. funkwerk-ec.com...
