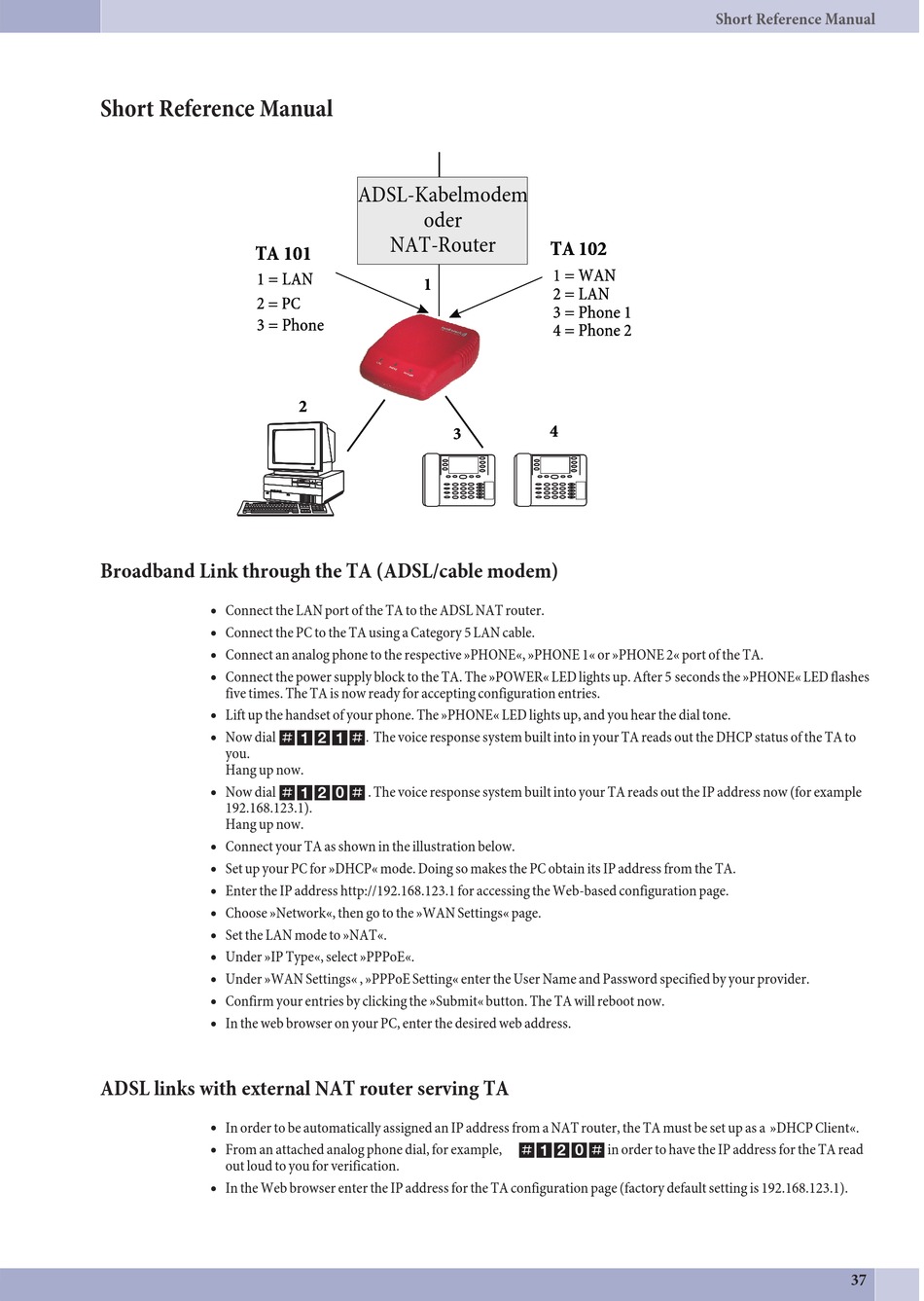

Short Reference Manual

TA 101 TA 101 TA 101
1 = LAN 1 = LAN 1 = LAN
2 = PC 2 = PC 2 = PC
3 = Phone 3 = Phone 3 = Phone

Broadband Link through the TA (ADSL/cable modem)

•
Connect the LAN port of the TA to the ADSL NAT router.
•
Connect the PC to the TA using a Category 5 LAN cable.
•
Connect an analog phone to the respective »PHONE«, »PHONE 1« or »PHONE 2« port of the TA.
•
Connect the power supply block to the TA. The »POWER« LED lights up. After 5 seconds the »PHONE« LED flashes
five times. The TA is now ready for accepting configuration entries.
•
Lift up the handset of your phone. The »PHONE« LED lights up, and you hear the dial tone.
•
Now dial
you.
Hang up now.
•
Now dial
192.168.123.1).
Hang up now.
•
Connect your TA as shown in the illustration below.
•
Set up your PC for »DHCP« mode. Doing so makes the PC obtain its IP address from the TA.
•
Enter the IP address http://192.168.123.1 for accessing the Web-based configuration page.
•
Choose »Network«, then go to the »WAN Settings« page.
•
Set the LAN mode to »NAT«.
•
Under »IP Type«, select »PPPoE«.
•
Under »WAN Settings« , »PPPoE Setting« enter the User Name and Password specified by your provider.
•
Confirm your entries by clicking the »Submit« button. The TA will reboot now.
•
In the web browser on your PC, enter the desired web address.

ADSL links with external NAT router serving TA

•
In order to be automatically assigned an IP address from a NAT router, the TA must be set up as a »DHCP Client«.
•
From an attached analog phone dial, for example,
out loud to you for verification.
•
In the Web browser enter the IP address for the TA configuration page (factory default setting is 192.168.123.1).
ADSL-Kabelmodem ADSL-Kabelmodem ADSL-Kabelmodem
oder oder oder
NAT-Router NAT-Router NAT-Router
1 1 1
2 2 2
#121# . The voice response system built into in your TA reads out the DHCP status of the TA to
#120#
. The voice response system built into your TA reads out the IP address now (for example
TA 102 TA 102 TA 102
1 = WAN 1 = WAN 1 = WAN
2 = LAN 2 = LAN 2 = LAN
3 = Phone 1 3 = Phone 1 3 = Phone 1
4 = Phone 2 4 = Phone 2 4 = Phone 2
4 4 4
3 3 3
#120# in order to have the IP address for the TA read
Short Reference Manual
37
