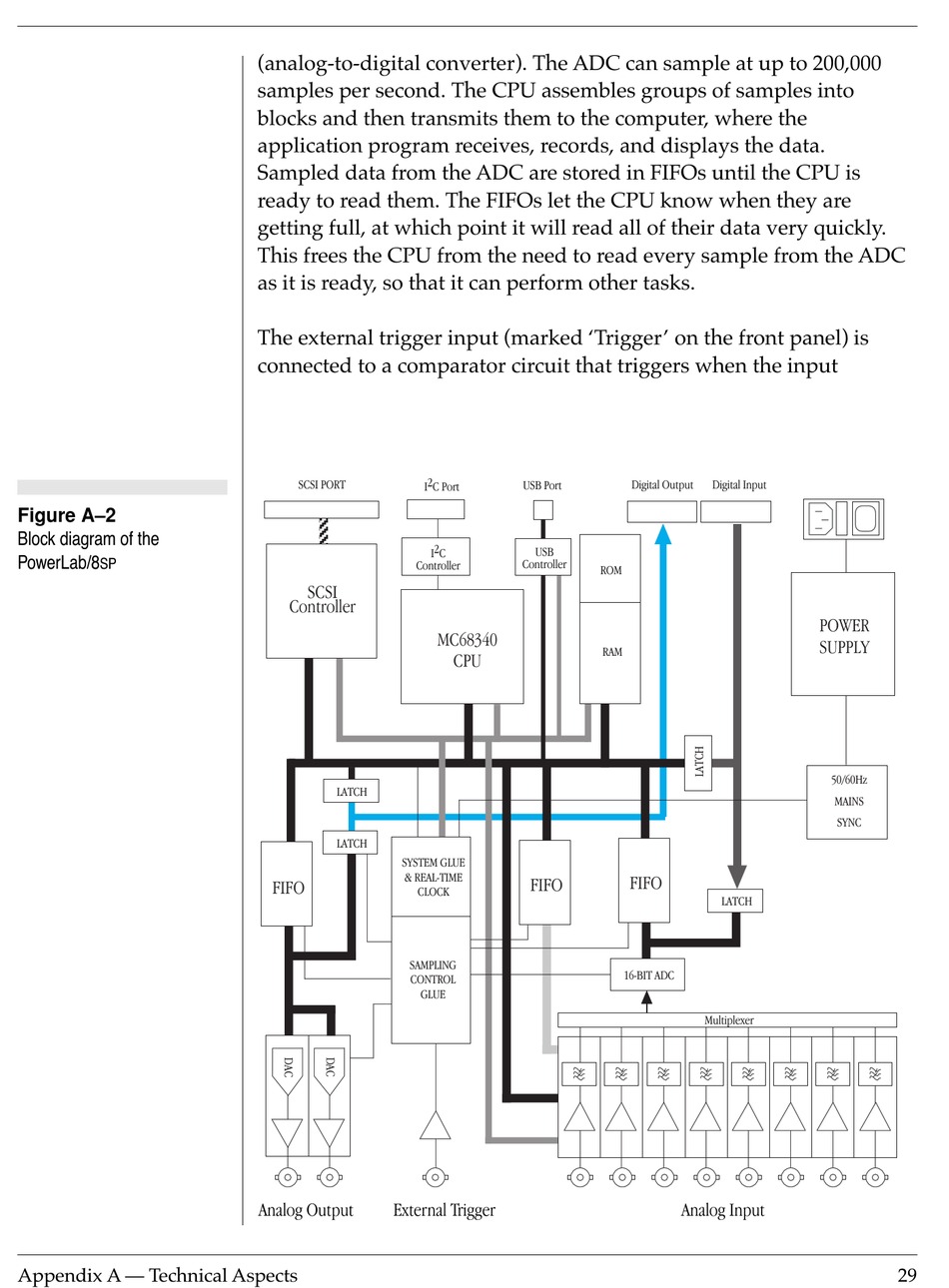

Figure A–2
Block diagram of the
PowerLab/8
SP
Appendix A — Technical Aspects
(analog-to-digital converter). The ADC can sample at up to 200,000
samples per second. The CPU assembles groups of samples into
blocks and then transmits them to the computer, where the
application program receives, records, and displays the data.
Sampled data from the ADC are stored in FIFOs until the CPU is
ready to read them. The FIFOs let the CPU know when they are
getting full, at which point it will read all of their data very quickly.
This frees the CPU from the need to read every sample from the ADC
as it is ready, so that it can perform other tasks.
The external trigger input (marked 'Trigger' on the front panel) is
connected to a comparator circuit that triggers when the input
