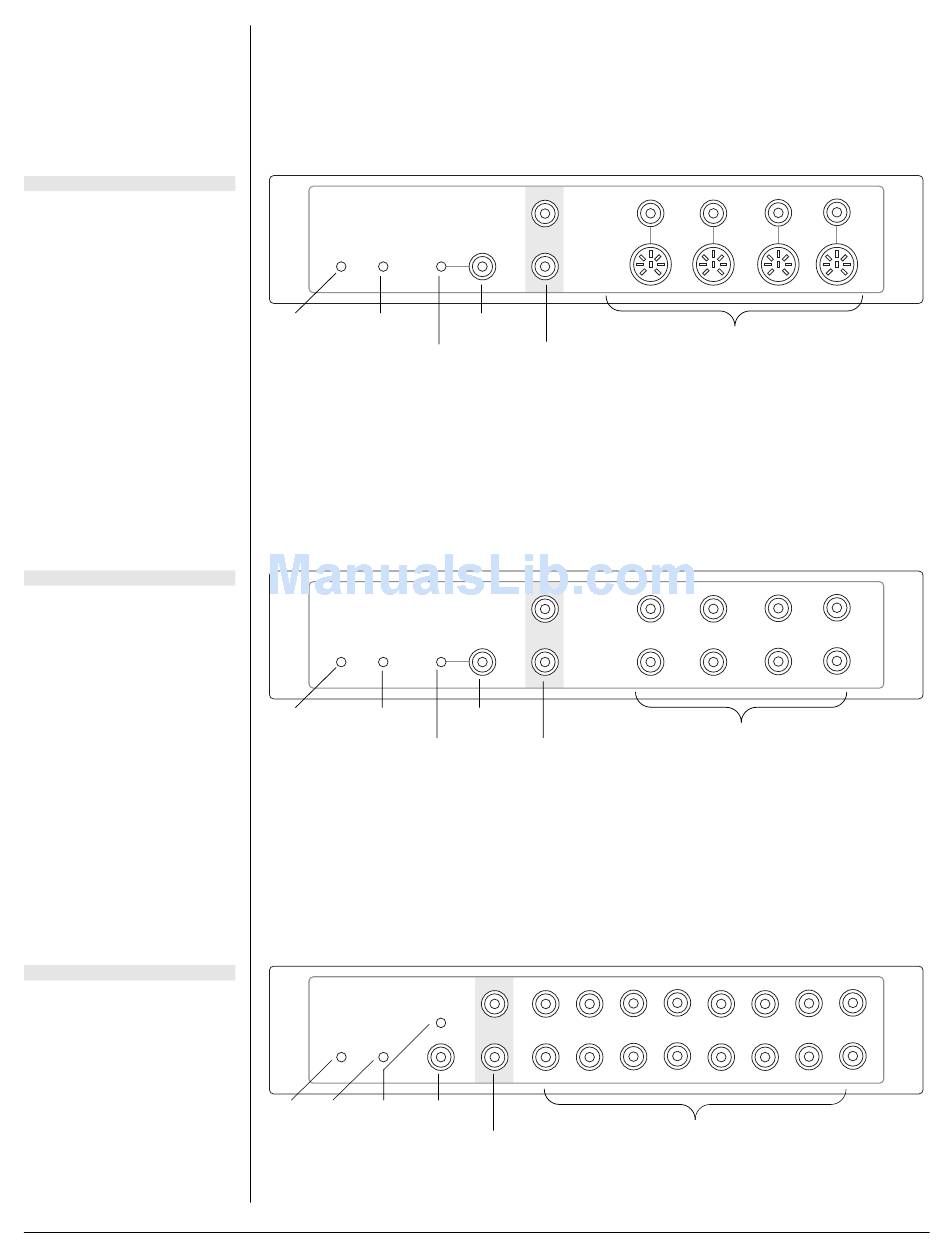

Figure 1–2
The front panel of the
PowerLab/4
SP
Figure 1–3
The front panel of the
PowerLab/8
SP
Figure 1–4
The front panel of the
PowerLab/16
SP
6
The PowerLab/4
SP
one BNC connector for the external trigger, two BNC connectors for
output, and four BNC connectors (marked Input 1 to Input 4), with
four alternative Pod (DIN) connectors, for recording external signals.
PowerLab/4
SP
ADInstruments
Power Status
Power Status light
light
Trigger light
The PowerLab/8
SP
one BNC connector for the external trigger, two BNC connectors for
output, and eight BNC connectors (marked Input 1 to Input 8), for
recording external signals.
PowerLab/8
SP
ADInstruments
Power Status
Power
Status light
light
Trigger light
The PowerLab/16
SP
one BNC connector for the external trigger, two BNC connectors for
output, and 16 BNC connectors (marked Input 1 to Input 16), for
recording external signals.
PowerLab/16
SP
ADInstruments
Trigger
Power Status
Power Trigger Trigger
Status
light light light
has three indicators at the left of the front panel,
Output 1
Trigger Output 2
Trigger
Analog output connectors
has three indicators at the left of the front panel,
Output 1
Trigger Output 2
Trigger
Analog output connectors
has three indicators at the left of the front panel,
Output 1 Input 1 Input 2 Input 3
Output 2 Input 9 Input 10 Input 11
Analog output connectors
Input 1 Input 2 Input 3
Analog input connectors
Input 1 Input 2 Input 3
Input 5 Input 6 Input 7
Analog input connectors
Input 4 Input 5 Input 6 Input 7
Input 12 Input 13 Input 14 Input 15
Analog input connectors
PowerLab Owner's Guide
Input 4
Input 4
Input 8
Input 8
Input 16
