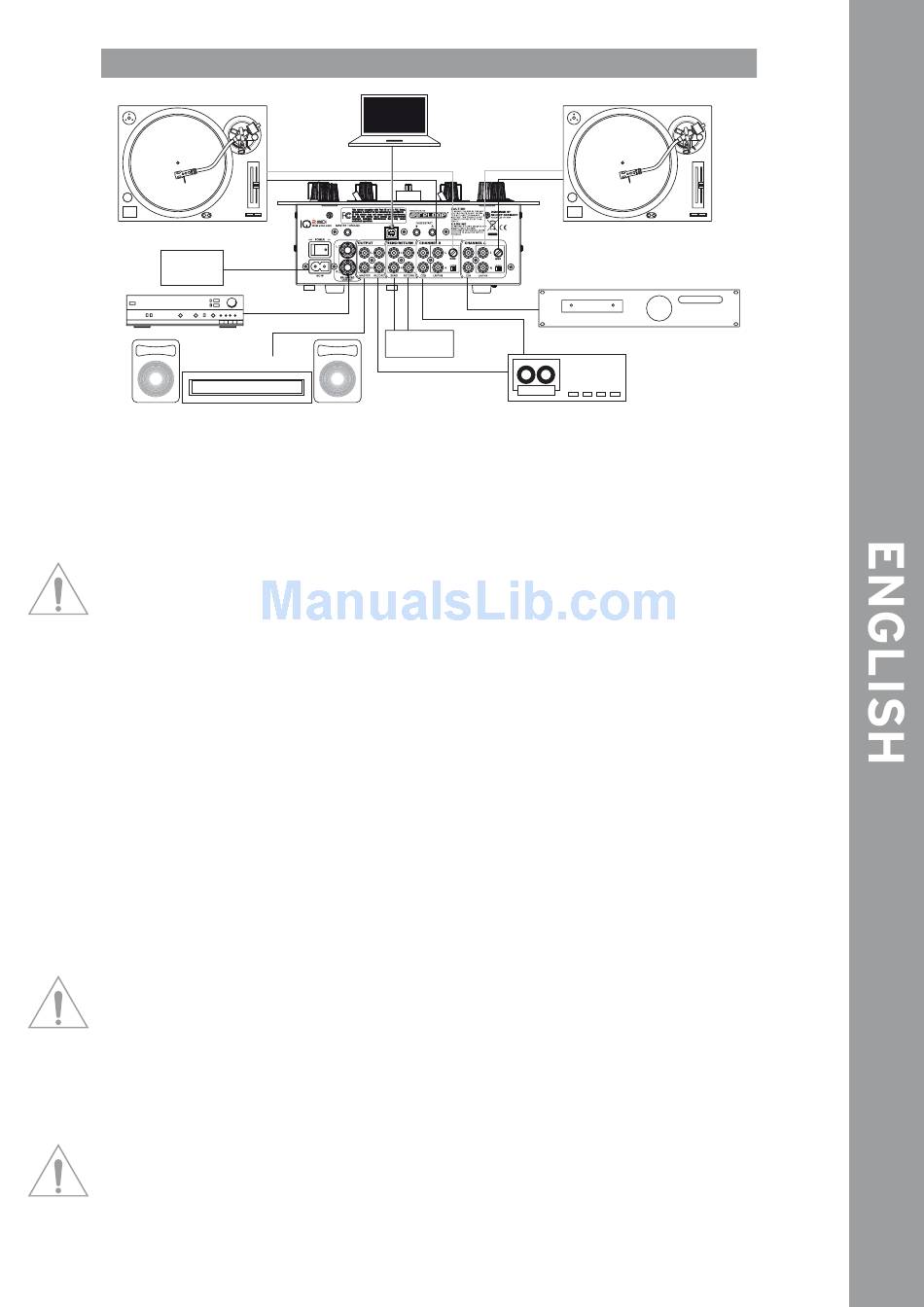

2. PERIPHERAL CONNECTIONS

The LN/PH2
switch has to be put
in the PH2 position.
Turntable
Power
Supply
Final Amplifier
Sound System
The Reloop IQ2 MIDI disposes of an integrated professional audio interface with 24 bit/96 kHz.
Therefore a further external or integrated PC soundcard is not necessary. In The following you can
find a list of possible connections:
2.1 Connect your line sources (CD players, MD players, etc.) and your turntables via the inputs for
channels A + B -31-. If you wish to connect turntables to the phono inputs make sure to put the Pho-
no/Line Assignment for Channels A+B -30- to the "PH" position; when connecting line sources to
these inputs you have to put the Phono/Line Assignment -30- to the "LN" position.
ATTENTION! Please always make sure that the device is turned off when using the Phono/Line
assignment -30-.
2.2 Connect the grounding cables of your turntables with the GND Grounding Screws of your mixer
-29-.
2.3 Connect your microphone to the microphone input -39-.
2.4 Connect your headphones via the Headphones Input 1 -44- (6.3 mm Jack). Alternatively or if
required you can connect a second pair of headphones with the Headphones Input 2 -45- (3.5 mm
jack).
2.5 Connect an MP3 player (for example) to the AUX input (3.5 mm jack) -38-. If you want to play
tracks from your MP3 player via the mixer, the Channel Input Selector -6- has to be used until AUX
will be displayed on the Input Signal Selection Display -49-.
2.6 Connect the output for the send signal -33- to the input of your effect device and sampler re-
spectively. Connect the output of your effect device and sampler respectively to the input for the
return signal -32-.
2.7 If required connect your CD player's fader start cords to the input for the fader start function
-28-.
2.8 If required, connect a second DJ mixer to the Master Through -51- of your Reloop IQ2 MIDI. The
master output signal will hereby be transmitted (not amplified).
NOTE! The input "A" for the fader start function -28- is assigned to channel A and the input "B"
for the fader start function is asigned to channel "B".
2.9 According to requirements connect your sound system to the Master Output (RCA) -35- or the
symmetrical Master Output (6.3 mm Jack) -36-.
2.10 Connect a recording device of your choice to the Record Audio Output (RCA) -34-.
2.11 Connect the USB Port -50- to a free USB port of your system in order to use the Reloop IQ2 MIDI
as full-fledged Audio/MIDI interface.
NOTE! Please also follow your computer's instruction manual regarding this matter.
2.12 Connect the mains cord to the input for the mains cord -26-. Connect the mains cord to an
outlet.
PC / MAC
The LN/PH1
switch has to be put
in the PH1 position.
Effect Device
TapeDeck
Turntable
CDPlayer
