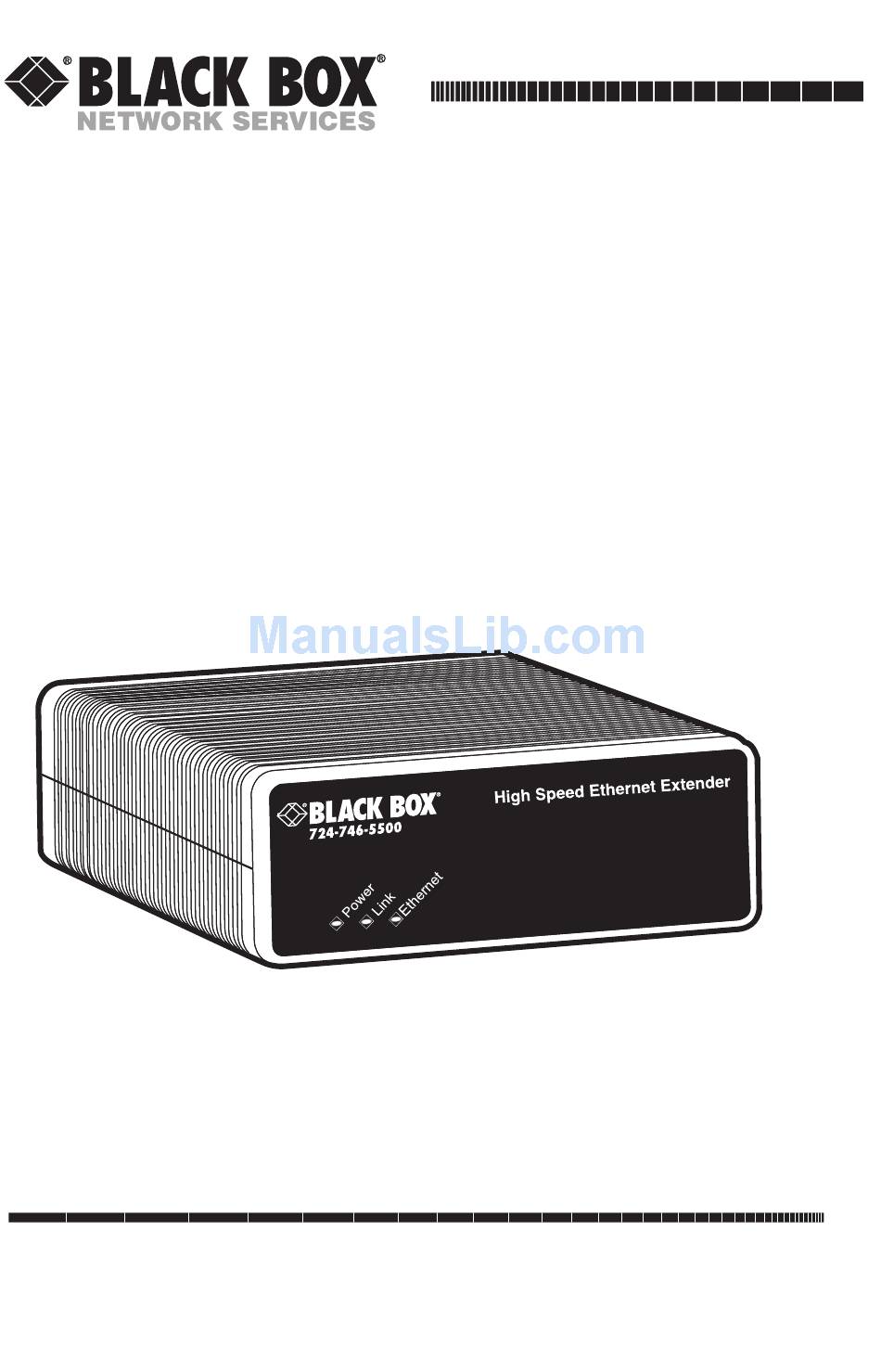

DECEMBER 2006
LB400A
High Speed
Ethernet Extender
CUSTOMER
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
SUPPORT
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
INFORMATION
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box LB400A
Summary of Contents for Black Box LB400A
-
Page 1: High Speed
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX SUPPORT FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com... -
Page 2: Ce Notice
HIGH SPEED ETHERNET EXTENDER CE NOTICE The CE symbol on your Black Box equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). A Certificate of Compliance is available by contacting Technical Support. -
Page 3: Trademarks Used In This Manual
HIGH SPEED ETHERNET EXTENDER In accordance with the requirements of council direc- tive 2002/96/EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you sepa- rate this product from other waste and scrap and deliver to the WEEE collection system in your country for recy- cling. - Page 4 HIGH SPEED ETHERNET EXTENDER 11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del tipo descrito en el instructivo de operación, o como se indique en el aparato. 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada.
-
Page 5: Table Of Contents
HIGH SPEED ETHERNET EXTENDER CONTENTS CE Notice ....................2 Radio and TV Interference ................2 Trademarks Used In This Manual ............... 3 Normas Oficiales Mexicanas (NOM) Electrical Safety Statement ..... 3 General Information ..................7 1.1 Features ....................7 1.2 Description ..................7 Installation .................... - Page 6 HIGH SPEED ETHERNET EXTENDER High Speed Ethernet Extender Interface Pin Assignment......21 B.1 10/100Base-T Interface ..............21 B.2 Line Interface ..................21 Distance Chart, Based on 24 AWG (0.5 MM) .......... 22...
-
Page 7: General Information
LAN extension and the other LB400A is configured as the (R) Remote unit at the other end. The LB400A is configured as a L or R via the switch on the rear panel. These units can automatically forward LAN broadcasts, multicasts, and frames across a 2-wire voice-grade twisted-pair link. - Page 8 HIGH SPEED ETHERNET EXTENDER Figure 1. Typical application The pair of LB400A models work together to create a transparent extension between two peered Ethernet LANs. Figure 1 shows a typical point-to-point application.
-
Page 9: Installation
2. Connect the Ethernet interface (refer to section 2.3, “Connecting the 10/100Base-T Ethernet Interface” on page 11). 3. Connect the power plug (refer to section 2.4, “Connecting Power” on page 12). LB400A t h e Power jack L i n... -
Page 10: Connecting The Twisted-Pair Line Interface
Follow the steps below to connect the High Speed Ethernet Extender interfaces. Note The LB400A works in pairs. One of the units must be a L (Local), and the other unit must be a R (Remote). It does not matter which end is the L and which is the R. -
Page 11: Connecting The 10/100Base-T Ethernet Interface
HIGH SPEED ETHERNET EXTENDER 2.3 Connecting the 10/100Base-T Ethernet Interface The Interconnecting cables shall be acceptable for external use and shall be rated for the proper applica- tion with respect to voltage, current, anticipated tem- perature, flammability, and mechanical serviceability. CAUTION The shielded RJ-45 port labeled Ethernet is the Auto-MDIX10/100Base-T inter- face. -
Page 12: Connecting Power
flammability, and mechanical serviceability. CAUTION The LB400A does not have a power switch, so it powers up as soon as it is plugged in. An external AC or DC power supply is available separately. This connection is made via the barrel jack on the rear panel of the LB400A. -
Page 13: Configuration
HIGH SPEED ETHERNET EXTENDER 3. Configuration The LB400A has eight DIP switches for configuring the unit for a wide variety of applications. This section describes switch locations and explains the different configurations. Using a small flat-tip screwdriver, remove the protective cover located on the underside of the Ethernet Extender (see Figure 5). -
Page 14: Configuring Dip Switch S1
HIGH SPEED ETHERNET EXTENDER Figure 6 shows the orientation of the DIP switches in the On and Off positions. Switch toggle Push toggle up for ON position Push toggle down for OFF position 1 2 3 4 5 6 7 8 Figure 6. -
Page 15: Switch S2-1: Symmetric/Asymmetric Operation
HIGH SPEED ETHERNET EXTENDER 3.1.1 S S2-1: S WITCH YMMETRIC SYMMETRIC PERATION Use switch S2-1 to configure the unit for symmetric or asymmetric operation.. Table 2: Symmetric/Asymmetric Settings S2-1 Setting Symmetric Operation Asymmetric Operation 3.1.2 S S2-2 S2-3: D WITCHES Use switches S2-1, S2-2 and S2-3 to configure the line rates. -
Page 16: Switch S2-7: Ethernet Shutdown
HUTDOWN Use switch S2-7 to enable or disable Ethernet Shutdown. When Ethernet Shut- down is enabled, the LB400A will disable the Ethernet interface when there is no link detected. When Ethernet Shutdown is disabled, the Ethernet interface will always be enabled. -
Page 17: Operation
12 to verify that the unit is connected to the appropriate power source. 4.2 Front Panel LED Status Monitors The LB400A features five front panel LEDs that monitor power, the Ethernet sig- nals, and the Line connection. Figure 7 on page 17 shows the front panel location of each LED. - Page 18 HIGH SPEED ETHERNET EXTENDER Table 8: Front panel LED description Description Power Solid GREEN to indicate the unit is powered on. Link Solid GREEN (ON) to indicate that the end-to-end link between the LB400As is established. The Link LED is OFF when the link is down. Ethernet Solid GREEN indicates that 10/100Base-T Ethernet link has been established.
-
Page 19: Specifications
HIGH SPEED ETHERNET EXTENDER A. Specifications A.1 LAN Connection Shielded RJ-45, 10/100Base-T, IEEE 802.3 Ethernet • Line Connection: RJ-45 • A.2 Transmission Line Two-wire unconditioned twisted pair. A.3 Line Rate and Distance Line Rate: 50 Mbps, symmetric upstream/downstream. Additional symmetric •... -
Page 20: Temperature Range
HIGH SPEED ETHERNET EXTENDER A.7 Temperature Range 0–50°C A.8 Humidity Up to 90% non-condensing. A.9 Dimensions 1.58H x 4.16W x 3.75D in. (10.6H x 4.1W x 8.8D cm) -
Page 21: B.1 10/100Base-T Interface
HIGH SPEED ETHERNET EXTENDER B. High Speed Ethernet Extender Interface Pin Assignment B.1 10/100Base-T Interface RJ-45 Pin 1: TX+ • Pin 2: TX- • Pin 3: RX+ • Pin 6: RX- • • Pins 4, 5, 7, 8: no connection B.2 Line Interface RJ-45 Pin 4: RING... -
Page 22: C. Distance Chart, Based On 24 Awg (0.5 Mm)
HIGH SPEED ETHERNET EXTENDER C. Distance Chart, Based on 24 AWG (0.5 MM) Distance in feet Throughput Symm Line Rate (km) at Max Distance 50 Mbps 800 (0.25 km) 25 Mbps 2,000 (0.61 km) 24.5 10 Mbps 4,000 (1.22 km) Throughput Asymm Line Rate Distance in feet... - Page 23 HIGH SPEED ETHERNET EXTENDER...
- Page 24 © Copyright 2002. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
