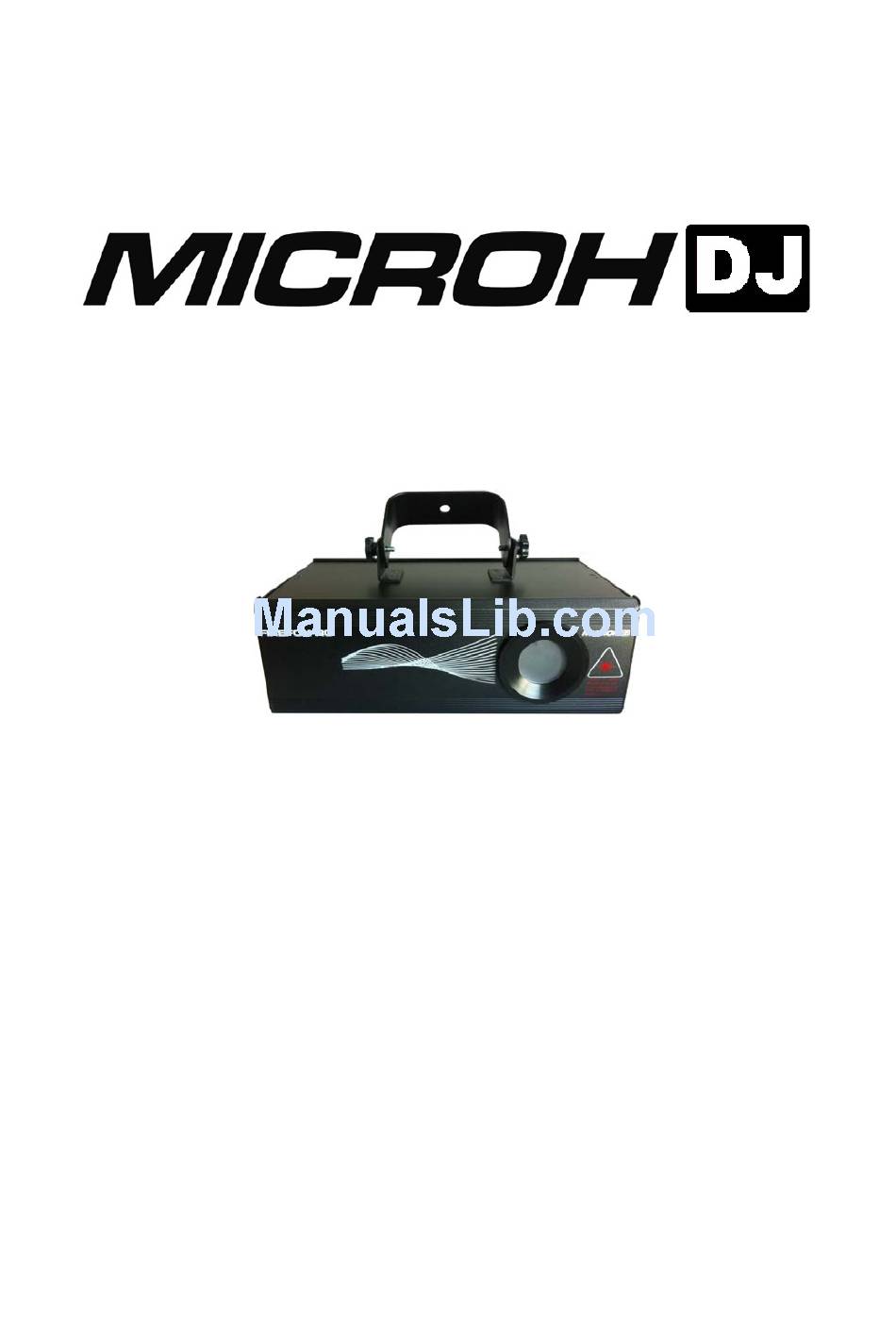

- Page 1 MODEL: FIREFOX-RG User Manual...
- Page 2 Thanks for your purchasing, please read this manual carefully before operating the system. It gives you general information for your safe and better operation. Inspection Check for the contents in the package refer to the following list: 1. Laser lighting: 1 2.
- Page 3 Function Setting （digital board） THE ‘MODE’ FUNCTION ‘Audi’: SOUND CONTROL ‘Auto’: AUTO-PLAY CONTROL ‘dxxx’: DMX512 CONTROL, xxx is DMX address UP: DMX address up DOWN: DMX address down ENTER: PLEASE PRESS ENTER AFTER YOU CHANGE STATE, Installation 1、Firstly, be sure that the using voltage is match with the voltage marked on the base of the laser lighting ;...
- Page 4 DMX512 This laser light is controlled by the standard DMX. Please connect controlling panel with the lighting as following Before using the DMX512 controller, you should set the channel address in the digital display. One unit has 8 channels, so each unit must be assigns 8 channels at least. We may assign 8 channels for one unit, then DMX address = 8*N+1, N=0, 1, 2, 3 ……...
- Page 5 DMX Control Parameter Chart Channel No DMX512 fig. Content 0~69 Laser off Control 70~139 Sound control Channel 1 mode 140-209 Auto play 210~255 DMX control Pattern 0~129 Static patterns for manual Channel 2 Selection 130--255 Dynamic Geometric patterns No move Horizontal 1~39 From left to right move...
- Page 6 Maintenance • Please clean the lens regularly. Do not do it using the wet cloth or other chemical. the clean times is depend on the using frequency and surrounding condition; it is recommended that should be cleaned every 20 days; •...
