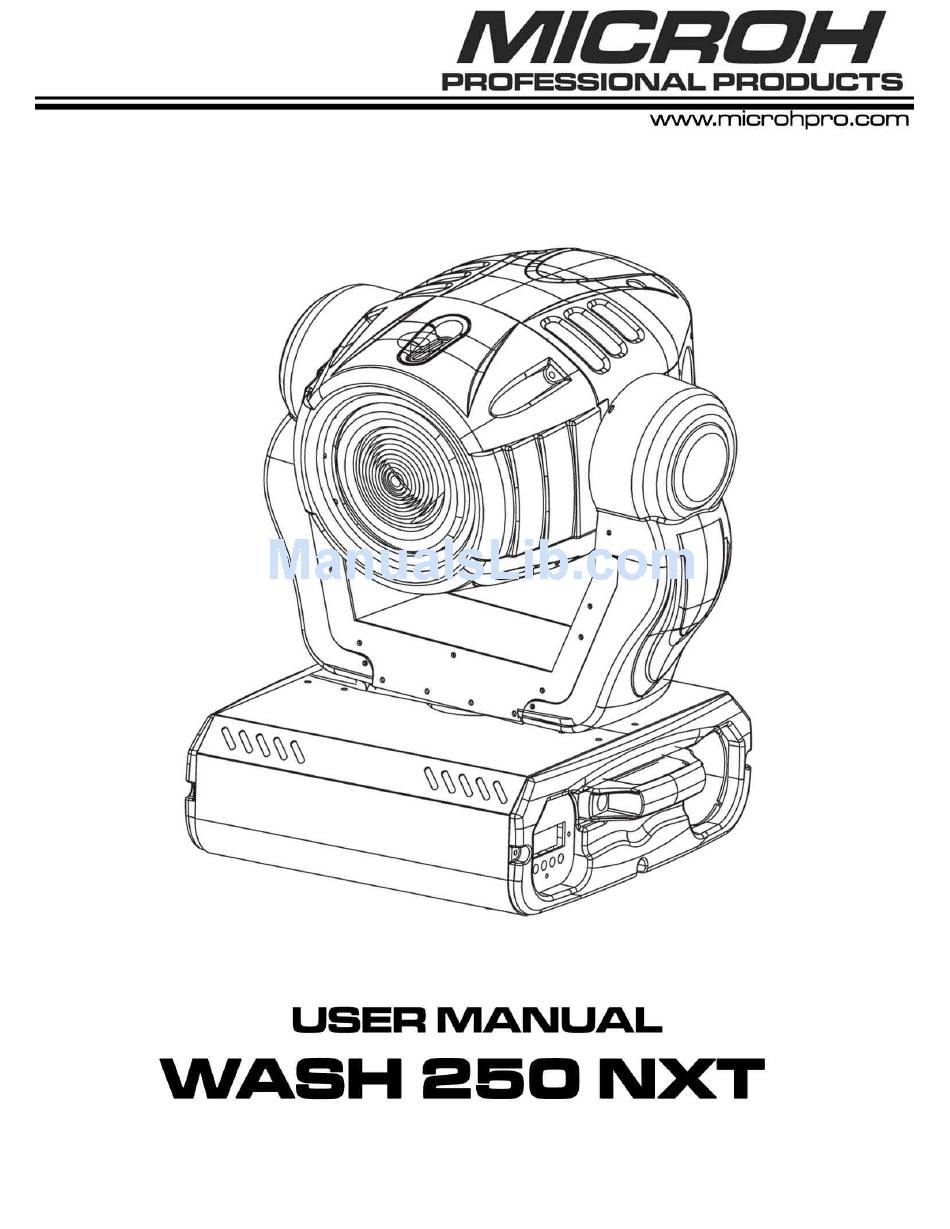

Microh Wash 250 NXT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wash 250 NXT and is the answer not in the manual?

Questions and answers

Related Manuals for Microh Wash 250 NXT

Summary of Contents for Microh Wash 250 NXT

  • Page 2: Table Of Contents

    Open the box and checking • • • • • • • • • • • • • • • • • • • • Pa ge 1 Safety instructions • • • • • • • • • • • • • • • • • • • • • • • • Pa ge 1 Operating determinations •...

  • Page 3: Open The Box And Checking

    1. Open the box and checking Congratulations on choosing our products! Please carefully read this instruction manual in its entirety and keep it well for using reference. This manual contained about the installation and the relative using information of this products. Please according to this manual's relative speaking when using this equipment.

  • Page 4: Operating Determinations

    Ø by the plug. Never pull out the plug by tugging the power-cord. Ø This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. Ø The electric connection, repairs and servicing must be carried out by a qualified employee.
  • Page 5 4. Deacription of the device...

  • Page 6: Installion

    5.Installion 5.1 Fitting the lamp To insert the lamp MSR 250/2 loosen the lamp cover at the rear of head (see the drawings ) by remowing the 3 fastening screws which are marked "X,Y,Z" . Carefully pull out the cover with the lamp socketassembly.If changing the lamp, remove the old lamp from the socket.
  • Page 7 5.3 Adjusting beam angle The Fresnel lens system can be Adjusting screw configured in the range between and 22 .To set the desired beam angle, and loose 2 adjusting Fresnel lens screws on the Fresnel lens unit and adjust the required beam angle. Tighten the adjusting screws again and fix back the front cover.

  • Page 8: Connection To The Mains

    Ø The projector can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics. Ø For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture.

  • Page 9: Control Board Operation

    Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another. Occupation of the XLR-connection: DMX-input DMX-OUTPUT XLR mounting-socket: XLR mounting-plug: 1- Ground 1 - Ground 2 - Signal (-) 2 - Signal (-) 3 - Signal (+)

  • Page 10: Dmx512 Channel Function

    Control board operation way: MODE MODE ENTER ENTER DOWN DOWN 1.Select working mode by pressing MODE. 2.Press ENTER to confirm the selection. 3.Press UP and DOWN to select working condition. 4.Press ENTER to confirm the selection. DMX512 Channel Function FUNCTION CHANNEL TILT PAN FINE (proportional)
  • Page 11 CHANNEL 1: PAN Effect Value Clockwise 0 ~540 ratation CHANNEL 2: TILT Value Effect Anti-clockwise 0 ~ 280 ratation...
  • Page 12 CHANNEL3 PAN FINE (proportional) Value Effect Fine control of pan movement (16 Bit) CHANNEL 4 TILT FINE (proportional) Value Effect Fine control of pan movement (16 Bit)
  • Page 13 CHANNEL 5 Speed of PAN/TILT movement Value Effect Slow Slow Fast Fast CHANNEL 6 Lamp on/off & reset Value Effect 240-255 94-100 No function Lamp off after 230-239 90-93 3 seconds 140-229 55-89 No function Lamp on after 128-139 50-54 3 seconds, Reset 0-127 0-49...
  • Page 14 CHANNEL 7: Rainbow Colors Wheel Effect Value Backwards rainbow 193-255 75-100 effect from slow to fast No rotation 191-192 Forwards rainbow 128-190 50-73 effect from slow to fast UV-filter 109-127 42-49 CTF5600K 91-108 35-41 CTF3200K 73-90 28-34 Green 54-72 21-27 Blue 36-53 14-20...
  • Page 15 CHANNEL9 Magenta Value Effect Magenta(gradually) White beam CHANNEL 10 Yellow Value Effect Yellow(gradually) Whit beam...
  • Page 16 CHANNEL 11 CMY speed adjust Effect Value Slow Slow Fast Fast CHANNEL 12: CMY color effect wheel Value Effect 97-100 Color 248-255 94-96 Color 240-247 Color 232-239 91-93 88-90 Color 224-231 85-87 Color 216-223 Color 208-215 82-84 200-207 78-81 Color 75-77 Color 192-199...
  • Page 17 CHANNEL 13: Effect wheel Value Effect Beam sheper 181-255 71-100 71-180 28-70 Frost filter 0-70 0-27 Full beam CHANNEL 14: Keep • Value Effect...
  • Page 18 CHANNEL 15: Shutter/strobe • Effect Value 224-255 87-100 Shutter Open 192-223 75-86 Random strobe- effect from slow to fast 160-191 62-74 Shutter Open 128-159 50-61 Pulse-effect in sequences from slow to fast 96-127 37-49 Shutter Open 64-95 25-36 Strobe-effect from slow to fast (max 10 Flashes/s) 32-63...

  • Page 19: Technical Specifications

    Technical specifications US-model: Voltage......AC100/110/120V , 50/60Hz Fuse........ T 6.3 A@120V EU-model:Voltage......AC220/230/240V ,50/60Hz Fuse ........T3.15 A @230V Rated Power 350W DMX512 Channel 16CHS Luminous 18000 LUX Lamp: Philips MSD 250/2 or MSD 250 GY 9,5 Optical system: -High luminous-efficiency parabolic reflector 8 ~22 manual zoom system -Fresnel lens of diameter 150 mm Dimmer: Smooth dimmer 0-100%...

  • Page 20: Beampath

    9. Beampath Min. beam angle 8 52 Foot-candles 8960 2240 1000 560 LUX 20 Distance (m) 2,8 Diameter(m ) Max. beam angle 22 23 Foot-candles 4050 1015 255 LUX 20 Distance (m) 1,94 3,89 5,83 7,77 Diameter(m ) Distance=5m 10000 (LUX) (Foot-candles) 8000...

  • Page 21: Maintenance And Cleaning

    10. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not buildup on or within the fixture. Otherwise, the fixtures light-output will be significantly reduced. Regular cleaning willnot only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.A soft lint-free cloth moistened with any good glass cleaning fluid is recommended, under no circumstances should alcohol or solvents be used!

  • Page 22: Structure Of The Fixture

    Structure of the fixture light head Fan Top cover Lamp Stathc gobo wheel Lamp holder Back panel of lamp holder CMY color filter(3pcs) Reflector Color wheel Tilt motor Driver Board Belt Display Board Transformer Capacitance Bottom Fan Ballast DMX512socket Seat cover Pan Motor Main PCB...

  • Page 23: Electrical Diagram

    12. ELECTRICAL DIAGRAM DISPLAY PCB DISPLAY PCB DMX IN DMX OUT DISPLAY CPU BLUE BOTTOM 12VDC FAN 11VAC Ic11 Transmission line RELAY Ic12 TILT MAIN PCB MAIN PCB Horge TILT Sensor Ic10 24VAC Sensor Horge MOTOR1 MOTOR3 MOTOR2 MOTOR4 MOTOR5 Magenta Cyan Yellow...
  • Page 24 13. Commen faulty maintain COMMEN FAULTY MAINTAIN FAULTY PHONMENON FAULTY ANALYSIS FAULTY PART PART No. PLUG CABLE 27-00-0010-04 POWER PLUG LOOSE WHOLE LIGHT CANN'T WORK FUSE 09-00-3151-00 POWER SWITCH FAULITY POWER SWITCH 08-05-0400-03 REACH THE LIFESPAN OR BED MSD 250/2 07-07-0250-02 QUALITY OF BULB TRIGGER FAULTY...

  • Page 25: Component Antitheses

    14.Component antitheses NAME PART NO . REMARK MOTOR1(Magenta -CMY) 15-00-0079-00 42BYGH026-02 MOTOR2(Yellow-CMY) 15-00-0033-00 42BYGH026-01 MOTOR3(Cyan-CMY) 15-00-0033-00 42BYGH026-01 MOTOR4(PAN) 15-00-0076-00 23HS0001-02 MOTOR5(TILT) 15-00-0076-00 23HS0001-02 MOTOR6(COLUR) 15-00-0073-01 42BYGH004-02 MOTOR7(EFFECT) 15-00-0001-00 42BYGH004-10 MOTOR8(SHUTTER ) 15-00-0073-01 42BYGH004-02 MOTOR9(DIMMER) 15-00-0073-01 42BYGH004-02 MAIN PCB 26-2A-2107XY-00 2107XY2.PCB 2108L PCB 26-2A-2108L-00 2107L.PCB...
  • Page 26 15. MAIN PCB...
  • Page 27 16. DISPLAY PCB...
  • Page 28 17. DRIVER PCB...
