Summary of Contents for Microh LED SLIM P64
-
Page 3: Table Of Contents

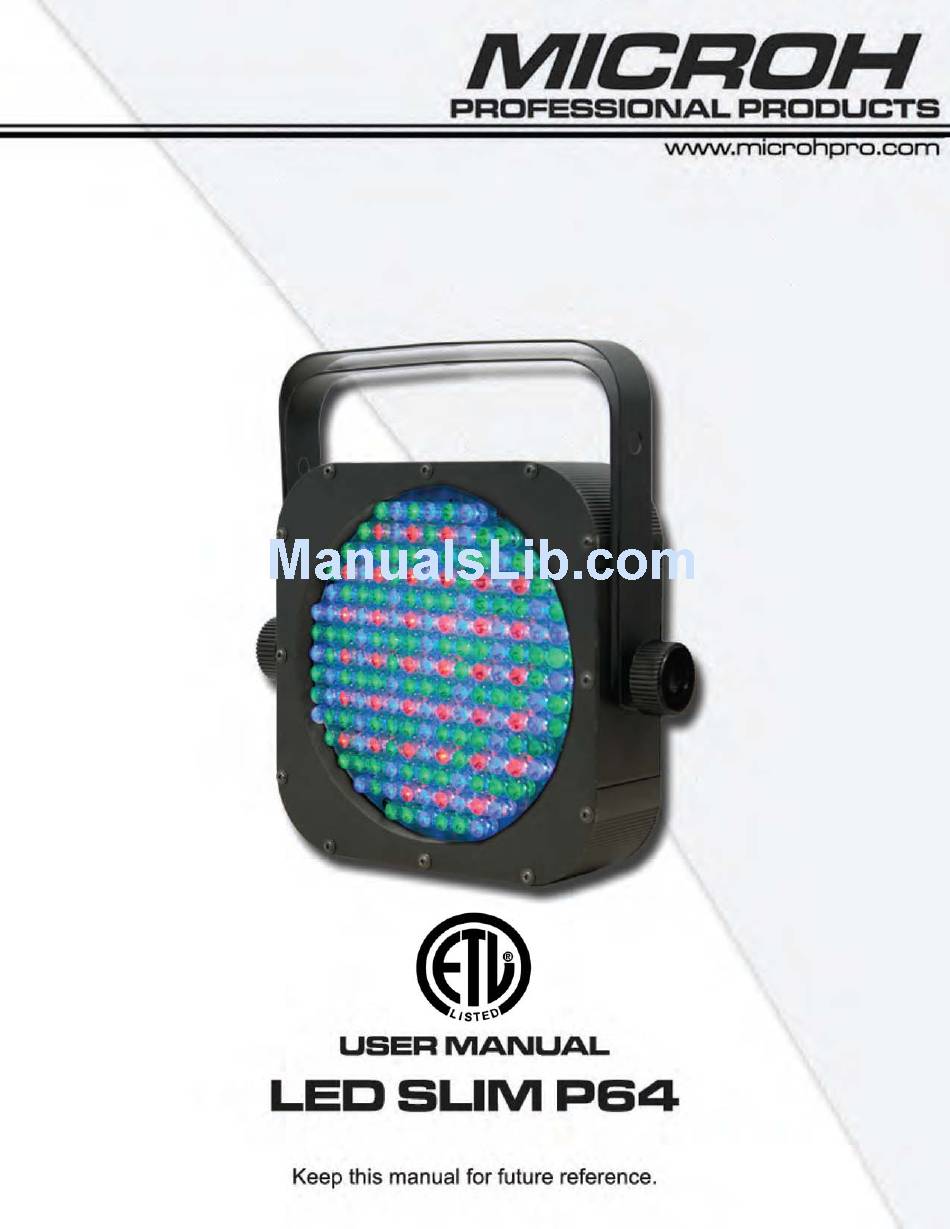

Meanwhile, please keep this manual for future reference. The MICROH LED SLIM P64 wash fixture is made of a new type of high temperature cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos. -
Page 4: Operation Instructions
Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power chord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. -
Page 5: Mounting And Installation
- To keep the LED display always on press MODE & UP simultaneously. Press MODE & OFF simultaneously for the LED display to auto shut off after 20 seconds of inactivity. Use MODE button to choose the required working mode, then using UP and DOWN to adjust the relative reference data： A．Single Colour：... -
Page 6: Dmx-512 Control Connections
3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the MICROH LED SLIM P64. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below. -
Page 7: Photometric Data
simply an XLR plug with a 120 Ω resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below. 120Ω PIN 3 PIN 2 6. -
Page 8: Key Features
DMX mode 2: 6 channels CHANNEL VALUE FUNCTION 000-189 DIMMER (dim→bright) 190-250 FLASH (slow→fast) 251-255 NO FUNCTION 000-255 RED (dim→bright) 000-255 GREEN (dim→bright) 000-255 BLUE (dim→bright) 000-031 NO FUNCTION 032-063 064-095 GREEN 096-127 BLUE 128-159 PURPLE 160-191 YELLOW 192-223 CYAN 224-255 WHITE 000-007... -
Page 9: Technical Specifications
9. TECHNICAL SPECIFICATIONS MODEL: LED SLIM P64 LAMP: 181 x 10mm LEDs (Red 36, Green 85, Blue 60) OPERATING TEMPERATURE: -25°C to 45°C VOLTAGE: 120VAC 60Hz FUSE: 1A 125V GMA MAX: 30W DIMENSIONS: 8.75” x 2.5” x 11”/ 222 x 64 x 279mm PACKING DIMENSIONS: 13.5”... -
Page 10: Maintenance And Cleaning
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this ...
