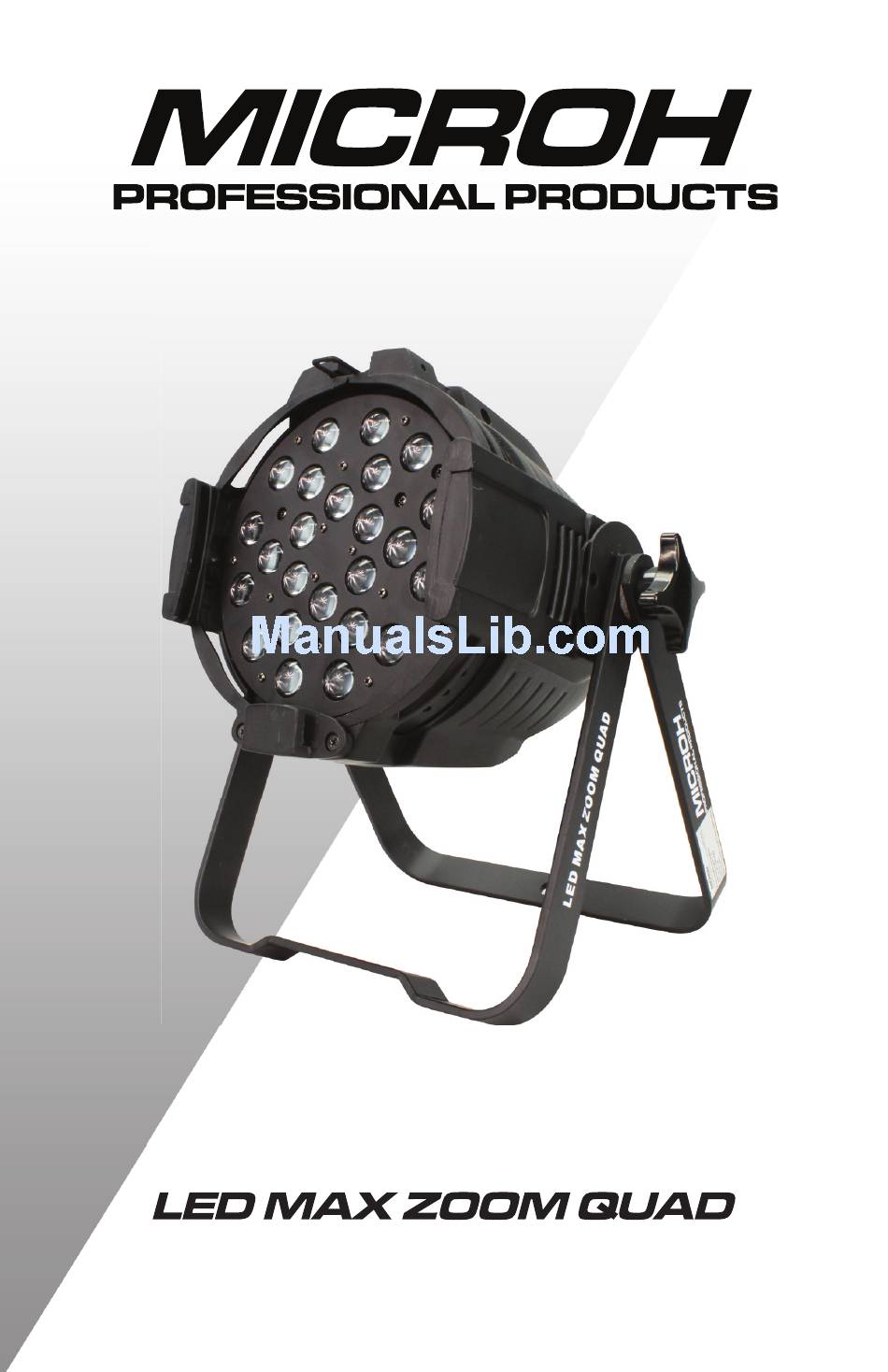

Page 1: User Manual
www.microhpro.com USER MANUAL Please read this user manual before using this product... -
Page 2: Specifications
Please install and operate the fixture according to instructions. Meanwhile, please keep this manual for future reference. The LED MAX ZOOM QUAD can make a very bright colourful and dynamic light scenery effects. The operation fron has three digital displays. You can operate it through the three buttons (Mode, Up, Down). -
Page 3: Safety Instructions
If your power cord is damaged in any way, please purchase a new power cord from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. Never pull out the plug by tugging the power cord. - Page 4 Operation To select one of the run modes, press the MODE button and UP button, when it is on. You can initialize it at extra factory setting, running on the auto-run program mode. Under any running mode, press the MODE + UP buttons, the LED display light will be on, When you press the mode MODE + DOWN buttons, the LED display will turn off until you press any button.
- Page 5 Sound Active Program Mode Press the MODE button, selecting Auto-run program mode. At this time, the three digital tube displays “S.XX.” Press UP or DOWN to select sound-active sensitivity grade 0-31. 0 is off sound active, 1 is the lowest sensitivity, 31 is the highest sensitivity. Slave Running Program Mode Press the MODE button, selecting Auto-run program mode.
- Page 6 Setup Menu (cont.) Mode Setup Up/Down Instruction Sound Mode Select the built in sound mode Select Sound Sensitivity Sensitivity adjust (low to high) Mode Select Beam angle adjust (large to Zoom small) Dreaming Built-in dreaming mode Mode Select Jumping Built-in jumping mode Auto Mode Select Adjust thr speed of dreaming/...
- Page 7 XLR output of your controller and the other side to the male 3 pin XLR input or the LED MAX ZOOM QUAD. To connect the units to DMX, you must daisy chain the fi xtures together as a referred in the diagram below. Always end your DMX-512 connection with a DMX terminator.
- Page 8 Improper installation can result in bodily injury or damage. Regardless of the rigging option you choose for your MICROH LED MAX ZOOM QUAD fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable hanging bracket.
- Page 9 DMX Channel Modes 5CH Mode Channel Value Function 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 White dimmer (0-100%) Zoom adjust the beam angle from smallest to biggest when set to 000-255 Zoom adjust the beam angle from biggest to smallest when set to 6CH Mode Channel...
- Page 10 8CH Mode Channel Value Function 000-255 Dimmer (0-100%) 000-255 Red dimmer (0-100%) 000-255 Green dimmer (0-100%) 000-255 Blue dimmer (0-100%) 000-255 White dimmer (0-100%) 016-255 Strobe (CH 2-5) (slow to fast) 000-255 Speed (CH 7) (slow to fast) (value 160-239) 000-255 Sound sensitivity (CH 7) (low to high) (value 240-255) 000-015...
-
Page 11: Maintenance And Cleaning
Never use alcohol solvents. There are no serviceable parts inside the device. Please refer to the instructions under “Installation Instructions.” Should you need any spare parts, please order genuine MICROH parts from your local dealer. CAUTION! Take care using this equipment! High voltage risk of electric shock! - Page 12 For more information please contact: www.microhpro.com info@microhpro.com 905.428.9062...
