Summary of Contents for Microh LED TRI BAR V2
-

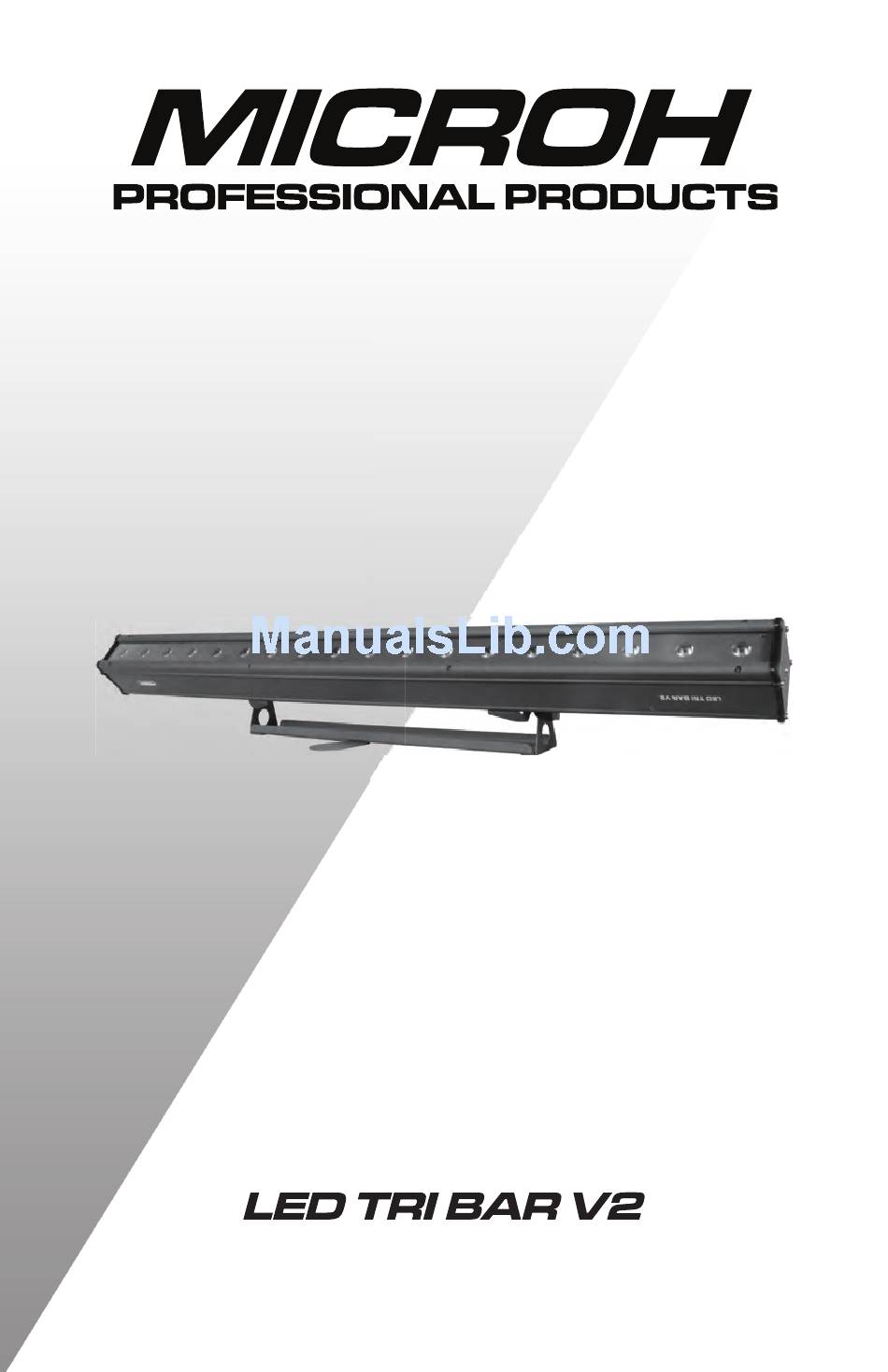

Page 1: User Manual
www.microhpro.com USER MANUAL Please read this user manual before using this product... -
Page 2: Key Features

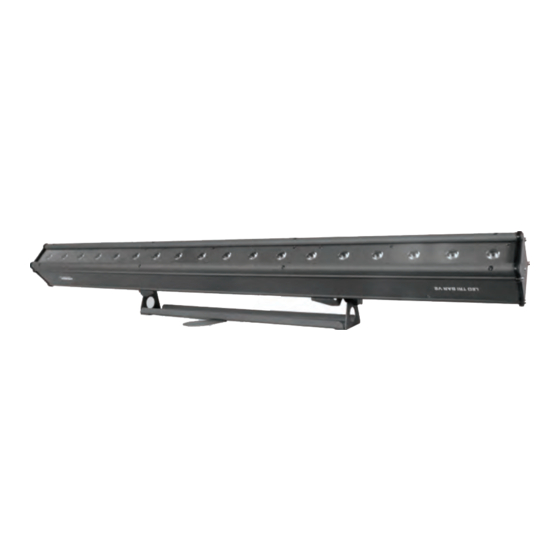

Please install and operate the fixture according to instructions. Meanwhile, please keep this manual for future reference. The MICROH LED TRI BAR V2 wash fixture is made of a new type of high temperature cast aluminum casing. This fixture is designed and manufactured strictly following CSA standards, complying with international DMX512 protocol. -
Page 3: Safety Instructions
If your power cord is damaged in any way, please purchase a new power cord from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. Never pull out the plug by tugging the power cord. - Page 4 Operation Instructions • Do not turn this fixture on if it has been through severe temperature differences. Damage may occur to the fixture. Wait until unit is at room temperature to operate. • This unit should be protected from any tremors or agitations during transport. •...
- Page 5 Sound Active Mode • From the main menu, select either “SOUA” or “SOUF”. • SOUA mode will chase randomly through the internal programs activated by sound. • SOUF mode will chase through seven individual full bar colours. • To adjust the audio sensitivity, select “SEnS” from the main menu and press ENTER.
- Page 6 Manual Mode Red dimmer Green dimmer Blue dimmer Auto Mode Flash Automatic fade in and fade out Auto change seven colours Chase lights Chase lights speed Sound Control Mode Sound chase lights Sound seven colour flash Se00-se15 Synchronization mode (Master/Slave) Choose same as (manual, auto, sound Master light control) mode way...
-
Page 7: Mounting And Installing
Truss Mounting Floor Mounting Regardless of the rigging option you choose for your MICROH LED TRI BAR V2 wash fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable hanging bracket. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. -
Page 8: Dmx -512 Control Connections
3 pin XLR output of your controller and the other side to the male 3 pin XLR input or the LED TRI BAR V2. To connect the units to DMX, you must daisy chain the fi xtures together as a referred in the diagram below. Always end your DMX-512 connection with at DMX terminator. - Page 9 MENU NAVIGATION...
-
Page 10: Dmx Channels
DMX Channels 3CH A Mode DMX Channel Function Value Description 000-255 LED colour 000-255 LED colour Green 000-255 LED colour Blue 6CH P Mode DMX Channel Function Value Description 000-255 0 - 100% Dimmer 000-255 LED colour 000-255 LED colour Green 000-255 LED colour... -
Page 11: Maintenance And Cleaning
We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol solvents. There are no serviceable parts inside the device. Please refer to the instructions under “Installation Instructions.” Should you need any spare parts, please order genuine MICROH parts from your local dealer. - Page 12 For more information please contact: www.microhpro.com info@microhpro.com 905.428.9062...
