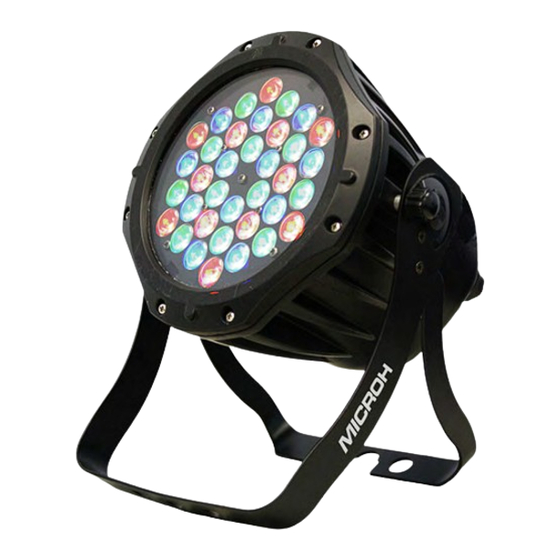

- Page 2 The MICROH LEDSTAGEPAR V2 wash fixture uses 36 x 1W LEDs (12 Red, 12 Green, and 12 Blue). Please unpack carefully when you receive the fixture and check if it was damaged during the transportation. And please check whether the following items are included inside the box: Fixture –...
- Page 4 MASTER/SLAVE MODE - By connecting either the 3 or 5 pin DMX, you can daisy chain up to 30 units on master/ slave mode. Daisy chain the fixtures together by plugging from the DMX output of the first fixture into the DMX input of the second fixture, and so on… - On your Master fixture set the unit to SOUND, MANUAL, COLOUR FADE or COLOUR CHASE control and select one of the internal programs.
- Page 5 3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LEDSTAGEPAR V2. To connect the units to DMX, you must daisy chain the fixtures together as referred in the diagram below.
- Page 9 7. DMX CHANNELS DMX profile Mode A (3CH) FUNCTION DESCRIPTION VALUE colour 0 - 255 colour GREEN 0 - 255 colour BLUE 0 - 255 DMX profile Mode P (4CH) FUNCTION DESCRIPTION VALUE DIMMER MASTER DIMMER 0 - 255 colour 0 - 255 colour GREEN...
- Page 10 - 30° Beam Angle (15° & 45° Lens Kits Available) - Double Bracket for Truss and Floor Mounting - Digital Display 9. TECHNICAL SPECIFICATIONS MODEL: LEDSTAGEPAR V2 LAMP: 36 1W LEDS VOLTAGE: 120VAC 60Hz WARRANTY: 2 Year Limited Warranty 10. MAINTENANCE AND CLEANING The following points have to be considered during the inspection: 1) All screws for installing the device, or parts of the device must be tightly connected, and must not be corroded.
- Page 11 In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this...
