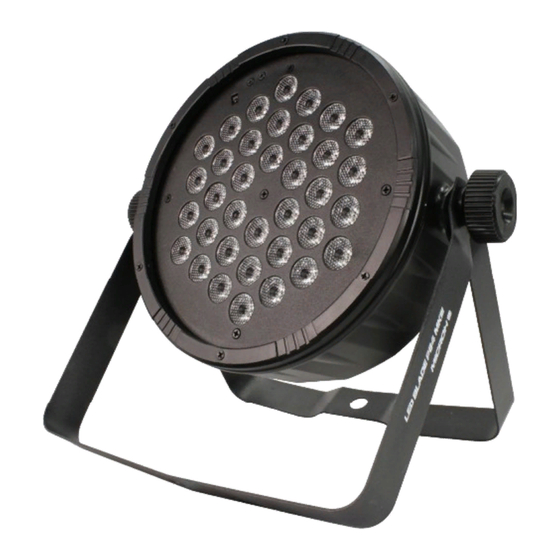

  • Page 3 The LED BLADE P64 MKIII par fixture features 36 LEDs (9 Red) (9 Green) (9 Blue) (9 White). Please carefully unpack it when you receive the fixture and check if it was damaged during the transportation.

  • Page 4: Safety Instructions

    If your power cord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. Never pull out the plug by tugging the power cord.

  • Page 5: Mounting And Installation

    Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. Clamp Mounting: The MICROH DJ LED BLADE P64 MKIII provides a unique mounting bracket assembly that integrates 2 brackets to be used to mount on a truss or the floor.
  • Page 6 Regardless of the rigging option you choose for your LED BLADE P64 MKIII, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above.

  • Page 7: Key Description

    DMX512 Control Data Connection: This fixture complies with international USITT DMX standards and can be used with a 3 pin DMX connector. Plug in the 3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the LED battery par light.

  • Page 8: Menu Display

    Menu Display Number Display Show Function d001-d512 DMX mode CHnd 4 or 8 channel selection Auxx/Soxx Au01-Au08: RGBW Colour mixing Au09: Colour jumping Au10: Colour fade So01-So02: Sound mode St00 St00: Master to strobe St00:-St16: Strobe slow to fast SP00-SP16 Colour jumping and colour gradient speed (slow to fast) R000-R255...
  • Page 9 DMX512 Controller Channel Function 4 Channel Mode Channel Value Function 000-255 Red dimmer 000-255 Green dimmer 000-255 Blue dimmer 000-255 White dimmer 8 Channel Mode Channel Value Function 000-255 Dimmer 000-255 Red dimmer 000-255 Green dimmer 000-255 Blue dimmer 000-255 White dimmer 004-255 Strobe (slow to fast)

  • Page 10: Specifications

    Specifications Voltage: AC120V, 60Hz 5A Power Consumption: 60W LED Quantity: 36x1 Watt (9 Red) (9 Green) (9 Blue) (9 White) Function: DMX512, Sound Control, Auto, Master/Slave, IR Remote Beam Angle: 25° DMX Channel: 4 CH/ 8 CH Display: LCD function show Net Weight: 1.5Kg Product Size (mm):...

  • Page 11: Maintenance And Cleaning

    Maintenance And Cleaning The following points have to be considered during the inspection: All screws for installing the device or parts of the device must be tightly connected, and must not be corroded. There must not be any deformations on the housing, colour lenses, fixations or installation spots (ceiling, suspension, trussing).
