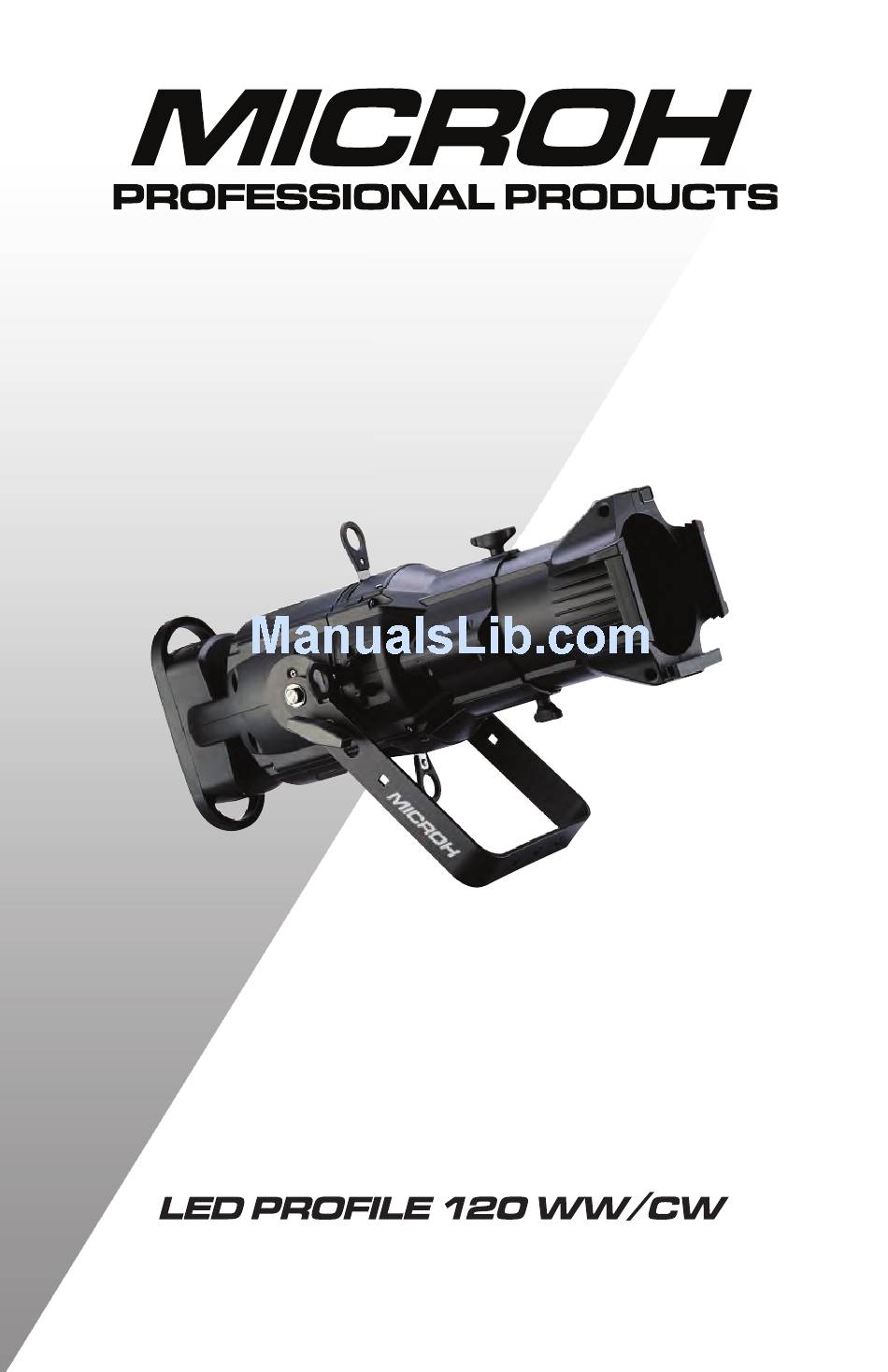

Page 1: User Manual
www.microhpro.com USER MANUAL Please read this user manual before using this product... -
Page 3: Specifications
Introduction Thank you for purchasing the MICROH LED PROFILE 120 WW/CW fixture (WW & CW units sold separately). For your own safety and knowledge, please read this manual before installing or operating this device. This manual covers the important information on installation and applications. Please install and operate the fixture according to instructions. - Page 4 Profile With the idea of energy saving and environment protection, the device use lower power loss and extremely high efficiency led. The device housing cover is made of used the new high strength heat resistance engineering plastics, with beautiful shape and smooth lines. The designing and manufacturing is in compliance with the IEC/QPS/CSA standard.
-
Page 5: Safety Warning
Safety Warning • Every person involved with the installation, operation and maintenance of this device must be qualified. • User/installer must follow the instructions of this manual. • Unqualified persons must not open the housing cover and operate the device, or the dealer will not accept liability for any resulting defects or problems. - Page 6 Installation • During installation, keep the device far away from heat-sensitive objects and explosive-sensitive objects, leave at least 50cm of free space around the device. • When the device is put on a horizontal area, the device must be placed directly on the area and must be secured with a mounting holder.
-
Page 7: Dmx512 Connection
DMX512 Connection • Please use XLR-XLR wires connect the DMX output of the controller with the DMX input of the first device, and connect the DMX output of the first device with the DMX input of the second device, always connect one output with the input of the next device until all devices are connected. - Page 8 The Use of Gobo Frames • Take out the gobo frame, loosen the screws, insert the gobos and lock the screws again. • Insert the gobo frame in the slot. Use Iris • Loosen the screws and insert the iris.
- Page 9 Replacing fuse • Before replacing the fuse, unplug main power source lead. • Procedure: Step 1: Unscrew the fuse holder on the rear panel with a fitting screw driver from the housing (counter-clockwise). Step 2: Remove the old fuse from the fuse holder. Step 3: Install the new fuse in the fuse holder.
-
Page 10: Dmx Protocol
Operation Basic Setting • [Address 001] is the default setting, then switch on the device, the device display with show the message [R001]. • Presss [ENTER] key into and select [R001], Use the [UP] and [DOWN] keys to select required address lrOO 1-5 121 and press to confirm or to cancel and return to the main menu. -
Page 11: Cleaning And Maintenance
Problem and Solution Problem Reason Resolution AC 120V, 60Hz Device not functioning No power Check the power connection, and make sure device connect the mains Device not work No power in well condition. Check if switch is on Check if the fuse is good LED Bulb is off LED bulb damage... - Page 12 For more information please contact: www.microhpro.com @microhpro.com 905.428.9062...
