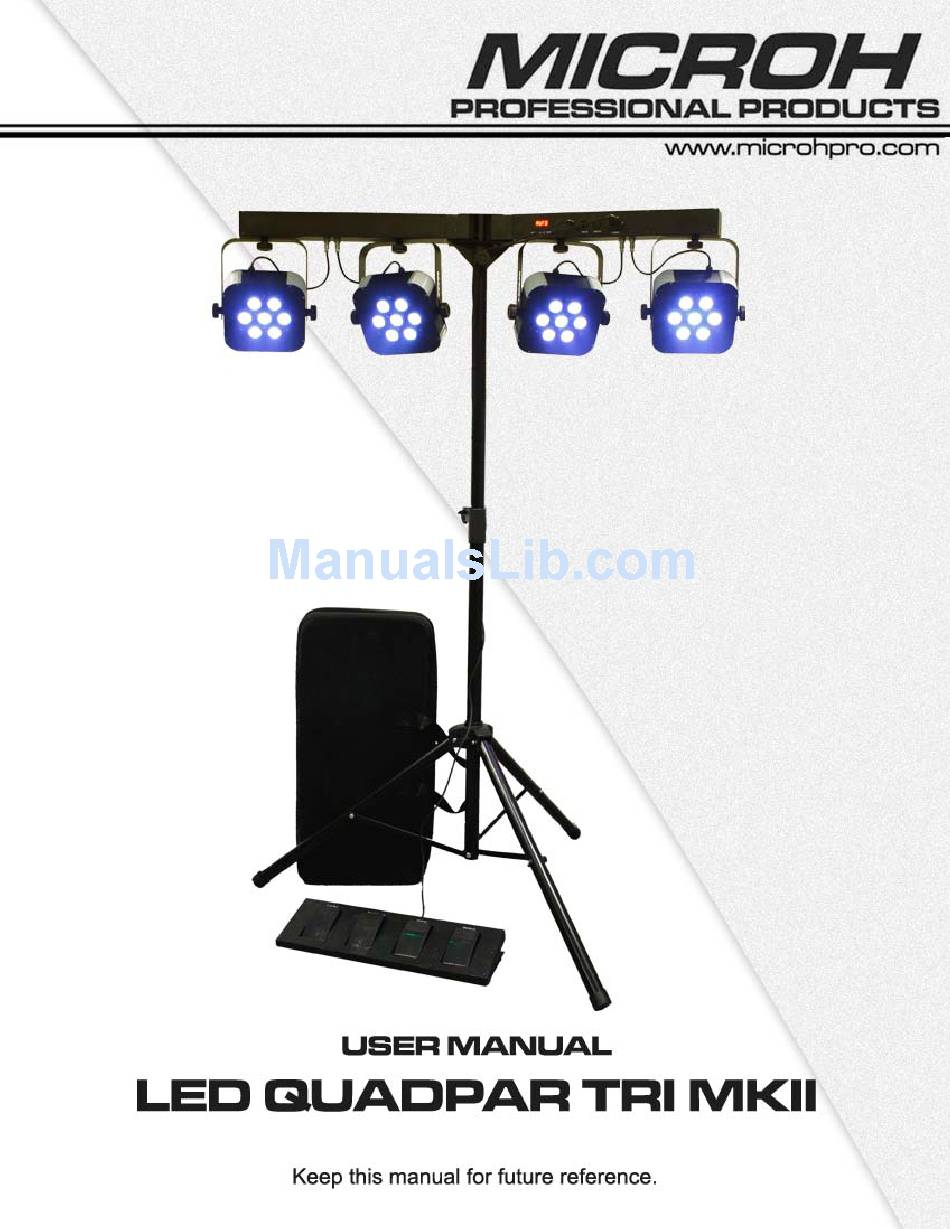

Microh LED Quadpar TRI MKII User Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Quadpar TRI MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microh LED Quadpar TRI MKII

Summary of Contents for Microh LED Quadpar TRI MKII

  • Page 2: Table Of Contents

    DMX512 protocol. This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos. The MICROH LED QUADPAR TRI MKII wash fixture uses 436 powerful 10mm LED’s (109 per head – 20 Red, 52 Green, 37 Blue) swhich feature high brightness and stability.

  • Page 3: Operation Instructions

    Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power chord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it.
  • Page 4 - Any non-manufacturer additions, modifications or changes in any way will void all warranty. - Please do not attempt to open unit. It is only to be serviced by an authorized technician. If this occurs, or is apparent, the warranty will be voided.
  • Page 5 SOUND ACTIVE MODE - Press MODE button, ”SU.XX” is display, and then press UP or DOWN button to set the sound level (0-31). Under this mode, the SETUP button does not function. MASTER/SLAVE MODE - To activate slave mode press MODE button, ”SLAU.” is displayed. Under this mode SET UP, UP and DOWN do not function. DMX MODE - Press MODE button.

  • Page 6: Mounting And Installation

    Improper installation can result in bodily injury and damage. The MICROH LED QUADPAR SERIES can be mounted by using the pole mount on the base of the T bar. Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet.

  • Page 7: Dmx-512 Control Connections

    5. DMX-512 CONTROL CONNECTIONS This fixture complies with international USITT DMX standards and can be used with either a 3 pin or 5 pin DMX connector. Plug in the provided 3 pin XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the fixture.

  • Page 8: Photometric Data

    6. PHOTOMETRIC DATA...

  • Page 9: Menu Navigation

    7. MENU NAVIGATION...

  • Page 10: Dmx Channels

    8. DMX CHANNELS DMX mode 1：3 channel mode CH No. DMX value Function 000~255 Red(dim→bright) 000~255 Green(dim→bright) 000~255 Blue(dim→bright) DMX mode 2: 4 channel mode CH No. DMX value Function 000~255 Master dimmer(dim→bright) 000~255 Red(dim→bright) 000~255 Green(dim→bright) 000~255 Blue(dim→bright) DMX mode 3: 8 channel mode CH No.
  • Page 11 DMX mode 4: 14 channel mode CH No. DMX value Function 000~255 Master dimmer(dim→bright) No function 001~255 Strobe(slow→fast) 000~255 Red panel 1(dim→bright) 000~255 Green panel 1(dim→bright) 000~255 Blue panel 1(dim→bright) 000~255 Red panel 2(dim→bright) 000~255 Green panel 2(dim→bright) 000~255 Blue panel 2(dim→bright) 000~255 Red panel 3(dim→bright) CH10...
  • Page 12 DMX mode 5: 2 channel mode 0-11 off 12-23 red 24-35 yellow No function 36-47 green 48-59 cyan 60-71 blue 72-83 purple 84-95 white 96-107 program 2 speed 108-119 program 3 0~stop 120-131 program 4 1~255（into99 132-143 program 5 grade, 144-155 program 6 156-167 program 7 1~2 is grade 1；more than 247 is grade...
  • Page 13 DMX mode 6: 15 channel mode CH10 CH11 CH12 CH13 CH14 CH15 Green Blue Green Blue Green Blue Green Blue (panel (panel (panel (panel (panel (panel (panel (panel (panel (panel (panel (panel dimmer mode strobe 0~9= speed 10-249 0~stop 10-255 10~25 auto- 1~255...
  • Page 14 DMX mode 7: 7 channel mode 0-11 off No Function 12-23 red 24-35 yellow 36-47 green No Function 48-59 cyan 60-71 blue 72-83 purple 84-95 white 96-107 program 2 108-119 program 3 Master 120-131 program 4 Dimmer 0-255 132-143 program 5 0-255 Green Blue...

  • Page 15: Key Features

    - 4-Pedal Foot Switch Operation - IR Remote Optional Operation (LEDQUADPAR-REMOTE) - Digital Display 10. TECHNICAL SPECIFICATIONS MODEL: LED QUADPAR TRI MKII LAMP: 28 Tri LEDS (Per Head:7) VOLTAGE: 120VAC 60Hz 180W FUSE: 120VAC 1.5A DIMENSIONS (W x H): 47.2" x 94.5" (Max Height 9.8') / 120 x 240 cm (Max Height 3m) CASE DIMENSIONS (lL x W x H): 29"...

  • Page 16: Maintenance And Cleaning

    In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this...
