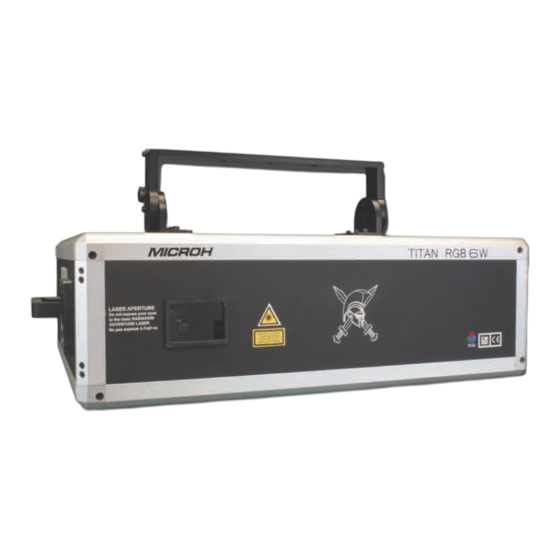

Meanwhile, please keep this manual for future reference. The MICROH LED TITAN RGB 6W laser is made of a new type of high temperature cast aluminum casing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. This fixture is applicable but not limited to large-scale live performances, theater, studio, nightclubs and discos. -
Page 3: Operation Instructions
Make sure the power cord is never crimped or damaged in any way, as this could cause shock and damage. If your power chord is damaged in any way, please purchase a new cable from your local MICROH dealer. Always disconnect power, when the device is not in use or before cleaning it. -
Page 4: Mounting And Installation
To run the TITAN RGB 6W in AUTO mode, you must set the unit to “AUTO-PLAY” using the on board menu. Once selected, press ENTER to confirm. SOUND ACTIVE MODE To run the TITAN RGB 6W in sound active mode, you must set the unit to “AUDI” using the on board menu. Once selected, press ENTER to confirm. DMX MODE To control the TITAN RGB 6W via DMX, select “dxxx”... -
Page 5: Dmx-512 Control Connections
Regardless of the rigging option you choose for your MICROH TITAN RGB 6W wash fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. -
Page 6: Menu Navigation
For installations where the DMX cable has to run a long distance, or is in an electrically noisy environment, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω... -
Page 7: Dmx Channels
PC Control If the unit is set to ILDA mode (use PC software to control light), simply connect ILDA signal to DB25 jack. ILDA mode(PC control) and built-in program mode can be identified and transmitted automatically. 7. DMX CHANNELS Channel No DMX512 fig. -
Page 8: Key Features
- DMX, ILDA, Sound, Auto, Master/Slave Run Modes -12 DMX Channels - Emergency stop box with 5 meter (16.4ft) connector cable 9. TECHNICAL SPECIFICATIONS MODEL: TITAN RGB 6W LASER DIODE: DPSS, Red650nm, Green 532nm, Blue445nm SCANNER: 35 Kpps SCANNING ANGLE: ± 30°... -
Page 9: 10. Maintenance And Cleaning
In the event that your unit is defective in any way, please contact your local dealer to obtain an RA number for service repair. DISCLAIMER – MICROH believes that the information contained within this user manual is accurate. However, Microh is not responsible for any error or addendums to this manual. If you have any comments or general suggestions on how this...
