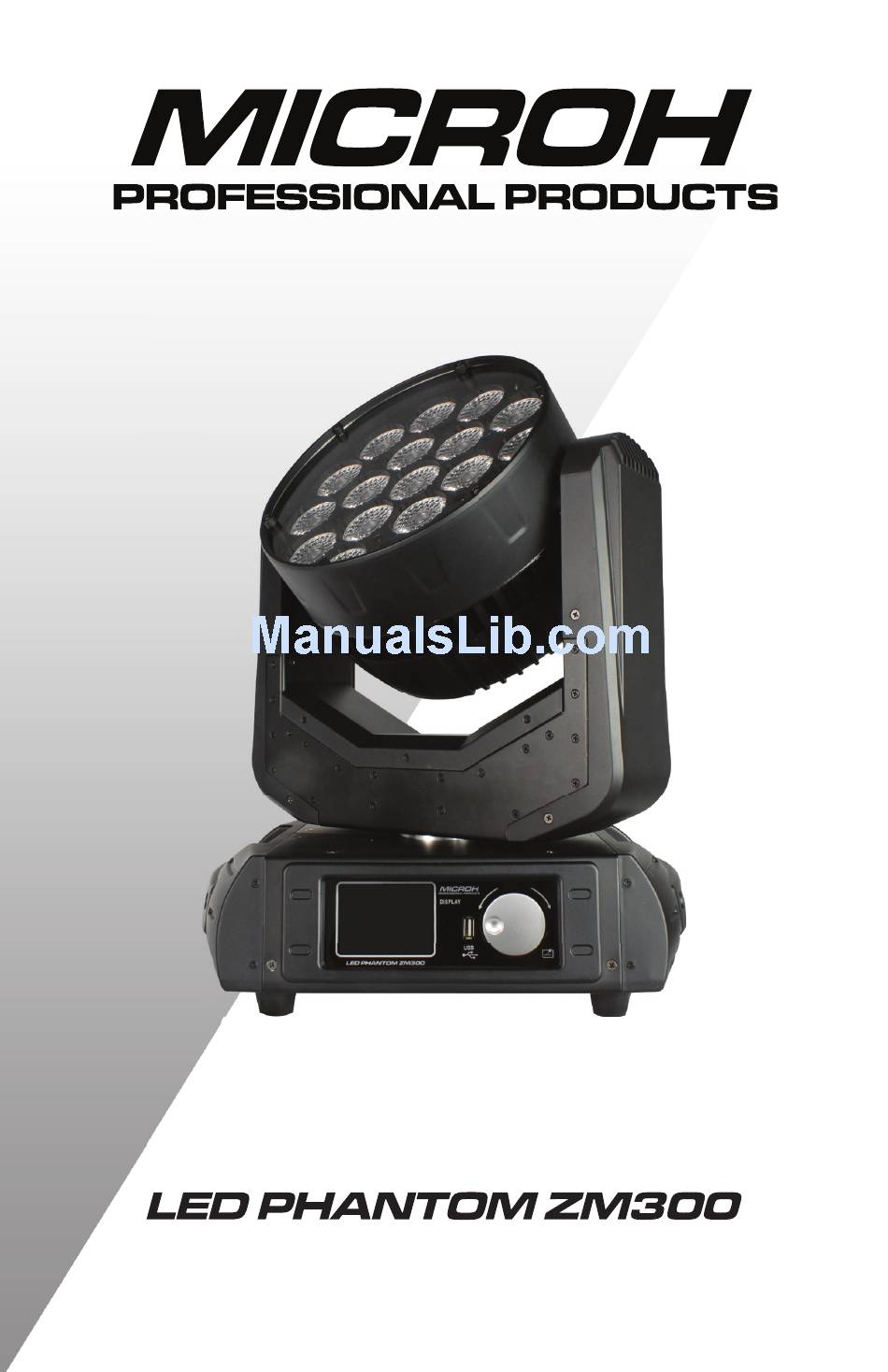

Page 1: User Manual

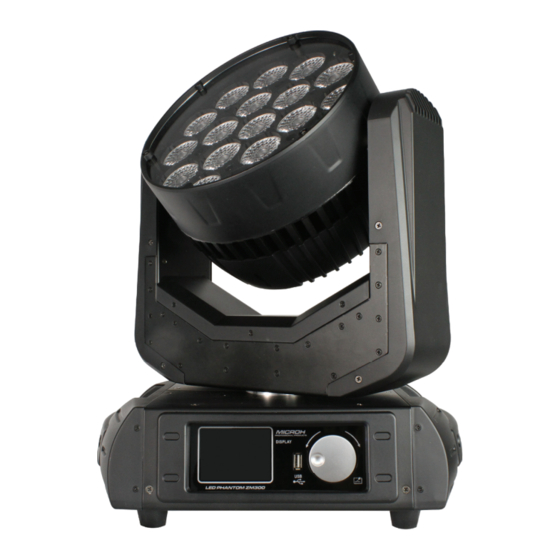

www.microhpro.com USER MANUAL Please read this user manual before using this product... - Page 3 Introduction Thank you for purchasing the MICROH LED PHANTOM ZM300. For your own safety and knowledge, please read this manual before installing or operating this device. This manual covers the important information on installation and applications. Please install and operate the fixture according to instructions.
-
Page 4: Safety Warning
Safety Warning • Every person involved with the installation, operation and maintenance of this device must be qualified. • User/installer must follow the instructions of this manual. • Unqualified persons must not open the housing cover and operate the device, or the dealer will not accept liability for any resulting defects or problems. -
Page 5: Operation
Operation The equipment must be operated by professionals; Make sure that the voltage of power supply must comply with the voltage identified on the lamp, and must have an overload or leakage electrical protection. ATTENTION! The equipment directly connected to the power supply, Don’t connect to the silicon box color system, otherwise it will damage the equipment. -
Page 6: Operation Menu
Operation Menu Address DMX Address number set 001-512 Transfer Rate Data Signal Quality 100% Start Code Fixed ID set 0-4096 Return Special White Balance Open White Balance Red (0-100%) 0-255 White Balance Green (0-100%) 0-255 White Balance Blue (0-100%) 0-255 White Balance White (0-100%) 0-255 Dim mode... - Page 7 Operation Menu (cont.) InfoSee (cont.) Touch Screen_Control Vtft.01 (software version) XY_Control (software version) LED_Control (software version) Return Control Ch001 (25%) 64 Ch002 (50%) 127 Ch003 (100%) 255 Ch118 (25%) 64 Ch119 (50%) 127 Ch120 (100%) 255 Display ShowReve Natu Revl Language Chin Engh...
-
Page 8: Mounting And Installing
Regardless of the rigging option you choose for your MICROH LED PHANTOM ZM300 fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable hanging bracket. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. -
Page 9: Dmx -512 Control Connections
DMX -512 Control Connections This fi xture complies with international USITT DMX standards and can be used with a 3 pin DMX connector. Plug in the 3 pin XLR cable to the female 3 pin XLR output of your controller and the other side to the male 3 pin XLR input of the fi xture. - Page 10 DMX Control Channel Mode 3 Channel Modes • Simple Mode (21CH) • Standard Mode (35CH) • Extended Mode (97CH) Simple Standard Extended Value Description CH 01 CH 01 CH 01 000-255 Red (Darkest-Brightest) CH 02 CH 02 CH 02 000-255 Red Fine CH 03 CH 03...
- Page 11 Simple Standard Extended Value Description CH 10 CH 10 CH 10 065-067 Light Pink (cont.) (cont.) (cont.) 068-070 Pink Carnation 071-073 Light Rose 074-076 Light Amber 077-079 Middle Pink 080-082 Dark Amber 083-085 Straw 086-088 Light Orange 089-091 Green 092-094 Sky Blue 095-097 Lavender...
- Page 12 Simple Standard Extended Value Description CH 10 CH 10 CH 10 185-187 (cont.) (cont.) (cont.) 188-208 Purple 209-214 215-217 White 218-229 230-232 White 233-244 245-255 White CH 11 CH 11 CH 11 Strobe 000-003 004-103 Strobe (fast to slow) 104-107 Shutter Open 108-207 Strobe Pulse (fast to slow)
- Page 13 Simple Standard Extended Value Description CH 21 CH 21 CH 21 000-255 LED graphic display CH 22 000-255 Auto-Program selection CH 23 000-255 Auto-Program speed setting CH 24 000-255 Auto-Program fade-in CH 25 000-255 Auto-Program Red CH 26 000-255 Auto-Program Green CH 27 000-255 Auto-Program Blue...
-
Page 14: Specifications
Features • Strobe and Rainbow effects • Built in temperature detection • Quality lens with focusing • 2.8 inch touch screen display Specifications Lamp/LED 19 x 15W 4 in 1 LEDs (RGBW) Power input 100-240V, 50/60Hz Power Consumption 400W Power connection Powercon In &... -
Page 15: Maintenance And Cleaning
Never use alcohol solvents. There are no serviceable parts inside the device. Please refer to the instructions under “Installation Instructions.” Should you need any spare parts, please order genuine MICROH parts from your local dealer. CAUTION! Take care using this equipment! High voltage risk of electric shock! - Page 16 For more information please contact: www.microhpro.com info@microhpro.com 905.428.9062...
