Summary of Contents for Chauvet Well Flex

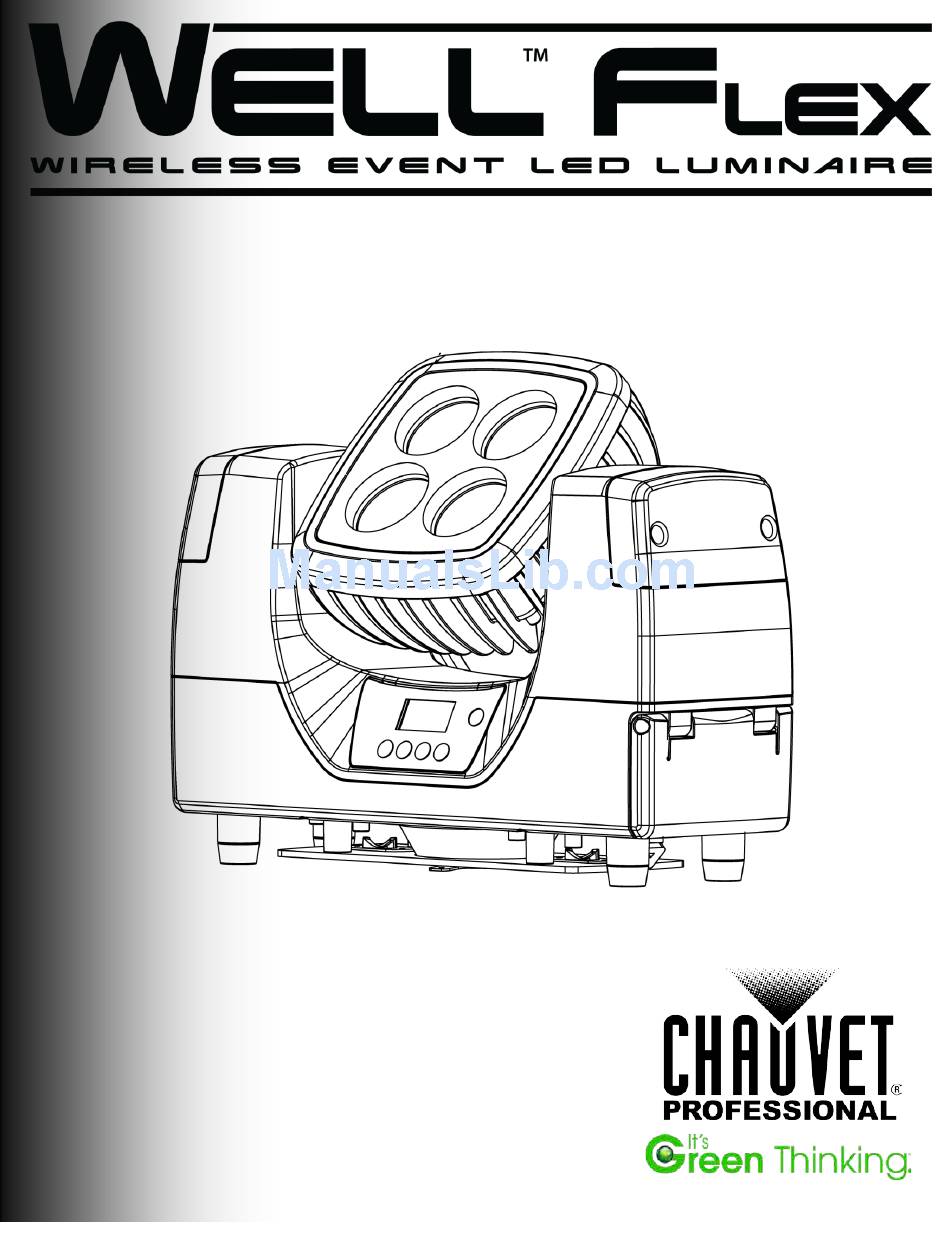

  • Page 1 User Manual...
  • Page 2 Copyright Notice Chauvet owns the content of this User Manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2015 Chauvet. All rights reserved.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product At A Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting And Rigging ..................................
  • Page 4 Table of Contents LED Test ....................................14 Configuration (DMX) ..............................15 DMX Personalities ..................................15 DMX Control....................................15 Wireless Settings ..................................15 DMX Values ................................16 DMX Values (Cont.) ..............................17 5. Technical Information ..........................18 Product Maintenance ..............................18 6.
  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.
  • Page 6: Product At A Glance

    This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.
  • Page 7: Introduction

    Introduction 2. I NTRODUCTION The WELL™ Flex is a 4- LED (quad-color RGBW) battery-powered wash product. It includes a Description lightweight body, tough frame, quick charging time, and endurance battery. The WELL™ Flex runs on a 12 V battery capable of running for over 12 consecutive hours. The 5-pin DMX in and out ports come standard, as well as a pre-installed Wireless Solutions W-DMX™...
  • Page 8: Overview

    Introduction Overview Control Panel Mounting Plate Front View Case Charger Input Zoom Adjustment Rear View Power/Data Access Handle Panel Rubber feet Side View WELL™ Flex User Manual Rev. 1...
  • Page 9: Dimensions

    Introduction Dimensions 4.25 in 108 mm 9.85 in 250 mm 7.84 in 199 mm 12.28 in 312 mm WELL™ Flex User Manual Rev. 1...
  • Page 10: Setup

    The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the Chauvet website: http://www.chauvetlighting.com/download/. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.
  • Page 11: Dmx Linking

    If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download Primer from Chauvet website: http://www.chauvetlighting.com/download/. The Master/Slave mode allows a WELL™ Flex (the master) to control one or more WELL™ Master/Slave Flex’s (the slaves) without a DMX controller.
  • Page 12: Wireless Operation

    Setup The WELL™ Flex can operate in W-DMX™ mode up to 50 m (164 ft) from the Wireless W-DMX™ transmitter. The W-DMX™ receiver in the WELL™ Flex must be paired with the Operation W-DMX™ transmitter for wireless operation. 1. Turn the W-DMX™ transmitter on. Initial Setup 2.
  • Page 13: Mounting

    Use at least one mounting point per product. For our Chauvet line of mounting clamps, go to http://trusst.com/products/. You may also choose to simply set the WELL™ Flex on the floor using the rubber feet on the bottom of...
  • Page 14: Operation

    Operation 4. O PERATION Control Panel Button Function Description <ON/OFF> Press and hold to turn product on or off <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP>...
  • Page 15: Menu Map

    Operation Menu Map Main Level Programming Levels Description Auto Show Auto 0–4 Speed 0–100 Automatic programs and speed Green Blue White Green/Blue Red/Blue Red/Green Fixed Color Red/Green/Blue Red/White Static Green/White Blue/White Red/Green/White Red/Blue/White Green/Blue/White RGBW Red/Green/Blue/White Manual Combines red, green, blue, and white to make Value 0–255 Color...
  • Page 16: Menu Map (Cont.)

    Operation Menu Map (Cont.) Main Level Programming Levels Description Selects DMX address (highest channel DMX Address 001–512 restricted to personality chosen) 4 Ch 4-channel: RGBW control 6 Ch 6-channel: RGBW control, dimmer, and strobe 10-channel: RGBW control, dimmer, strobe, DMX Channel 10Ch color macro/white balance, auto programs, auto speed, dimmer speed...
  • Page 17: Configuration (Standalone)

    Operation Use standalone configuration to operate the product without a DMX controller. Configuration (Standalone) Automatic Automatic programs allow for dynamic RGBW color mixing without a DMX controller. 1. Go to the Auto Show main level. Programs 2. Select the desired automatic (Auto 0–4) program. 3.
  • Page 18: Dimmer Profiles

    Operation Dimmer Profiles This setting determines how fast the output of the WELL™ Flex changes when you modify the values of the red, green, blue, white, and dimmer faders. This setting provides three different options to simulate the dimming curve of an incandescent lighting product. 1.
  • Page 19: Configuration (Dmx)

    Operation Use DMX configurations to operate the product with a DMX controller. Configuration (DMX) This setting allows you to choose a particular DMX personality. 1. Go to the DMX Channel main level. Personalities 2. Select the desired personality (4 Ch, 6 Ch, 10Ch, HSI, or HSV). ·...
  • Page 20: Dmx Values

    Operation DMX Values 10Ch Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% White 000 ó 010 No function Strobe 011 ó 255 Slow to fast 000 ó...
  • Page 21: Dmx Values (Cont.)

    Operation DMX Values (Cont.) 6 Ch Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% White 000 ó 010 No function Strobe 011 ó...
  • Page 22: Technical Information

    Technical Information 5. T ECHNICAL NFORMATION To maintain optimum performance and minimize wear, you should clean this product frequently. Product Usage and environment are contributing factors in determining the cleaning frequency. Maintenance As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating.
  • Page 23: Technical Specifications

    Technical Specifications 6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 4.25 in (108 mm) 12.28 in (312 mm) 9.85 in (250 mm) 12 lb (5.4 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection...
  • Page 24: Returns

    Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.
  • Page 25: Contact Us

    Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 World Wide Web www.chauvetlighting.com Toll free:(800) 762-1084 UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address:Unit 1C Email: uktech@chauvetlighting.com Brookhill Road Industrial Estate Pinxton, Nottingham, UK World Wide Web www.chauvetlighting.co.uk...
