Chauvet 4BAR Tri User Manual

Green thinking 4bar tri
Hide thumbs Also See for 4BAR Tri:
Table of Contents

Advertisement

Quick Links

See also: User Manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet 4BAR Tri

Summary of Contents for Chauvet 4BAR Tri

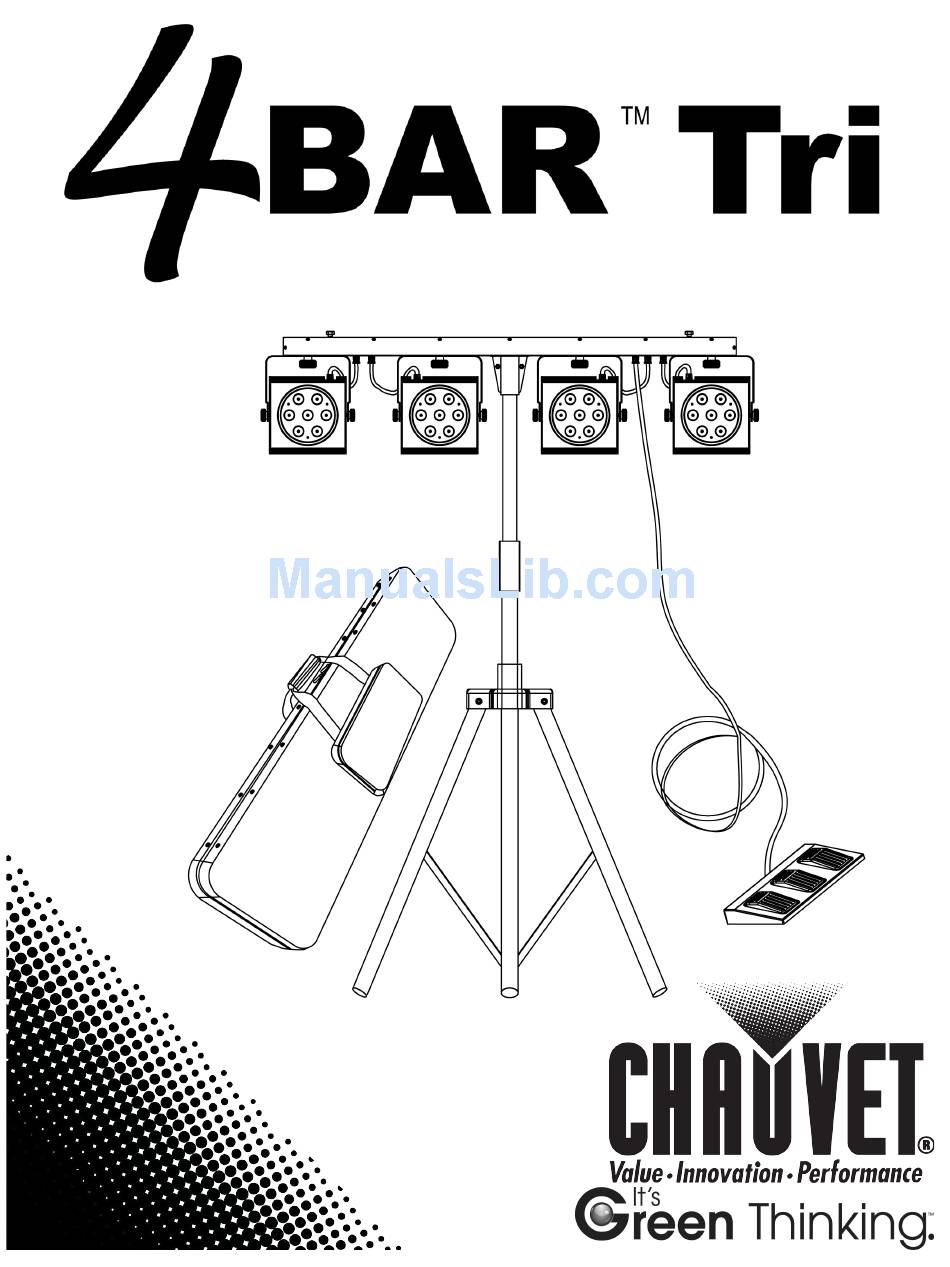

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ......................... 3 Unpacking Instructions ........................ 3 Claims ..............................3 Text Conventions ........................3 Symbols ............................3 Disclaimer ........................... 3 Product at a Glance ........................4 Safety Notes ..........................4 2.

  • Page 3: Before You Begin

    Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention...

  • Page 4: Product At A Glance

    Product at a Use on Dimmer Auto Programs   Glance Outdoor Use Auto-ranging Power Supply   Sound Activated Replaceable Fuse   User Serviceable   Master/Slave Duty Cycle   Safety Notes These notes include important information about mounting, usage, and maintenance; read before using the product.

  • Page 5: Introduction

    2. I NTRODUCTION Overview DMX In/Out Power In/Out Sound Sensitivity LED Display Adjustment Knob Fuse Holder Microphone Back Panel View Clamp Hanging Bolts Pan Angle Adjustment Knobs (4) Footswitch Connection Tripod Insertion Point Tilt Angle Adjustment Knob Front View Dimensions 4BAR™...

  • Page 6: Setup

    3. S ETUP AC Power The 4BAR™ Tri has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 7: Power Linking

    The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region.

  • Page 8: Mounting

    Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The 4BAR™ Tri may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.

  • Page 9: Operation

    4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function <MENU> Selects an operation mode or to backs out of the current menu option <UP> Scrolls up the list of options or selects a higher value <DOWN>...

  • Page 10: Dmx Channel Modes, Assignments, And Values

    DMX Channel Modes, Assignments, and Values 15-CH Channel Function Value Setting 000  009 RGB color-mixing mode 010  029 Automatic 1 030  049 Automatic 2 050  069 Automatic 3 070  089 Automatic 4 090  109 Automatic 5 110 ...

  • Page 11: Standalone

    Standalone Set the product in one of the standalone modes to control without a DMX controller. Connect the product to a suitable power outlet. Configuration Turn the product on. Never connect a product that is operating in any standalone mode (Sound-Active, Automatic, Master/Slave) to a DMX daisy chain connected to a DMX controller.

  • Page 12: Footswitch Operation

    Footswitch The included footswitch provides quick access to preset colors, color-change programs, and sound-activation through the 4BAR™ Tri microphone. Operation To use the footswitch: Power the product on. Connect the footswitch to the 4BAR™ Tri with the 4-pin connection cable with plug. Press pedal #1 (Preset) to activate control.

  • Page 13: Technical Information

    5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean the product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency.

  • Page 14: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 48 in (1,129 mm) 2.2 in (55 mm) 11.2 in (285 mm) 31 lbs (14.1 kg) Stand Height Adjustable: 59~91 in Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range...

  • Page 15: Returns

    U.S., United Kingdom, or Ireland. Outside the U.S., United Kingdom, or Ireland, contact your distributor and follow their instructions on how to return CHAUVET® products to them. Visit our website for contact details. Returns Call the corresponding CHAUVET® Technical Support office and request a Return Merchandise Authorization (RMA) number before shipping the product.
