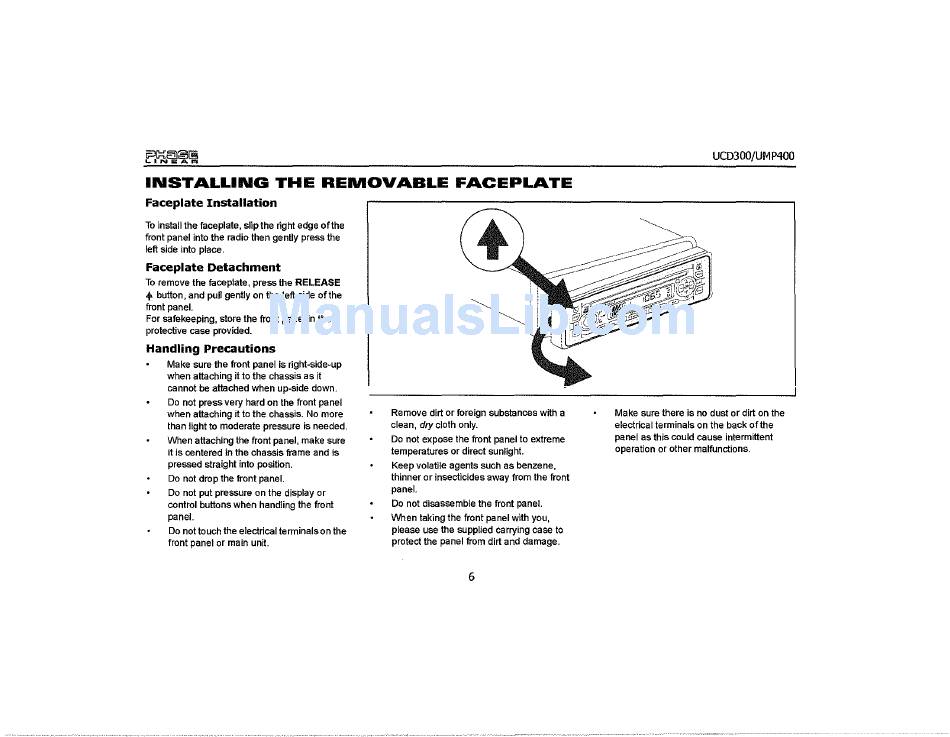

INSTALLING THE REMOVABLE FACEPLATE
Faceplate Installation
To install the faceplate, slip the right edge olthe
front panel into the radio then gently press the
left side into place.
Faceplate Detachment
To remove the faceplate, press the RELEASE
... button, and pull gently on the left side olthe
front panel.
For safekeeping, store the front panel in the
protective case provided.
Handling Precautions
Make sure the front panel is right-side-up
when attaching it to the chassis as it
cannot be attached when up-side down.
Do not press very hard on the front panel
when attaching it to the chassis. No more
than light to moderate pressure is needed.
When attaching the front panel, make sure
it is centered in the chassis frame and is
pressed straight into position.
Do not drop the front panel.
Do not put pressure on the display or
control buttons when handling the front
panel.
Do not touch the electrical terminatson the
front panel or main unit.
Remove dirt or foreign substances with a
clean,
dry
cloth only.
Do not expose the front panel to extreme
temperatures or direct sunlight.
Keep volatile agents such as benzene,
thinner or insecticides away from the front
panel.
Do not disassemble the front panel.
When taking the front panel w'lth you,
please use the supplied carrying case to
protect the panel from dirt and damage,
6
UCD300/UMP400
Make sure there is no dust or dirt on the
electrical terminals on the back ofthe
panel as this could cause intermittent
operation or other malfunctions,
